Centered Axle Panhard Bracket

Centered Axle Panhard Bracket

Three-Position Mount for Custom Track Bar Setups

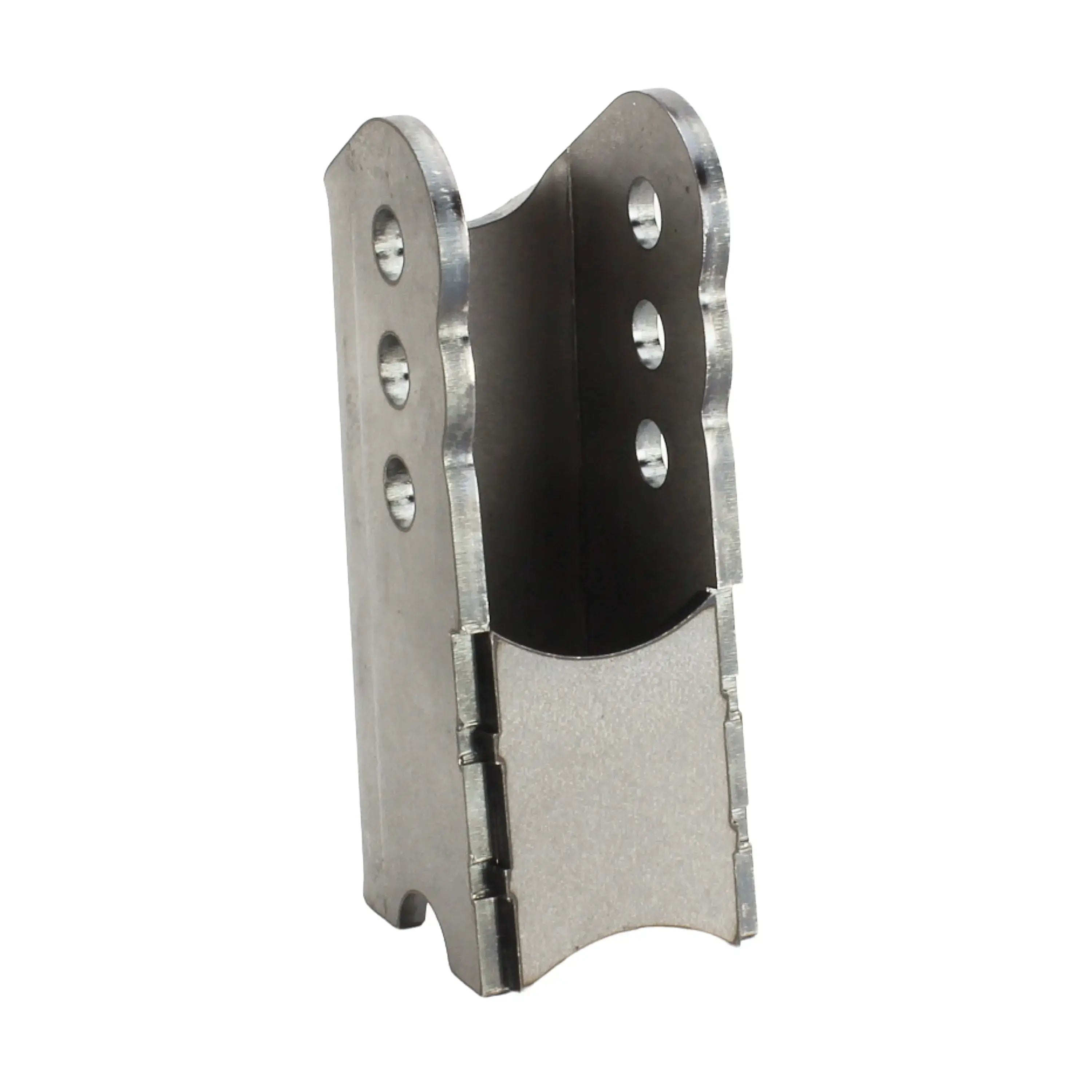

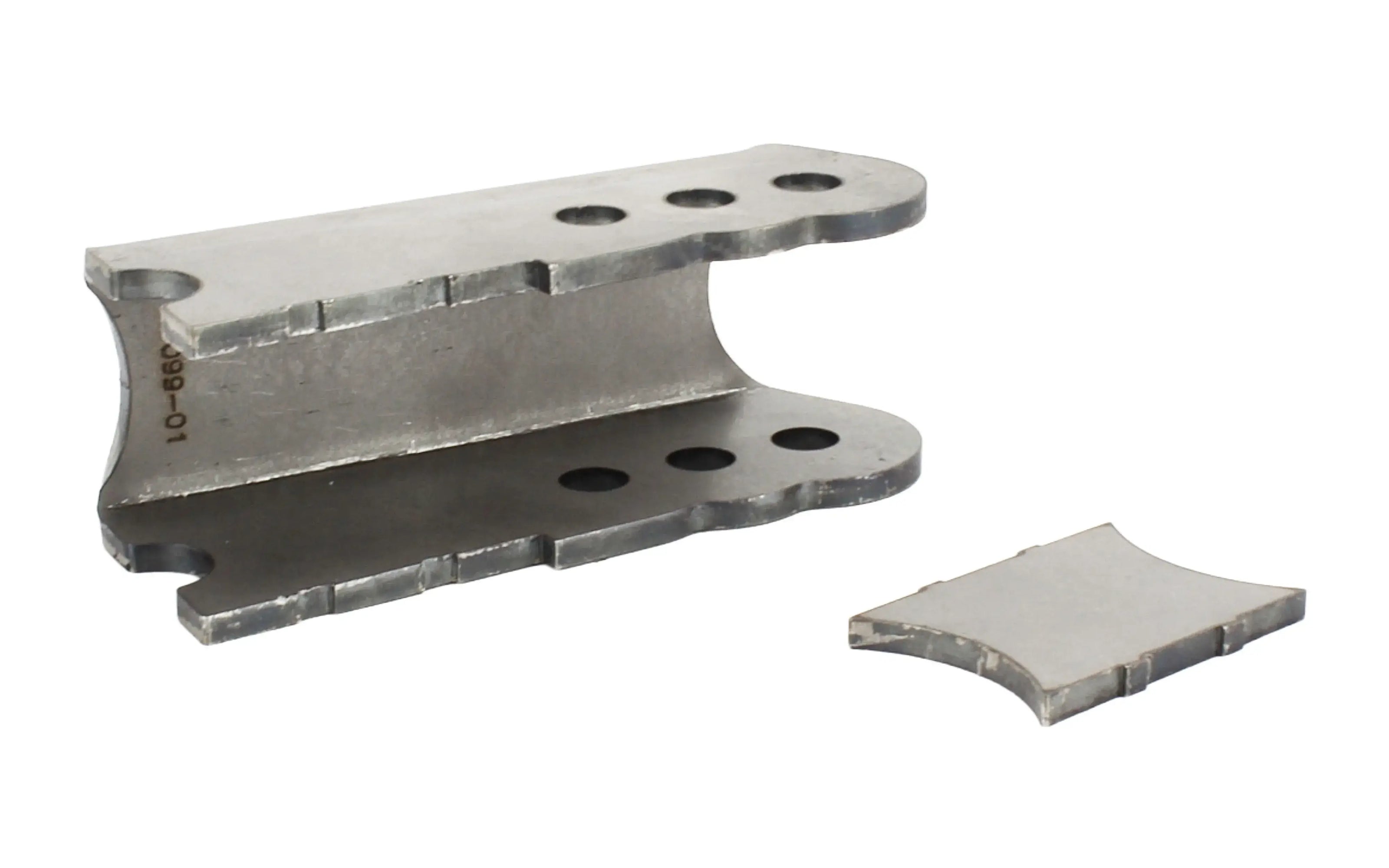

This centered axle panhard (track bar) bracket is built for strength and flexibility. Designed to fit a 3" axle tube, it’s made from 1/4" plate steel and comes with a weld-in reinforcement plate for added durability. The bracket features a 2" inside mounting width with 9/16" holes, and three vertical mounting positions at 3-7/8", 4-7/8", and 5-7/8" from the base—giving you options to fine-tune your suspension geometry.

Although cut for a 3" axle tube, the bracket can be modified to fit other axle sizes as needed. Perfect for builders looking for a reliable and adjustable track bar mount that won’t flex or fatigue under real-world trail use.

Key Features

• Part Number: PN1099
• Fits 3" axle tube (modification required for other sizes)
• 2" inside mounting width with 9/16" bolt holes
• Three vertical mounting heights: 3-7/8", 4-7/8", 5-7/8"
• Made from 1/4" plate steel
• Includes weld-in reinforcement plate
• Sold individually
