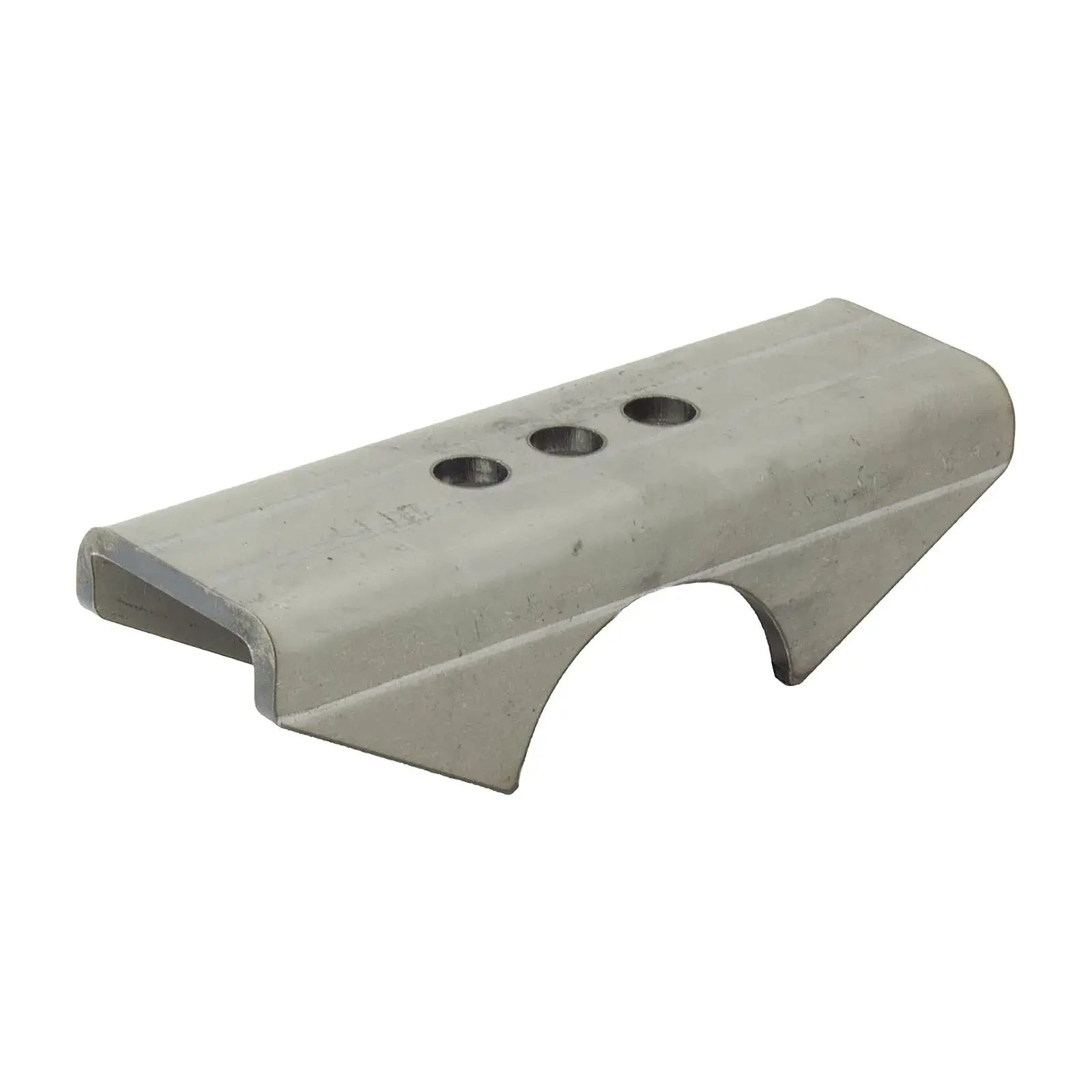

Dana 44 Spring Perches, 2.5" wide

Dana 44 Spring Perches, 2.5" Wide

Weld-On Leaf Spring Perches for 2.75" Axle Tubes

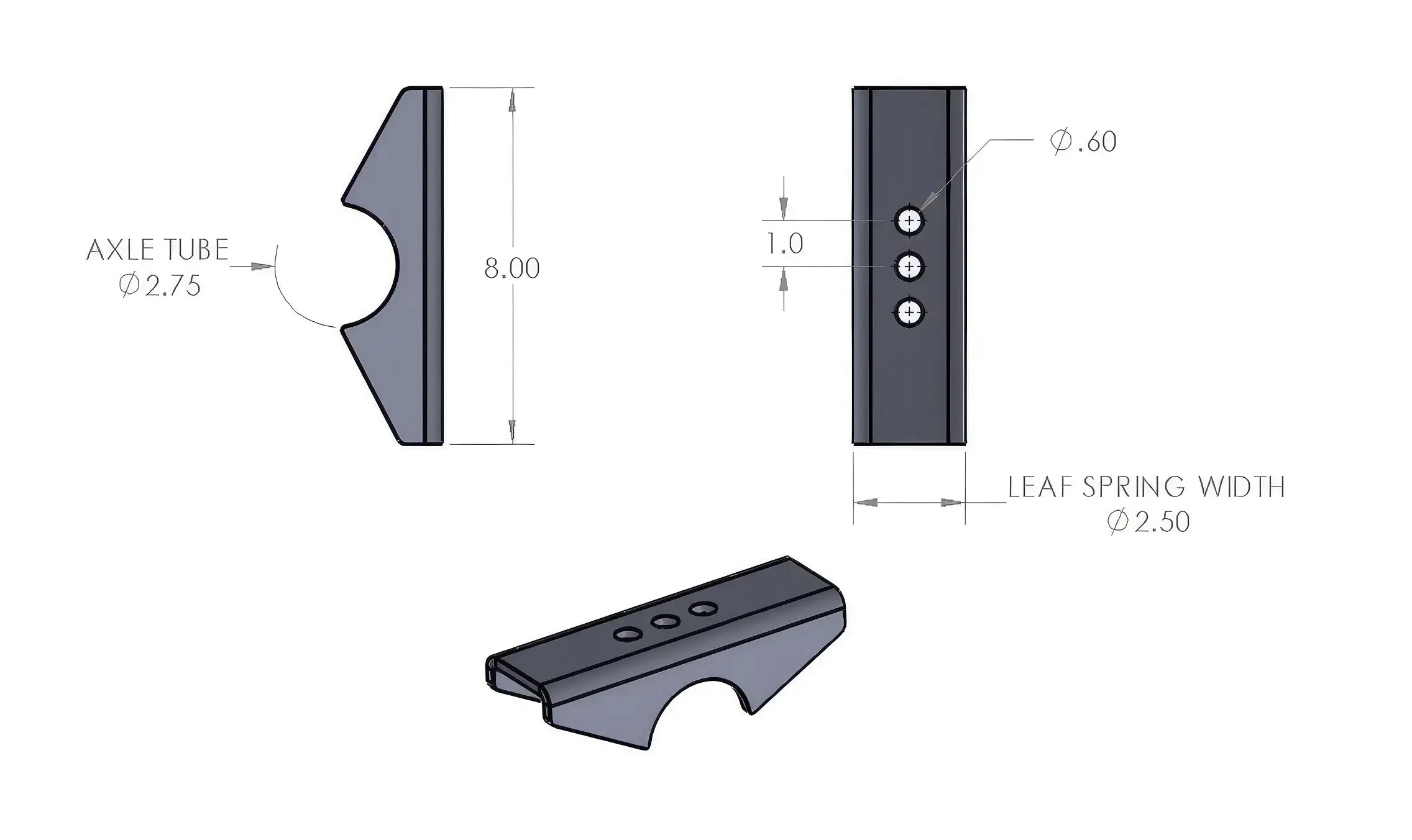

These spring perches are built for spring-over setups on Dana 44 axles with 2.75" axle tubes. Made from 1/4" HR P&O steel, CNC laser cut and brake-formed for accuracy. At 8" long, they help control axle wrap, and the 3 center pin locations allow for minor wheelbase adjustments. Easily modified with a grinder to fit axle tubes ±0.25" in diameter. Sold in pairs.

Key Features

• Part Number: PN1110
• Fits 2.75" axle tubes (Dana 44)
• 2.5" wide spring platform
• 8.0" long to reduce axle wrap
• Three spring pin mounting options
• Made from 1/4" HR P&O steel
• Sold in pairs

Kit Includes

• (2) Spring perches – 2.5" wide, cut for 2.75" axle tube

Note: Welding required. Make sure installation is done with proper tools and technique.
