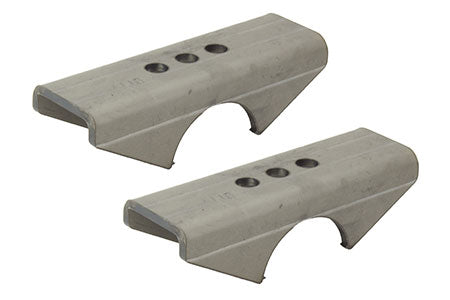

Standard Spring Perches, 3.0" Axle Tube 2.5" Wide

Standard Spring Perches, 3.0" Axle Tube 2.5" Wide

Precision-built perches for reliable spring mounting.

These CNC laser-cut spring perches provide a rock-solid foundation for your leaf spring setup. Built from 1/4" HR steel and precision-formed on a 290-ton brake, they deliver the strength and accuracy needed for serious off-road builds. The 8" length helps control axle wrap while three spring pin mounting options give you wheelbase adjustment flexibility.

Each perch is designed for 2.5" wide springs and fits 3.0" axle tubes perfectly. Can be easily adjusted up or down 0.25" for different tube sizes with a grinder. CNC laser cut for precision fitment and consistent quality.

Key Features

• Part Number: PN1110-D
• Fitment: 3.0" axle tubes with 2.5" springs
• Material: 1/4" HR steel, CNC laser cut

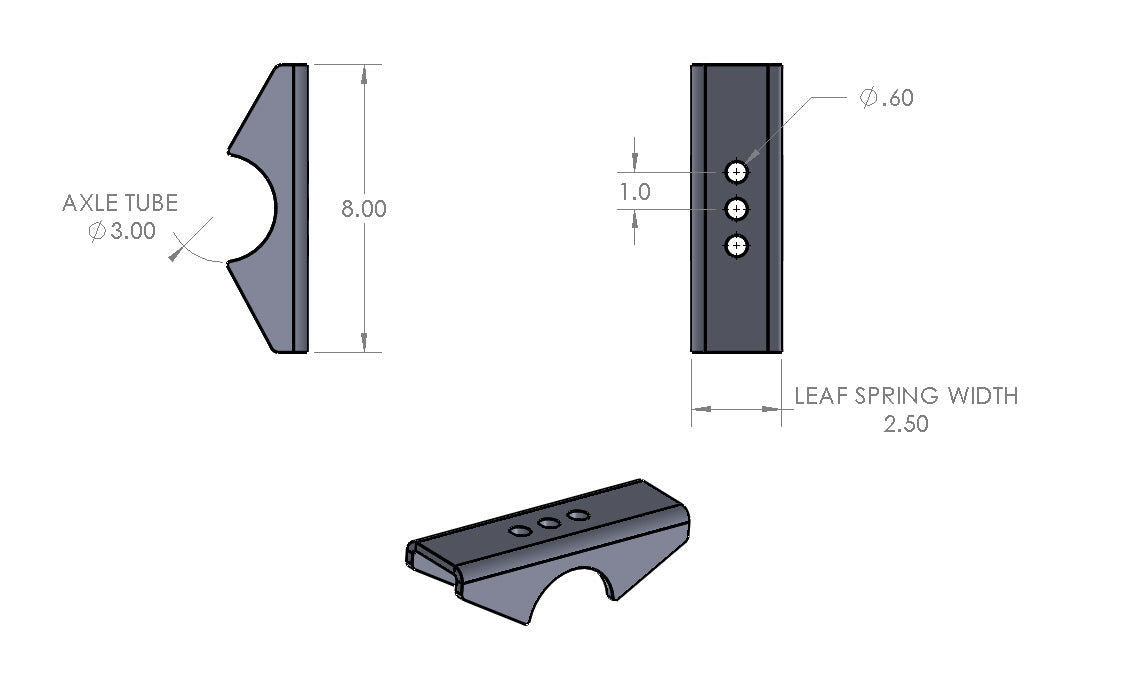

• Dimensions: 8" length, 2.5" width, 3.0" tube diameter
• Special design features: Three spring pin positions for wheelbase adjustment

What's Included

• 2x Spring perches (sold in pairs)

Notes

• For spring-over-axle applications
• Welding required for installation to axle tube
