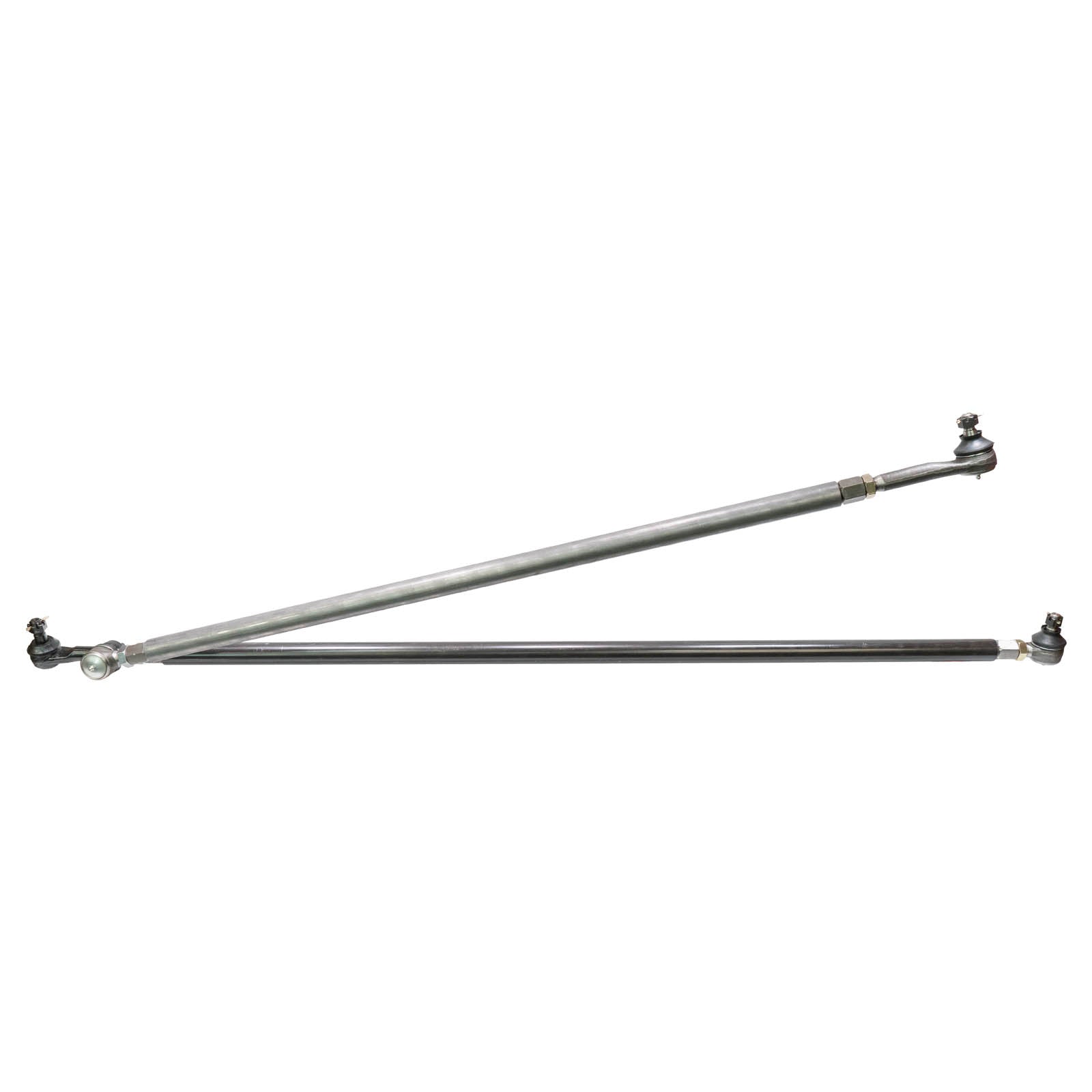

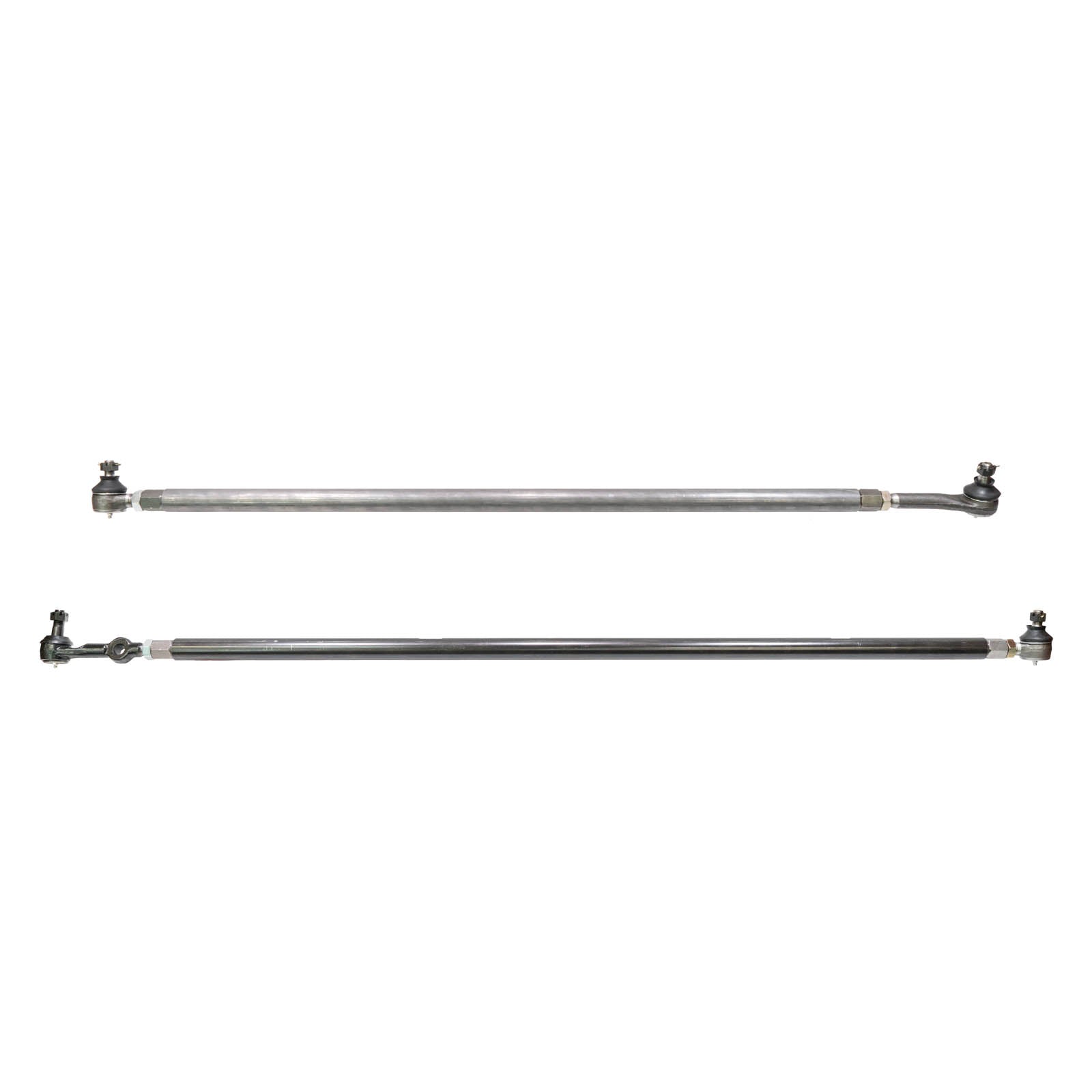

Y-Link Steering Using GM 1 Ton TRE

Y-Link Steering Using GM 1 Ton TRE

Bulletproof steering upgrade for serious off-road performance.

This heavy-duty Y-link steering system eliminates bump steer and provides rock-solid steering control for lifted vehicles. Built with GM 1-ton tie rod ends, this kit delivers the strength and reliability needed for aggressive off-road use while maintaining excellent on-road manners. Perfect for rigs running larger tires or those who demand maximum steering durability.

Features 1.5" x .25" DOM tubing construction with GM 1-ton tie rod ends for maximum strength and serviceability. The Y-link design provides optimal steering geometry for lifted applications while using readily available GM parts for easy maintenance.

Key Features

• Part Number: PN1305
• Fitment: Universal solid axle applications
• Material: 1.5" x .25" wall DOM tubing

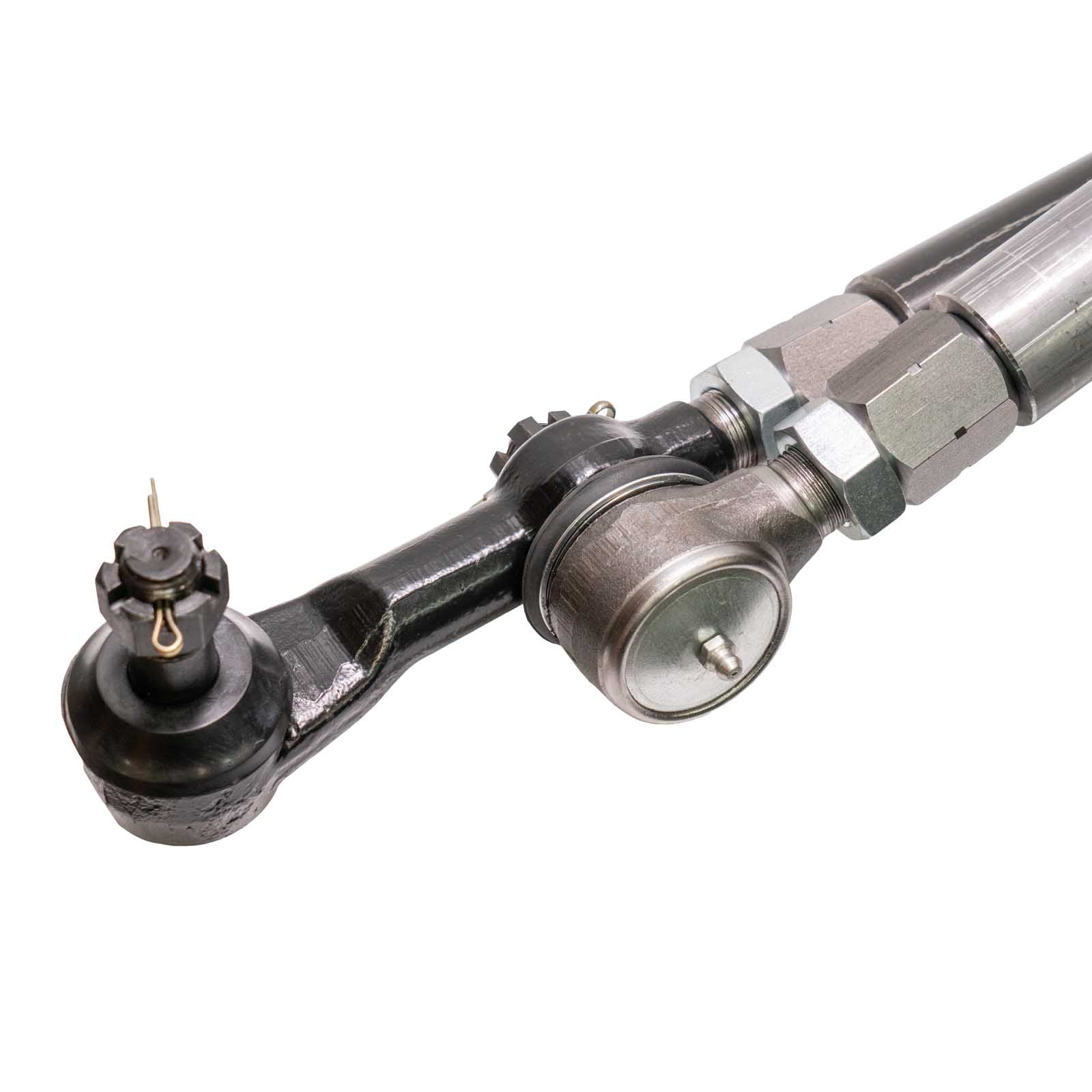

• Components: GM 1-ton tie rod ends, Y-link design
• Design: Eliminates bump steer, uses serviceable GM parts

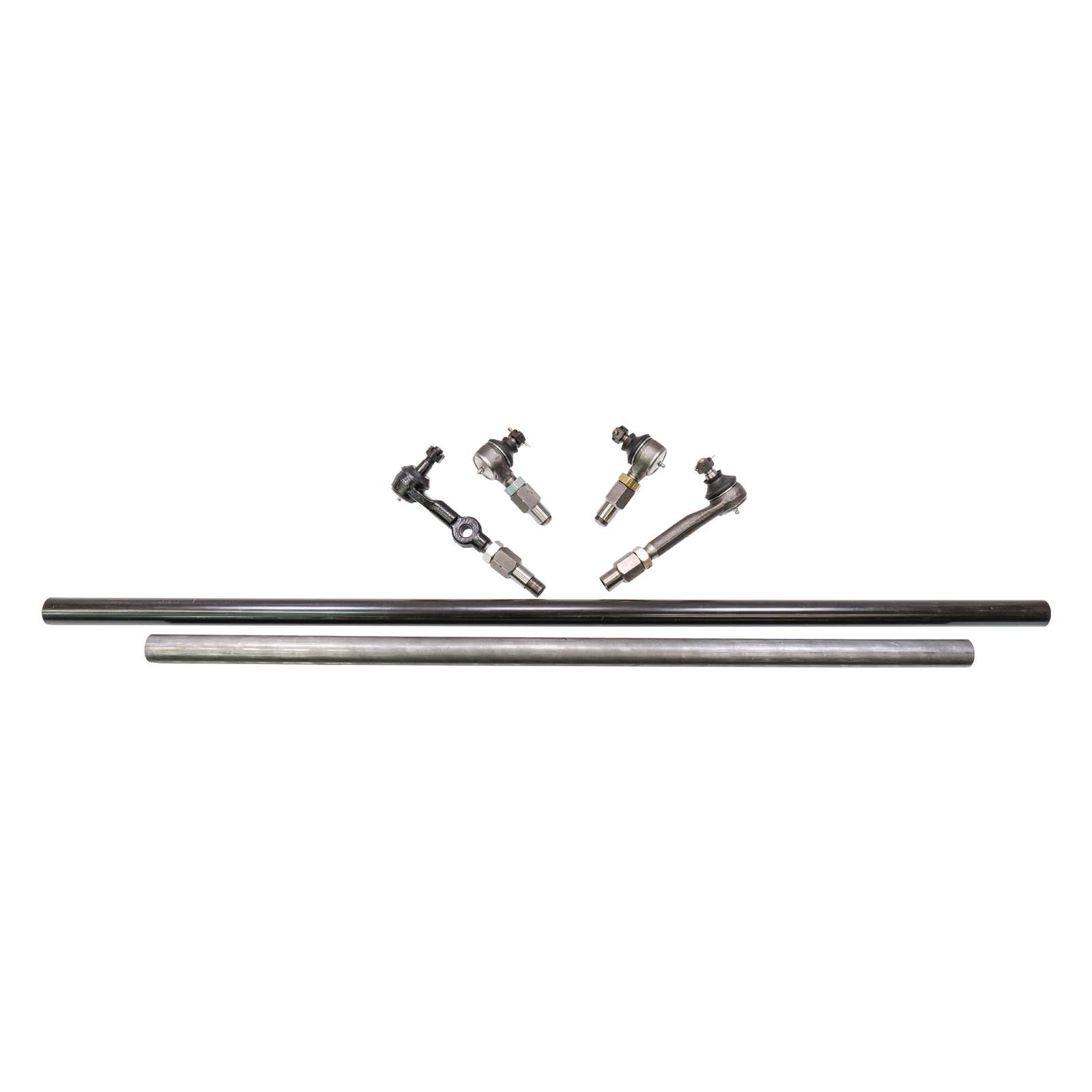

What's Included

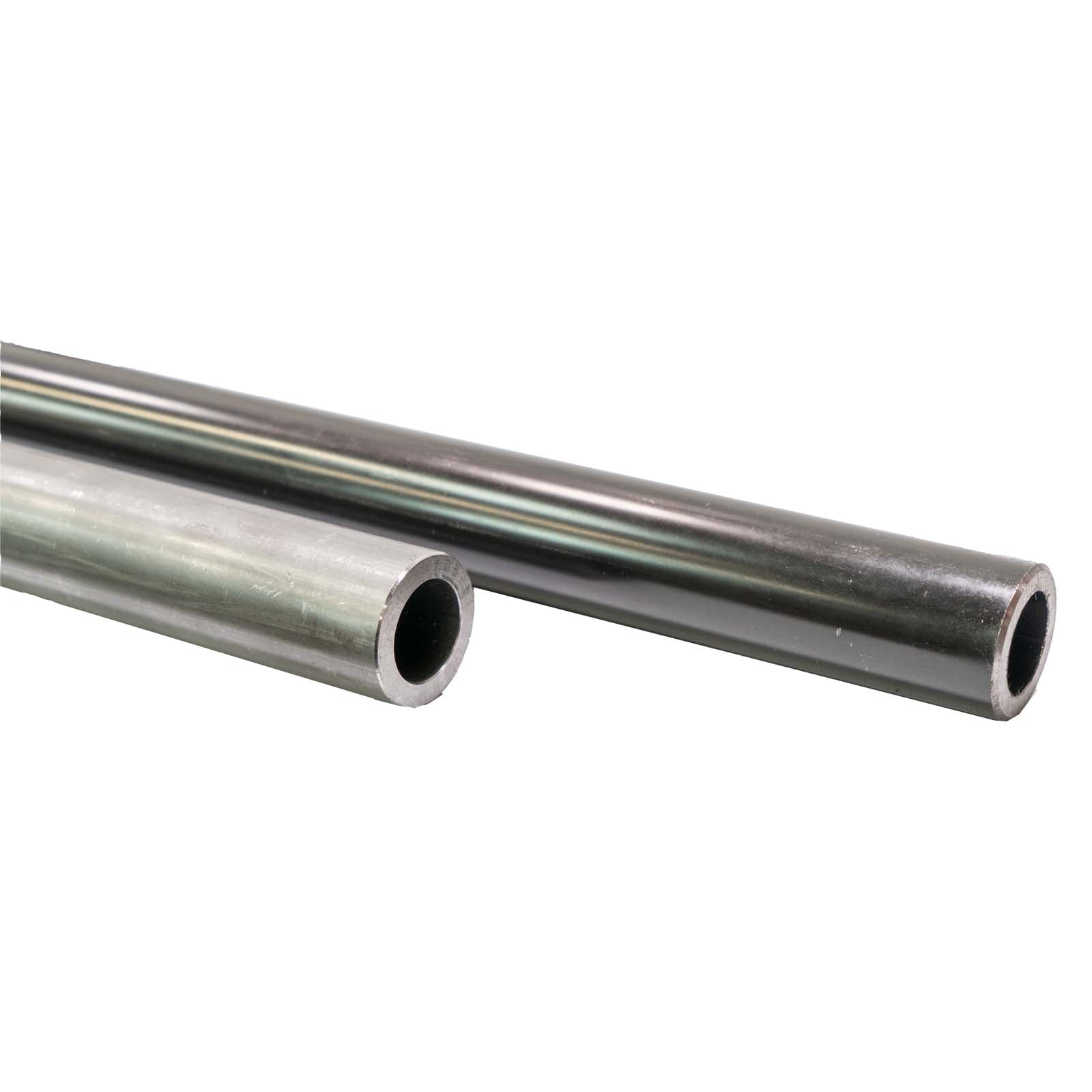

• 1x 43" length of 1.5"x.25" DOM
• 1x 54" length of 1.5"x.25" DOM

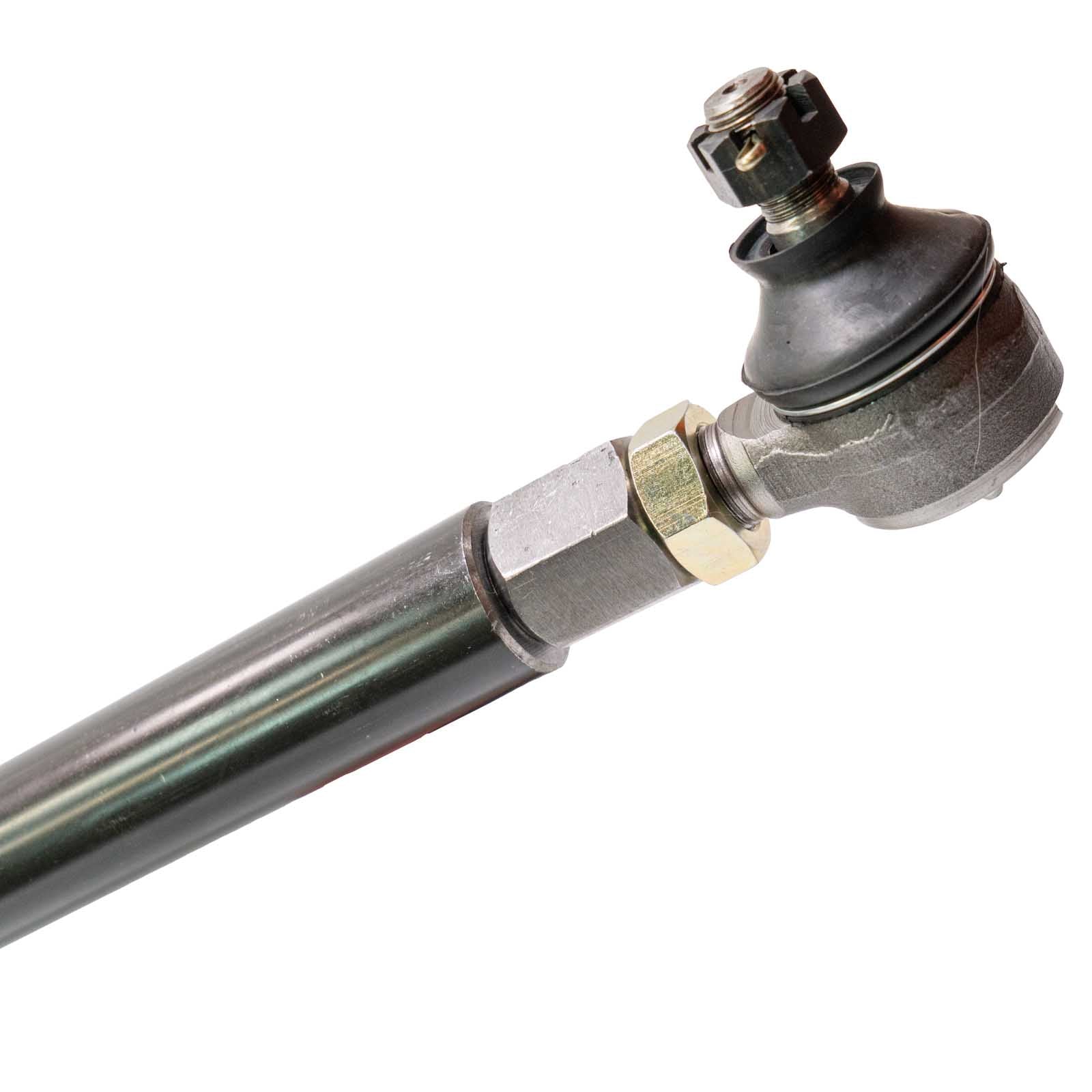

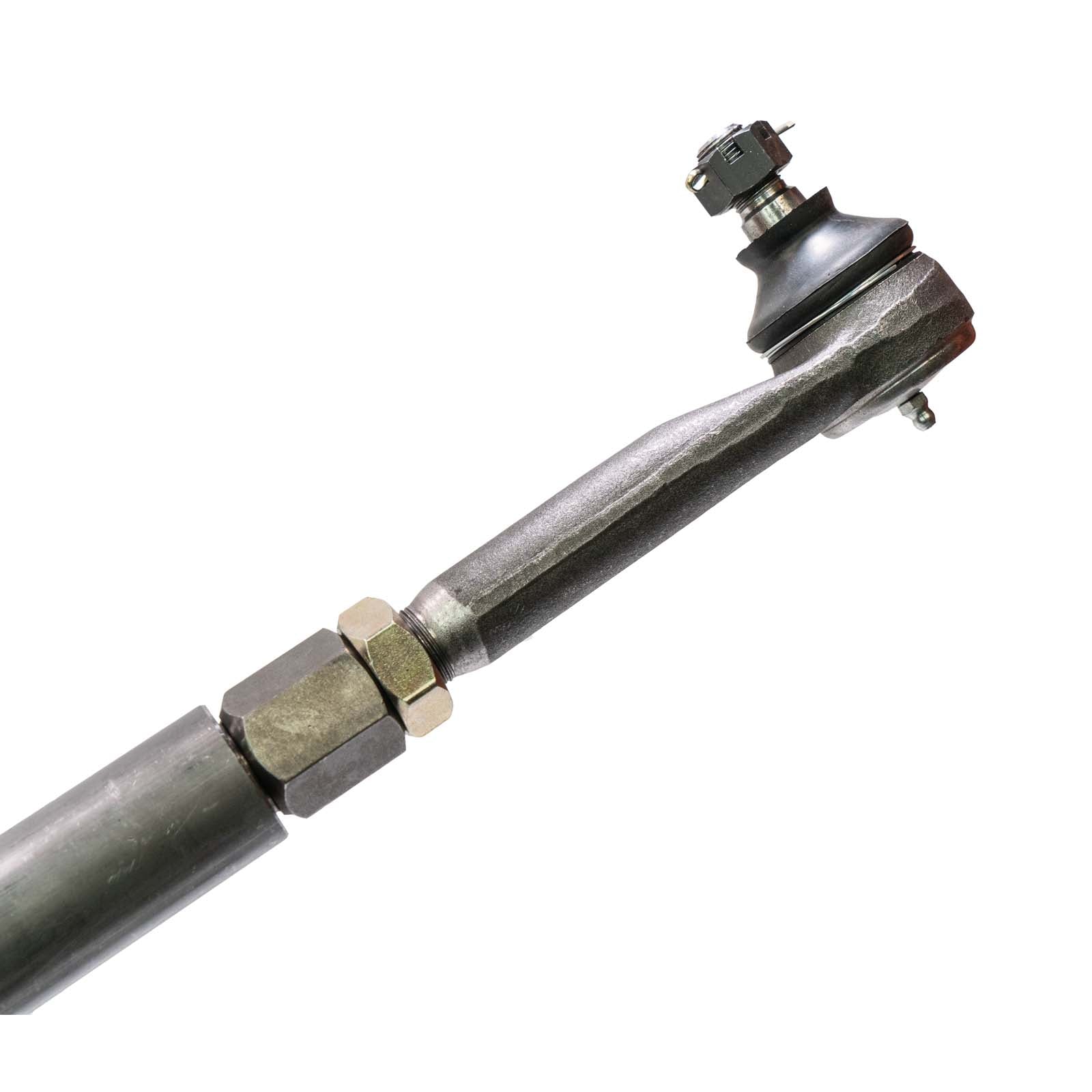

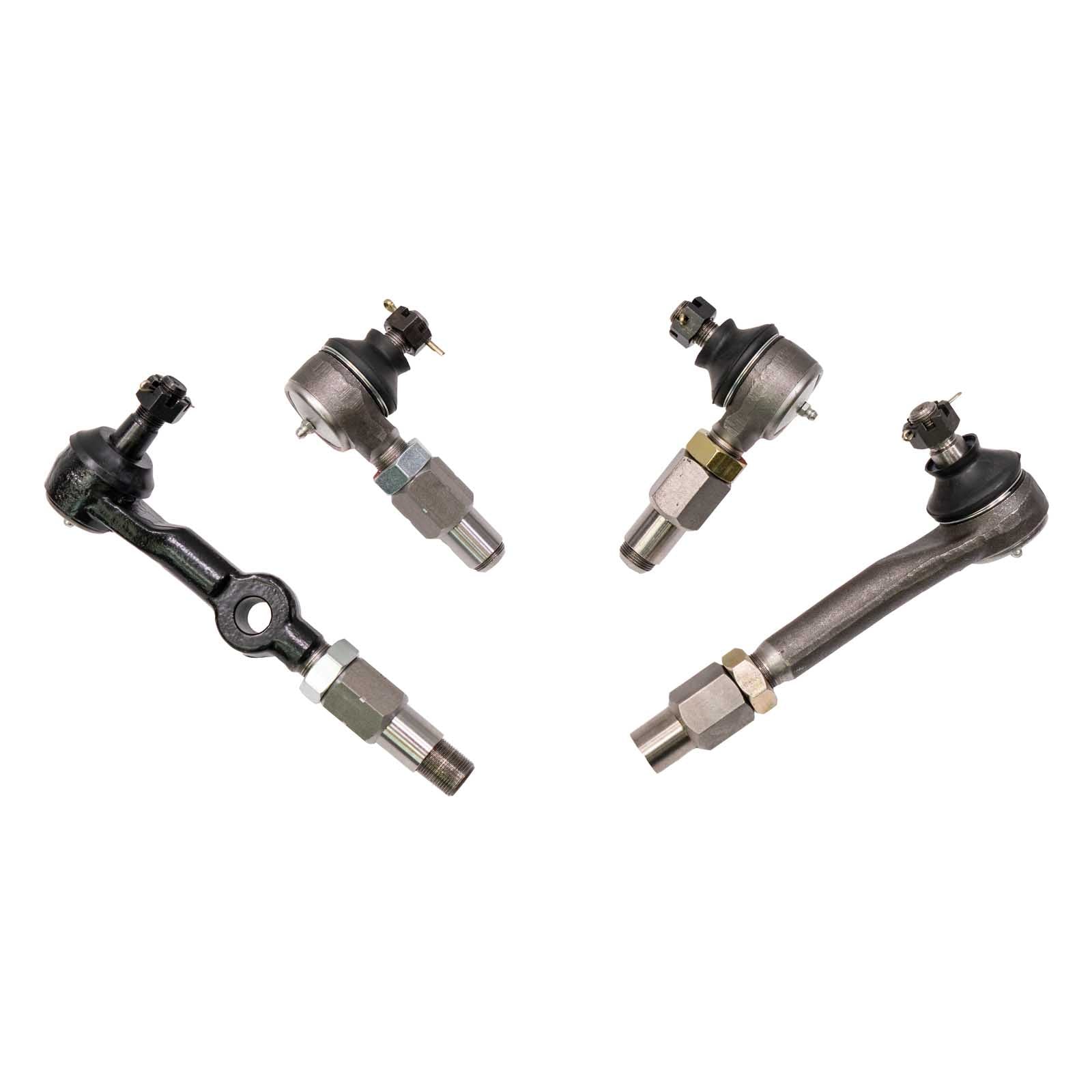

• 2x GM 1-ton tie rod ends
• 1x High angle 1-ton rod end
• 1x Y-link 1-ton rod end
• 4x Jam nuts
• x2 RH 7/8-18" tube adapters
• x2 LH 7/8-18" tube adapters

Notes

• Professional installation recommended due to steering system complexity
• Alignment required after installation
• GM parts available at most auto parts stores for easy service
