Complete DIY Rock Slider Kit with Tubing – 60" Length

This DIY rock slider kit is built for those who want strong, functional protection without needing a tube bender. Designed for 1.75" x .120 wall DOM tubing, it provides everything you need to build a 60" long slider setup that fits a wide range of vehicle platforms.

The kit includes pre-cut straight DOM tubing for both inner and outer rails, plus DOM frame legs, gussets, end caps, and frame plates. The design keeps the tubes 5.25" apart using 16" legs, with capped ends at a 45° angle. All parts come unwelded and are cut to cover both sides of the vehicle.

Key Features

• Part Number: PN2253-A
• Includes tubing to build 60" rock sliders
• Made from 1.75" x .120 wall DOM tubing throughout
• 3/16" end caps and gussets for strength
• Frame legs space tubes 5.25" apart
• Includes components for both sides of the vehicle
• Kit comes unwelded

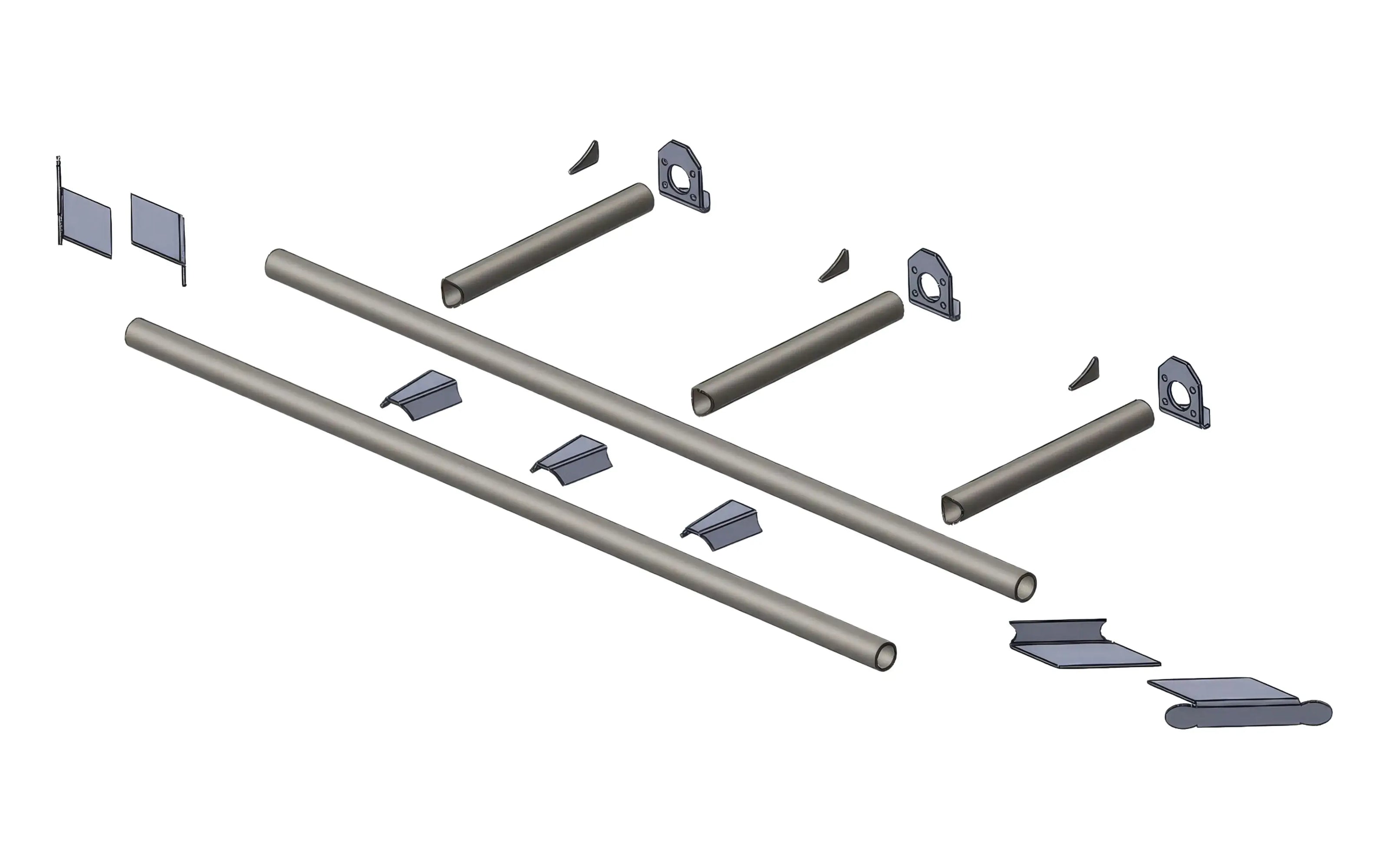

Kit Includes

• (4) 3/16" Slider End Cap Brackets
• (6) 3/16" Slider Inner Gussets
• (6) 1/4" Slider Frame Plates
• (6) 1/4" Slider Frame Plate Gussets
• (6) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes
• (2) 60" Long 1.75" x .120" Wall DOM Main Tubes
• (2) 50" Long 1.75" x .120" Wall DOM Main Tubes
