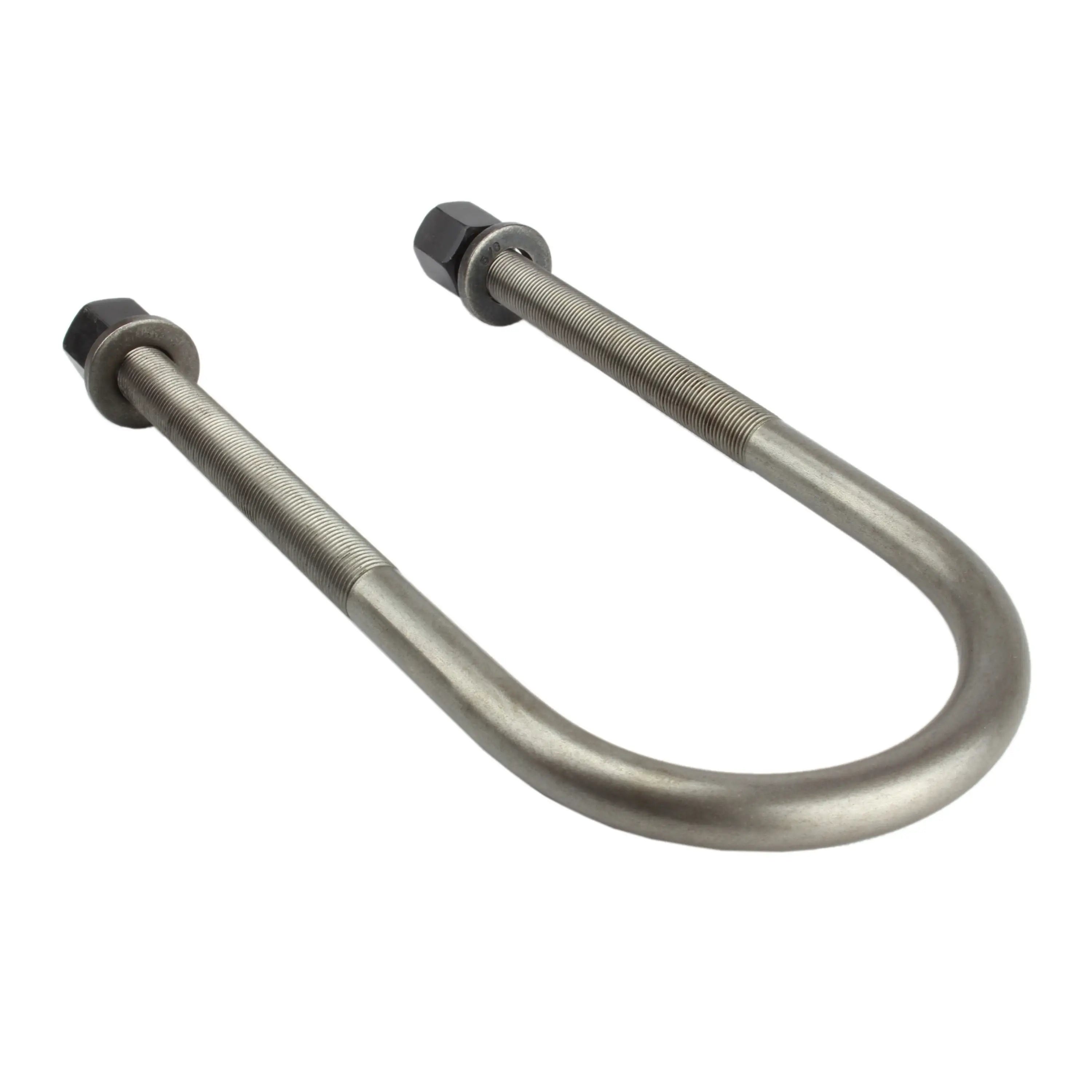

Long U-Bolt, 3 5/8" X 5/8" X 13"

Long U-Bolt, 3 5/8" x 5/8" x 13"

5/8" U-bolt for Dana 44 and 3 1/2" axle tubes.

This long U-bolt is designed for the pumpkin side of a Dana 44 or any axle with a 3 1/2" diameter tube. It uses 5/8" (.625) rolled threads for added strength and includes 5" of thread length to ensure proper fitment on spring-under setups. Extra thread can be trimmed after installation.

Made from Grade 8 material, these U-bolts are built for strength and durability. They come with the correct hardware for installation, and our U-bolt plates are designed around 5/8" hardware. Drilling may be required for proper fitment. Sold individually, so order the correct quantity for your axle.

Key Features

• Part Number: PN2601
• Fits Dana 44 pumpkin side and 3 1/2" axle tubes
• 5/8" (.625) rolled threads for maximum strength
• 5" of thread length for spring-under setups
• Grade 8 material for strength and reliability

What's Included

• (1) Long U-bolt – 3 5/8" x 5/8" x 13"
• (2) U Bolt Nuts 5/8"-18 TPI
• (2) U Bolt Washer 5/8"

Notes

• U-bolts are sold individually—order the correct quantity for your axle.
• If the U-bolt does not fit your plate, drill the plate holes to 5/8".
• Cut excess thread length after installation.
