3/4 x 5/8 Rod End Kit

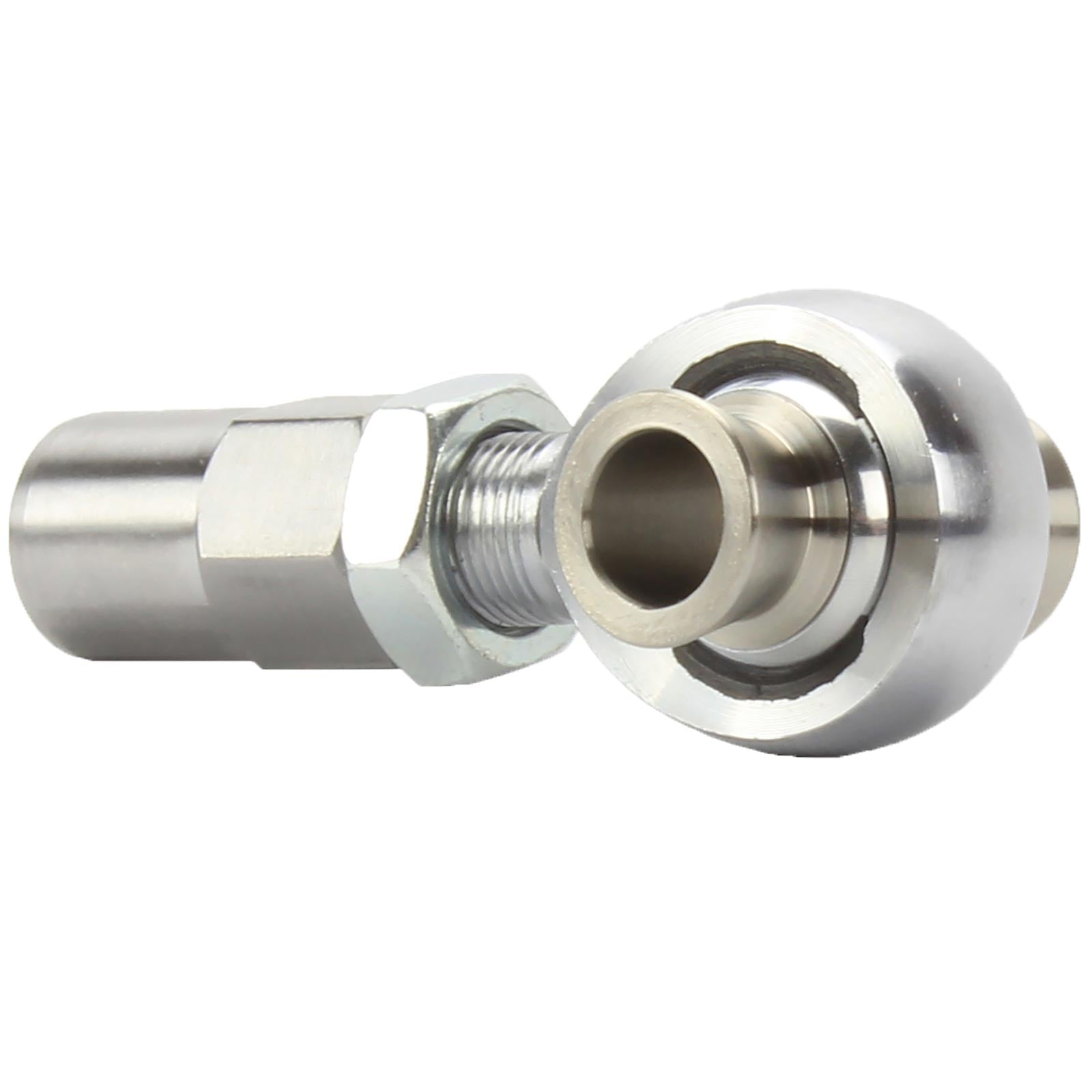

3/4" x 5/8" Rod End Kit – Left Hand Thread Only

Compact rod end setup for tight builds

This 3/4" x 5/8" rod end kit includes everything you need to build a compact, high-strength suspension or steering link in tight quarters. Built around a heat-treated chromoly Heim joint with a 5/8" bore and left-hand thread, it's ideal for lightweight or mid-size link setups. With a 1" ID tube adapter and stainless misalignment spacers for 1.5" brackets, this setup is ready to weld and wheel. Only left-hand thread available—once they're gone, they're gone.

Key Features

• Part Number: 34x58
• Bore Size: 5/8"
• Shank Size: 3/4"-16 TPI
• Material: Heat-treated chromoly Heim joint, stainless misalignment spacers
• Application: Ideal for light- to mid-duty suspension and steering links
• Designed for use with 1.0" ID tubing

What's Included in This Kit

• 1 – 3/4" x 5/8" bore LH heat-treated chromoly Heim joint
• 1 – 3/4" LH weld-in tube adapter (fits 1" ID tubing)
• 1 – 3/4" LH zinc-plated jam nut
• 2 – Stainless steel misalignment spacers (fits 1.5" brackets)

Tips to Help Prevent Any Seized or Warped Threads

• Do not weld the tube adapter with the rod end threaded in place—different cooling rates can seize the joint.
• Start your weld puddle on the tube, not the adapter.
• Allow everything to fully cool before threading in the Heim.

Rod End Maintenance Tip

We only recommend using Tri-Flow to service our rod ends. Using products like WD-40 or Blaster will void the warranty.
