1" to 3/4" Stainless Misalignment

1\" to 3/4\" Stainless Misalignment

Spacer Reduces Bolt Size, Increases Articulation | Fits 1" Bore Heim Joints

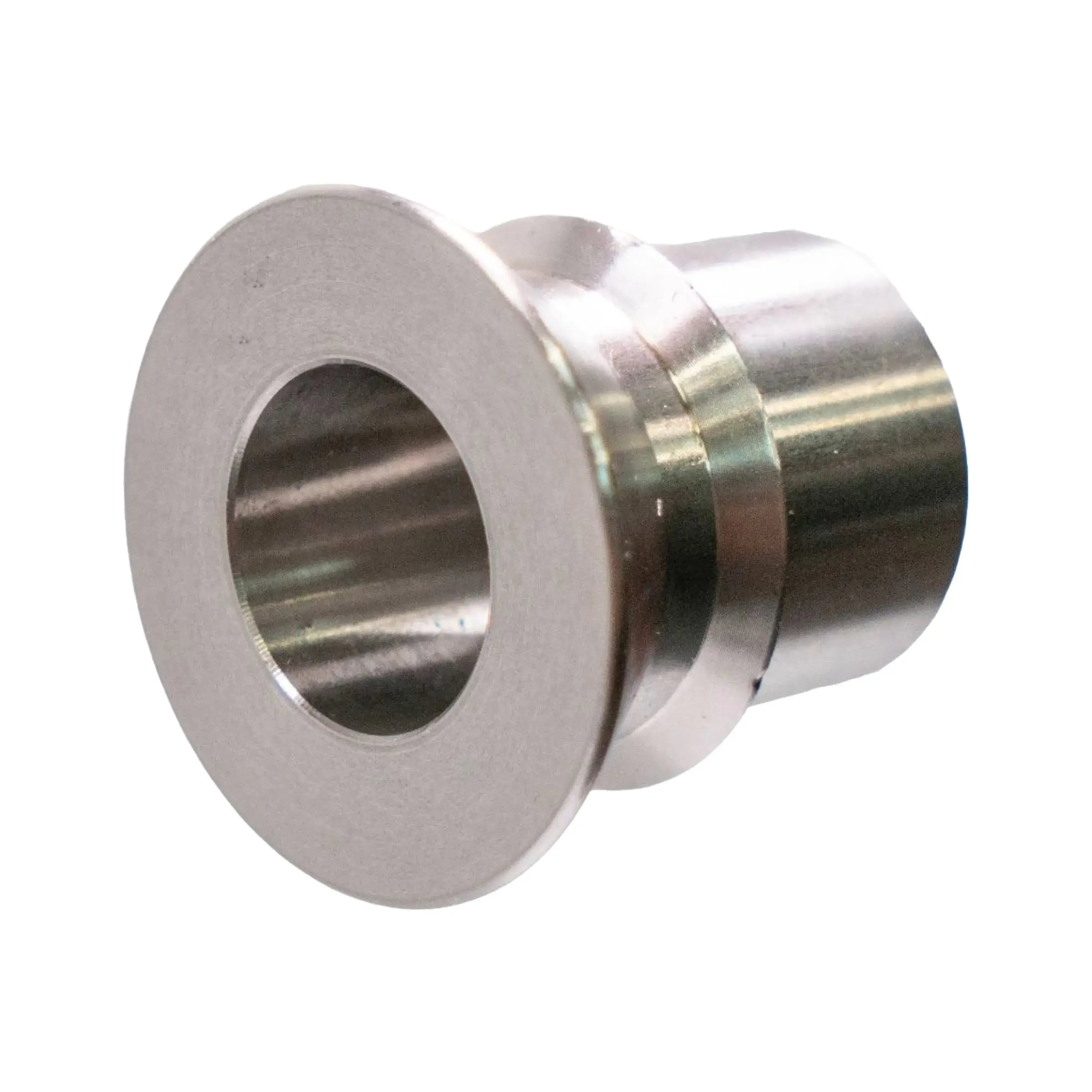

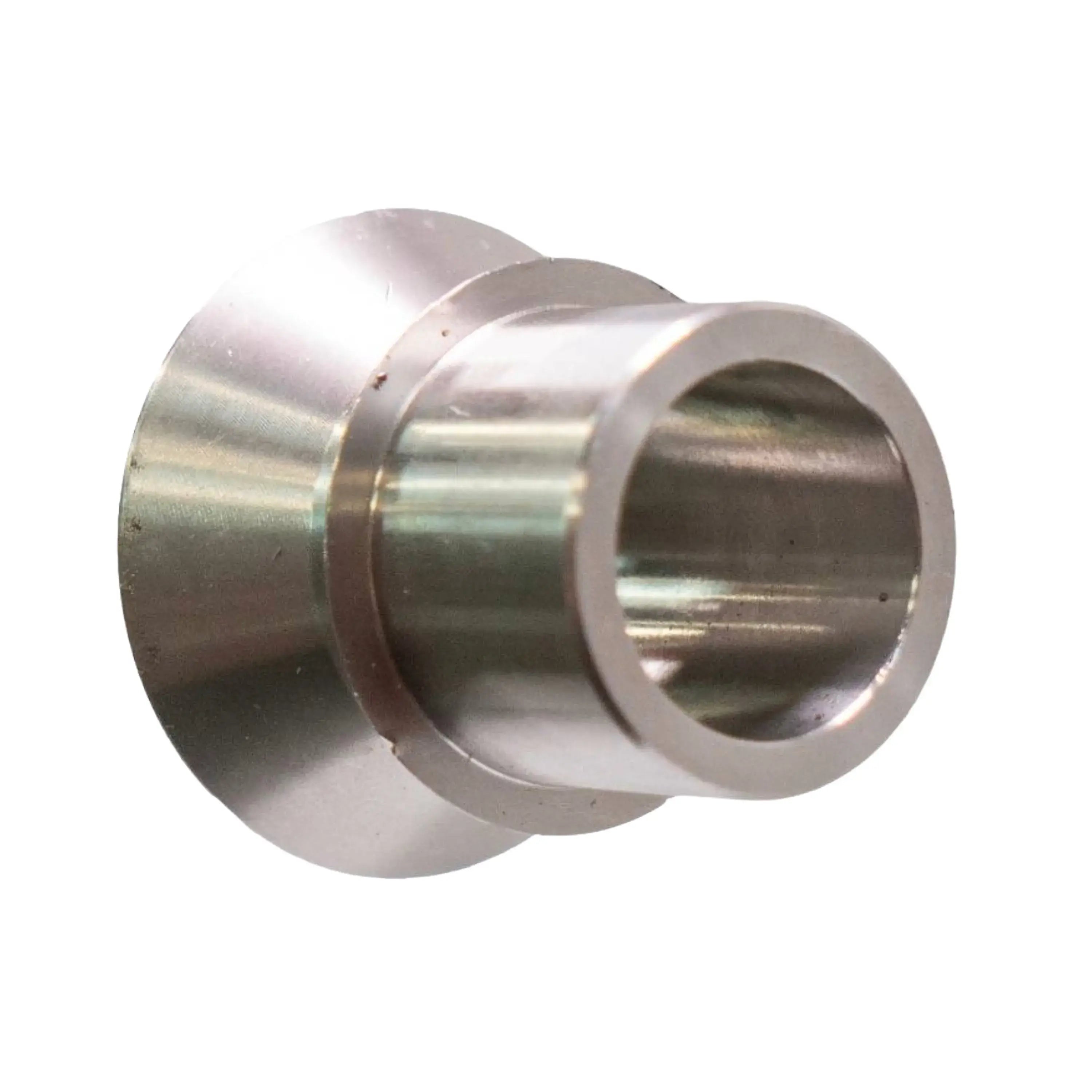

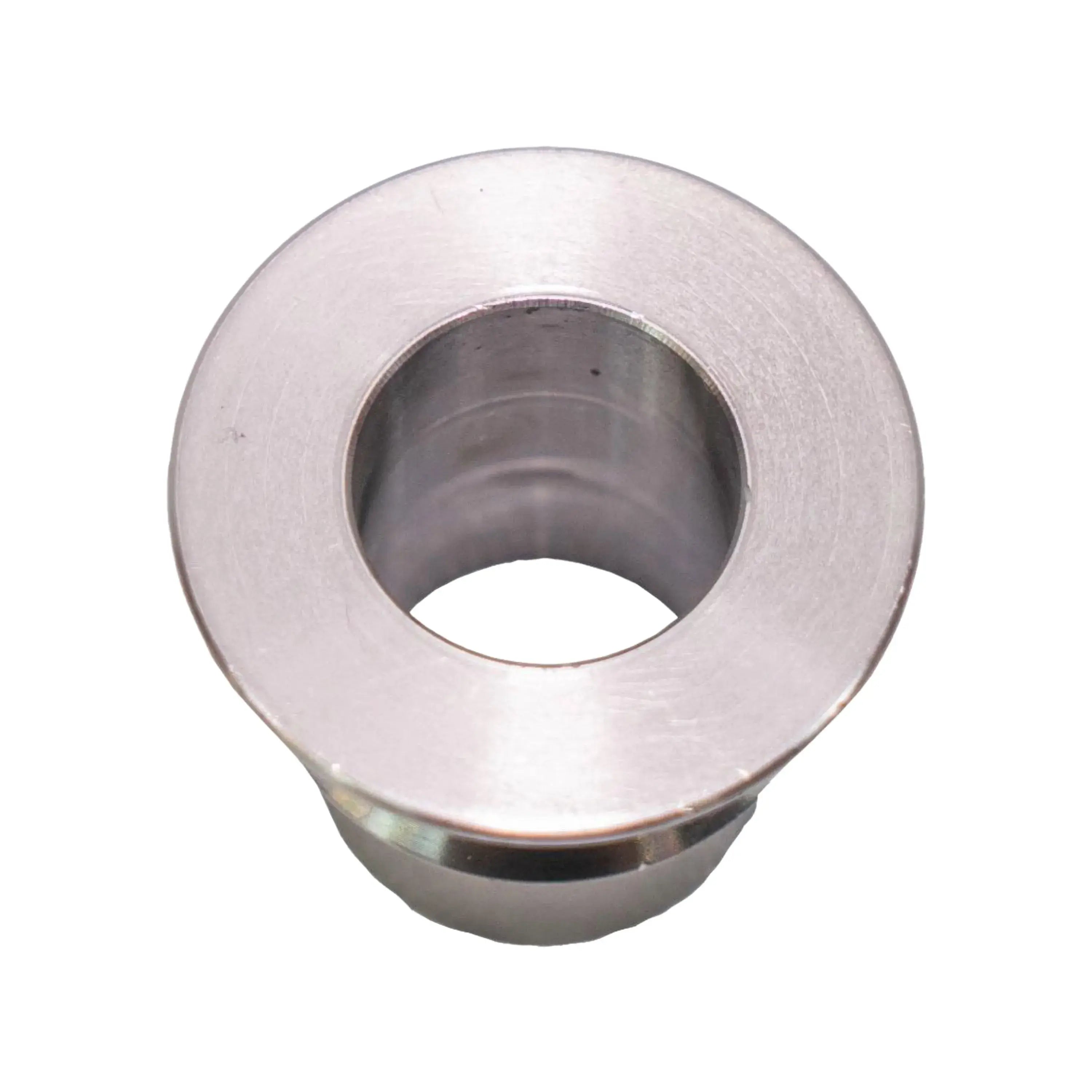

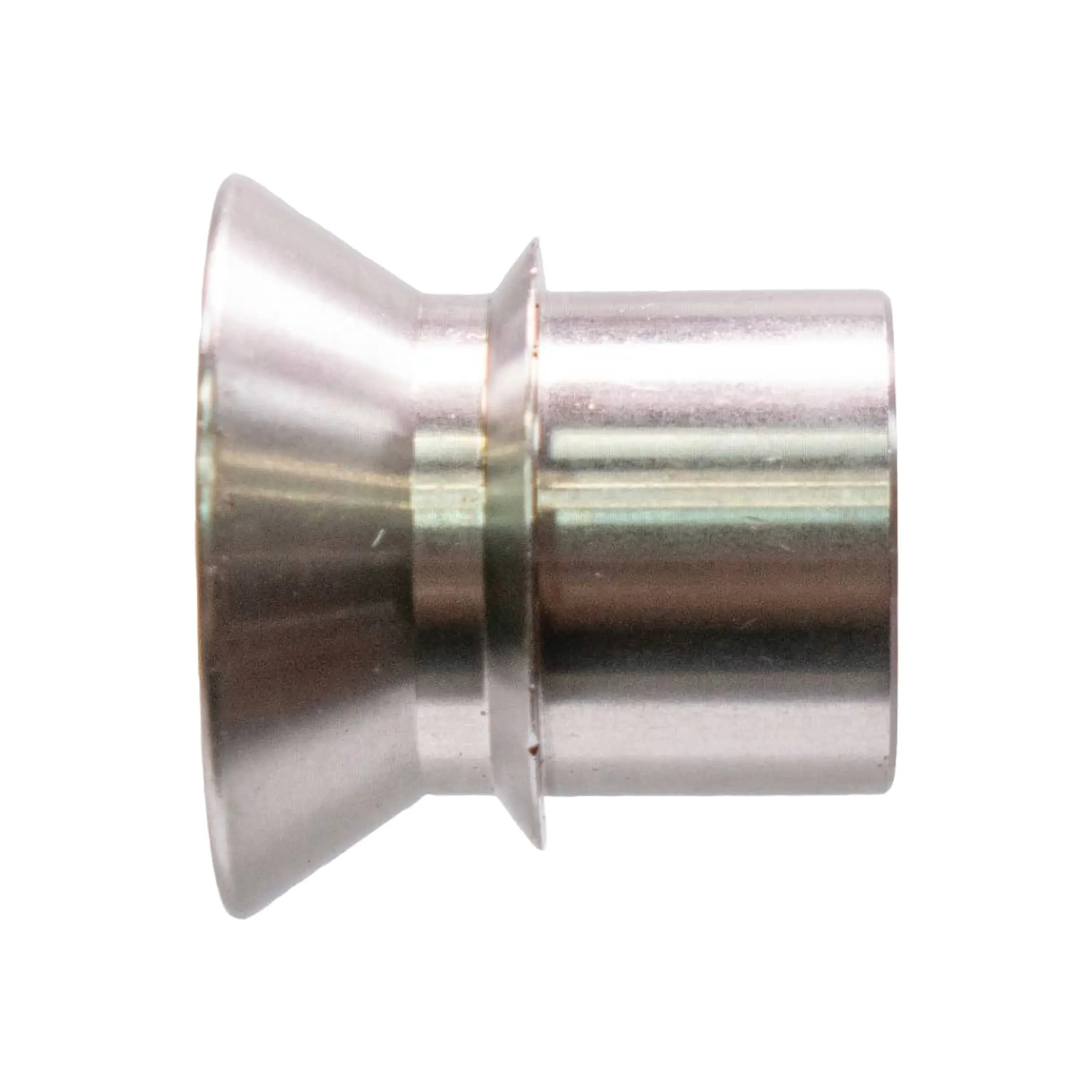

This 1\" to 3/4\" stainless misalignment spacer is designed to increase articulation and reduce bolt size in your suspension setup. It fits 1\" bore Heim joints and steps the mounting hole down to accept a 3/4\" bolt — perfect for fine-tuning your 3-link or 4-link system. Machined from 303 stainless steel, each spacer delivers precision fitment, smooth joint movement, and long-lasting corrosion resistance. When installed, it provides a 2 5/8\" overall mounting width — the standard for most off-road and race applications.

• Part Number: PN1000
• Bore Fitment: Reduces 1\" bore to 3/4\" bolt
• Overall Width: 2 5/8\" when installed
• Material: 303 stainless steel
• Function: Acts as both a misalignment spacer and bolt reducer
• Application: Suspension links, 3-link and 4-link setups, off-road and race use
• Precision machined in the USA
• Sold individually
