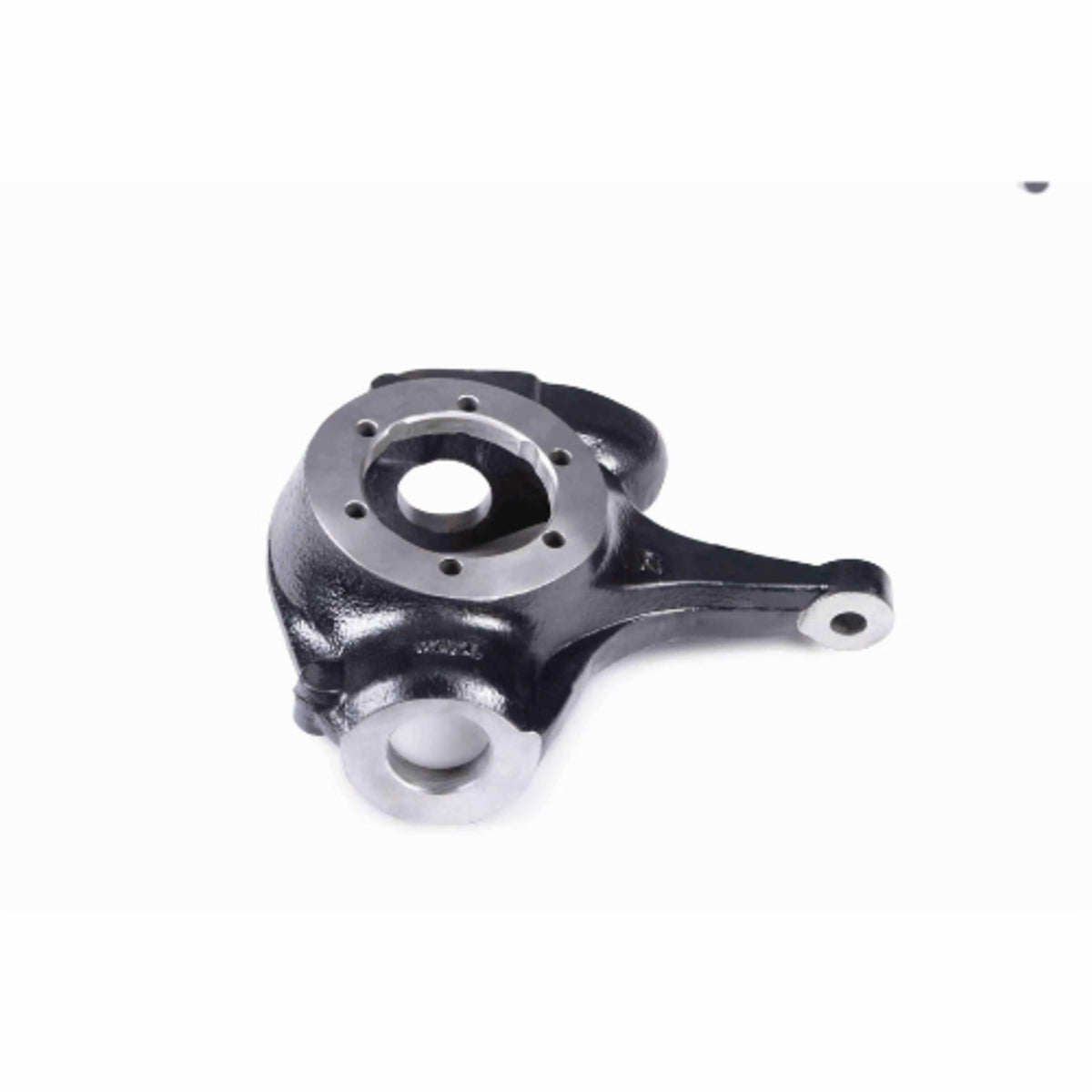

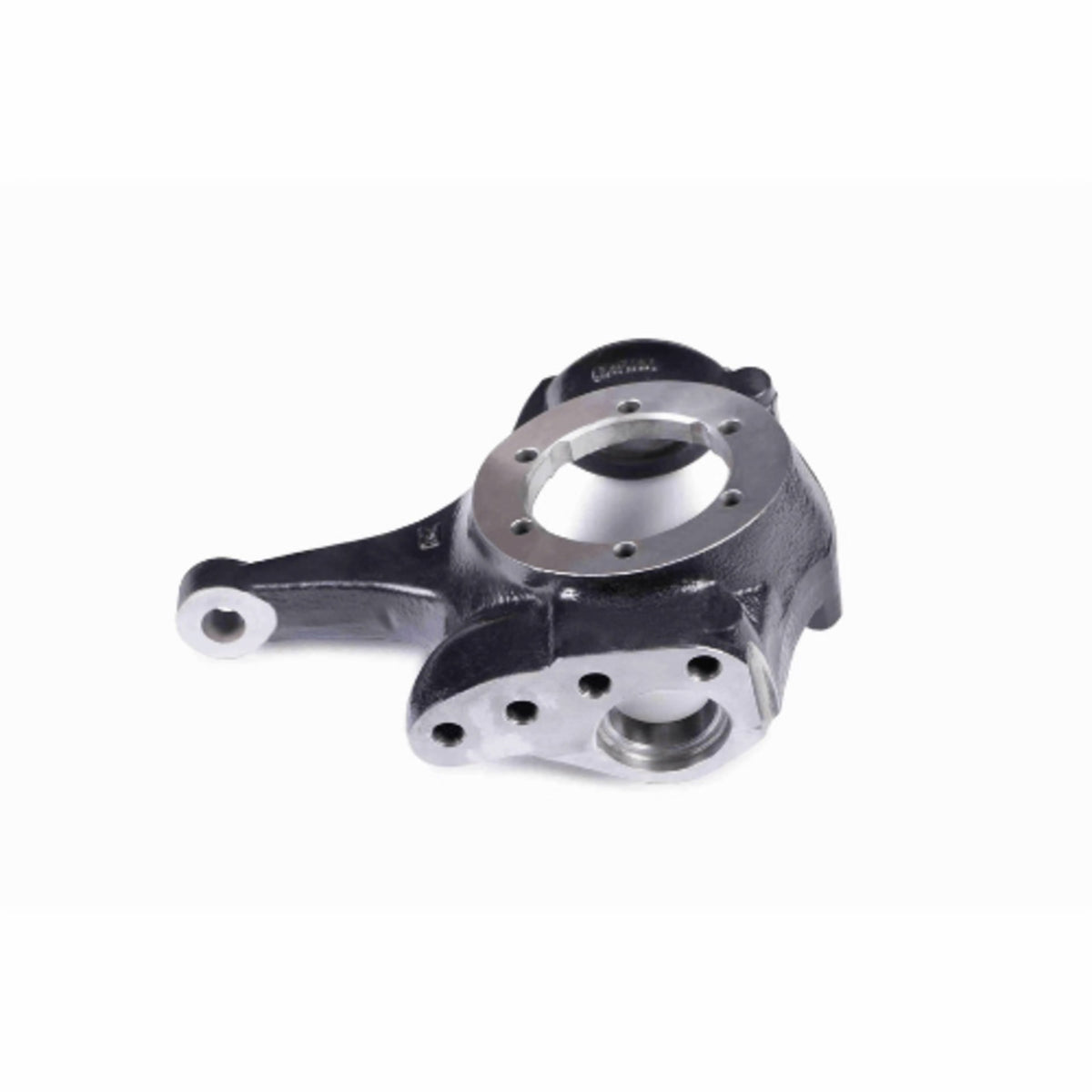

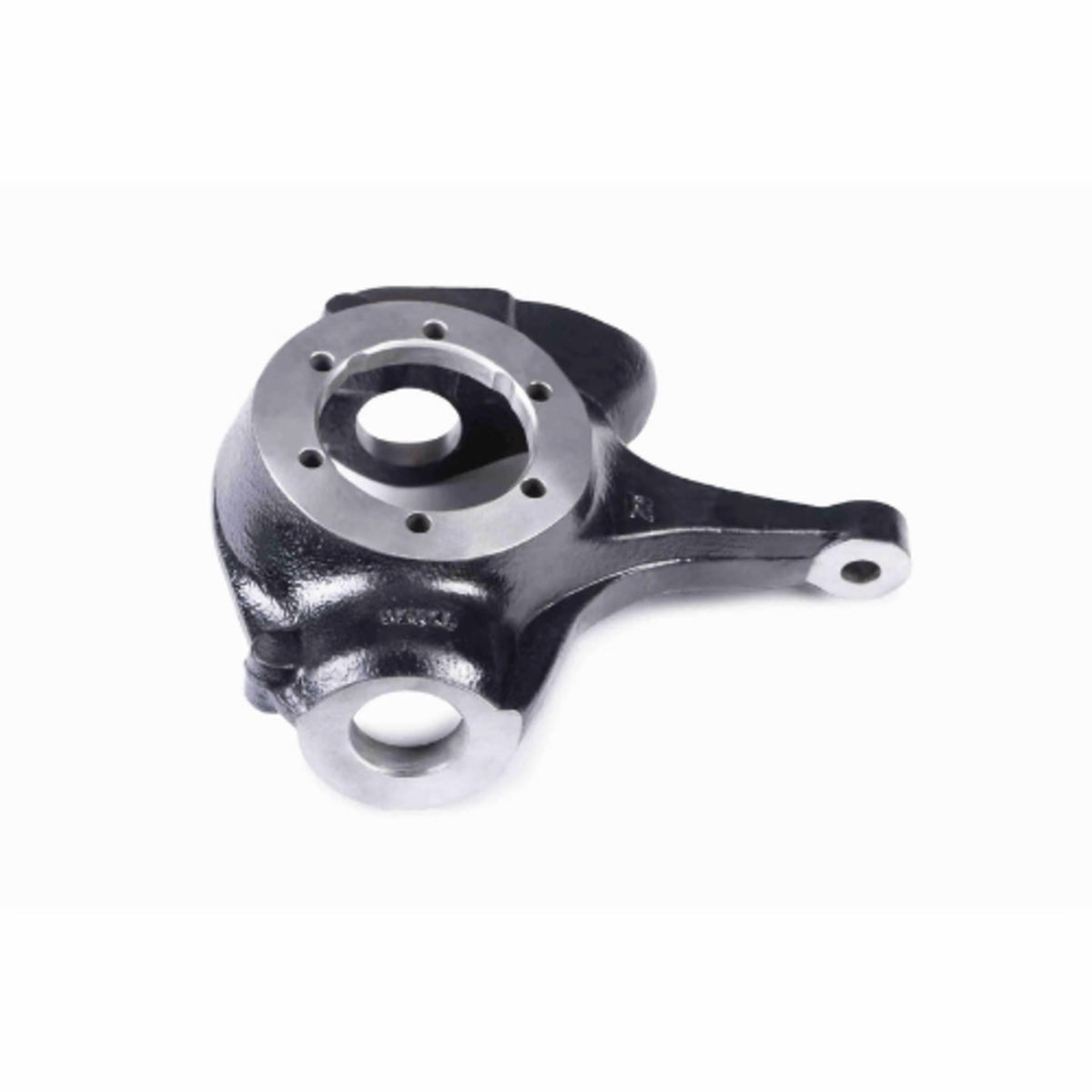

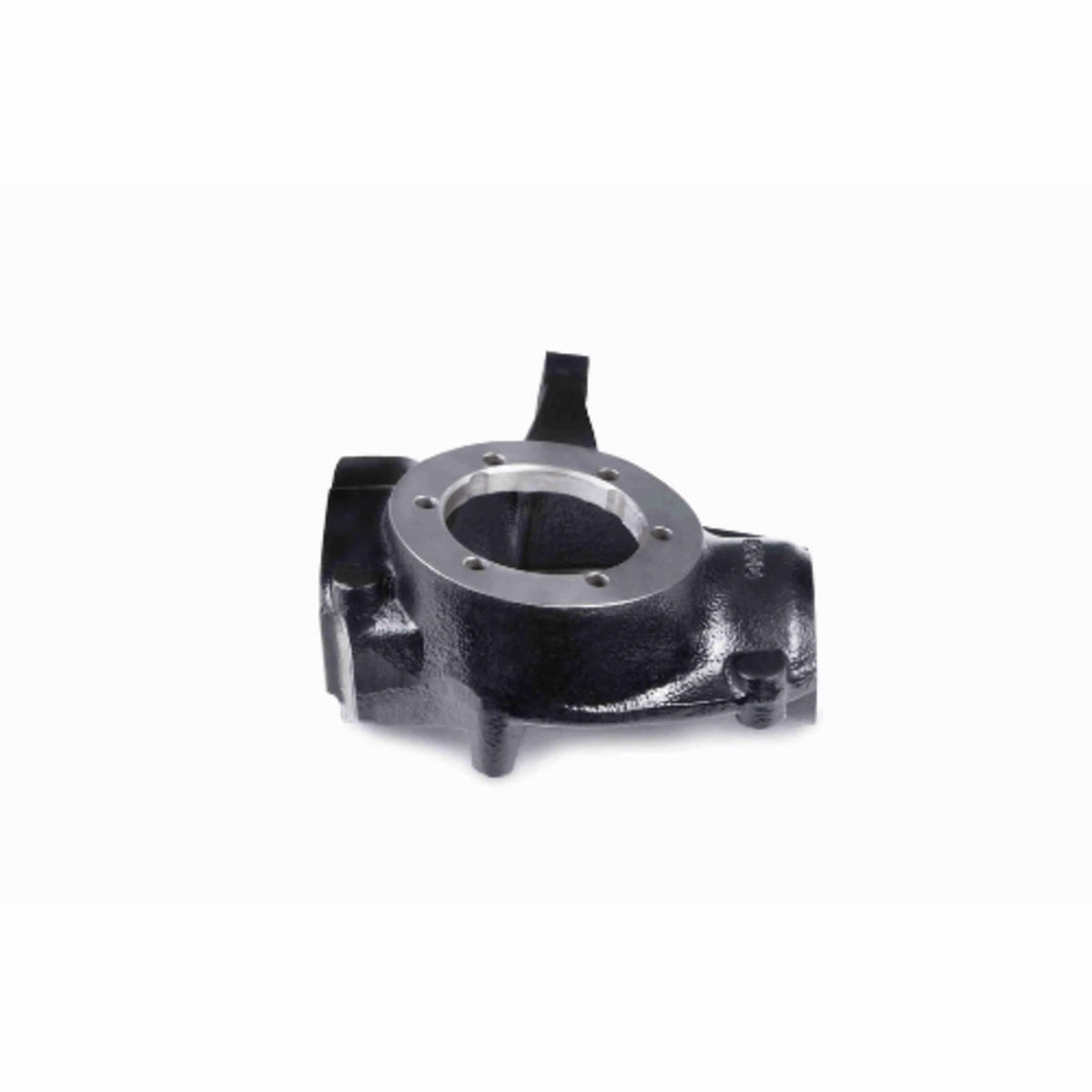

Dana 44 Passenger Side Flat Top Steering Knuckle – Chevy/Jeep

Upgrade your Dana 44 steering setup with the Riley Mountain Motorsports Dana 44 Passenger Side Flat Top Steering Knuckle.

Built for serious off-road applications, crossover steering, and high-steer conversions, this heavy-duty knuckle is manufactured from high-strength ductile iron and reinforced with additional material and ribbing where it matters most.

Designed around the Chevy/Jeep spindle bolt pattern, this knuckle accepts outers from open-knuckle Chevy 1/2-ton and 3/4-ton front axles, making it an excellent choice for custom axle builds, rock crawlers, trail rigs, and hardcore 4x4 applications.

The flat top is machined and drilled for high-steer arms, while additional thickness provides increased clearance between the high-steer tie rod and leaf springs.

Features

• Part number PN90106
• Passenger-side Dana 44 flat top steering knuckle
• Designed for Chevy/Jeep Dana 44 applications
• Ideal for crossover and high-steer configurations
• Chevy/Jeep spindle bolt pattern
• Accepts outers from open-knuckle Chevy 1/2-ton and 3/4-ton front ends
• Cast from high-strength ductile iron
• Reinforced with additional material and ribbing for increased strength
• Flat top machined and drilled for high-steer arms
• Additional flat-top thickness improves high-steer tie rod-to-leaf-spring clearance
• Machined with a bottom-down taper to match the OEM Chevy Dana 44 tie rod location
• Dual cast-in steering stops help prevent bent stop bolts
• Helps reduce the potential for steering-stop-related U-joint and axle damage
• Tapered tie rod holes accept factory-style tie rod ends
• Tie rod holes can be drilled for 3/4-inch heim joint applications
• Machined for clearance around CTM U-joints without requiring grease fitting removal
• Durable powder-coated finish for corrosion resistance
• Built for demanding off-road and fabrication applications
• Proudly made in the USA by Riley Mountain Motorsports

Built for Serious Off-Road Steering

Factory components weren't designed around oversized tires, aggressive terrain, and custom high-steer systems. The RMM Dana 44 Flat Top Knuckle gives builders a strong foundation for crossover and high-steer steering setups while retaining compatibility with commonly used Chevy Dana 44 components.

Whether you're building a rock crawler, trail rig, custom Jeep, or Dana 44 axle swap, this knuckle is designed to handle the abuse that comes with serious off-road use.

Don't buy it, build it.
