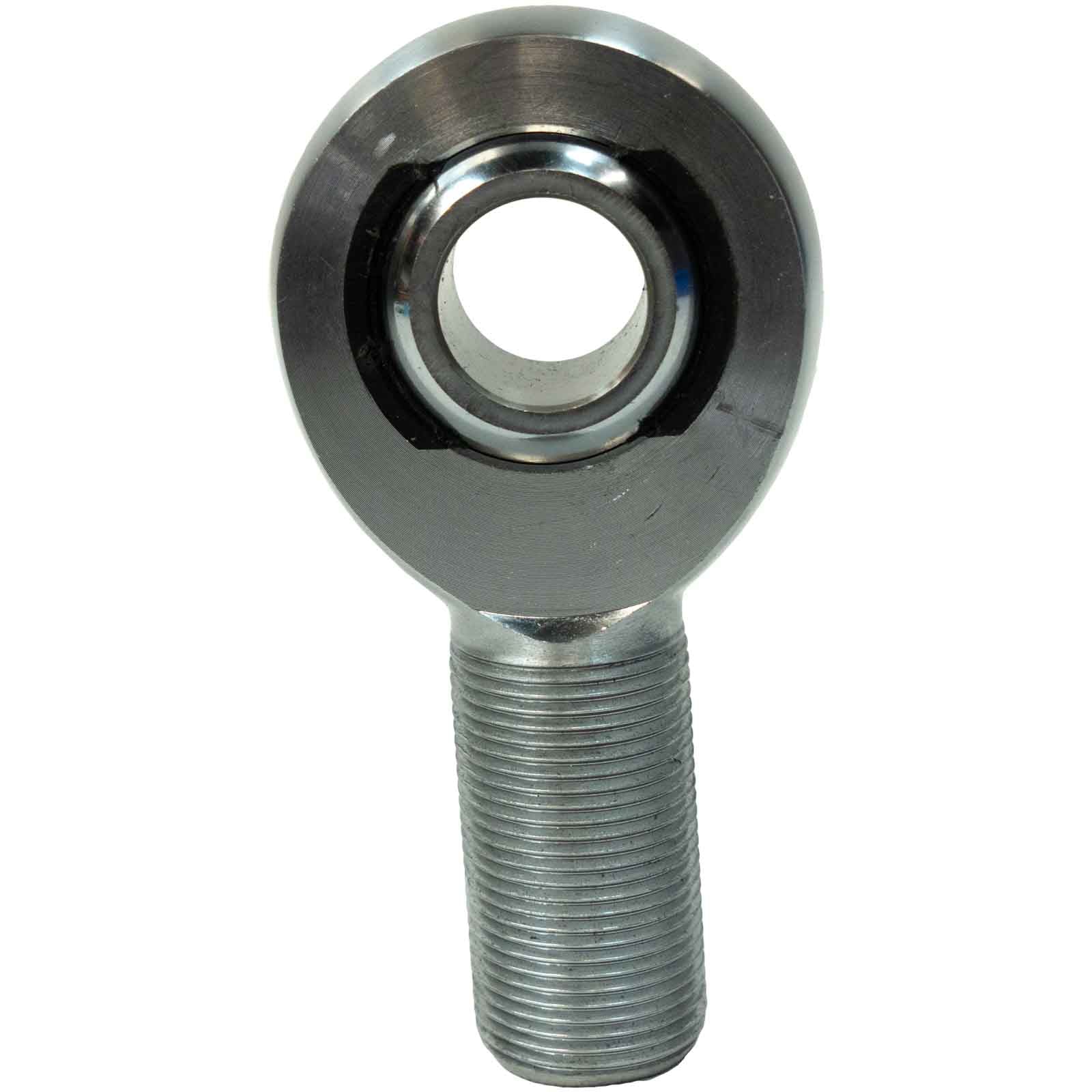

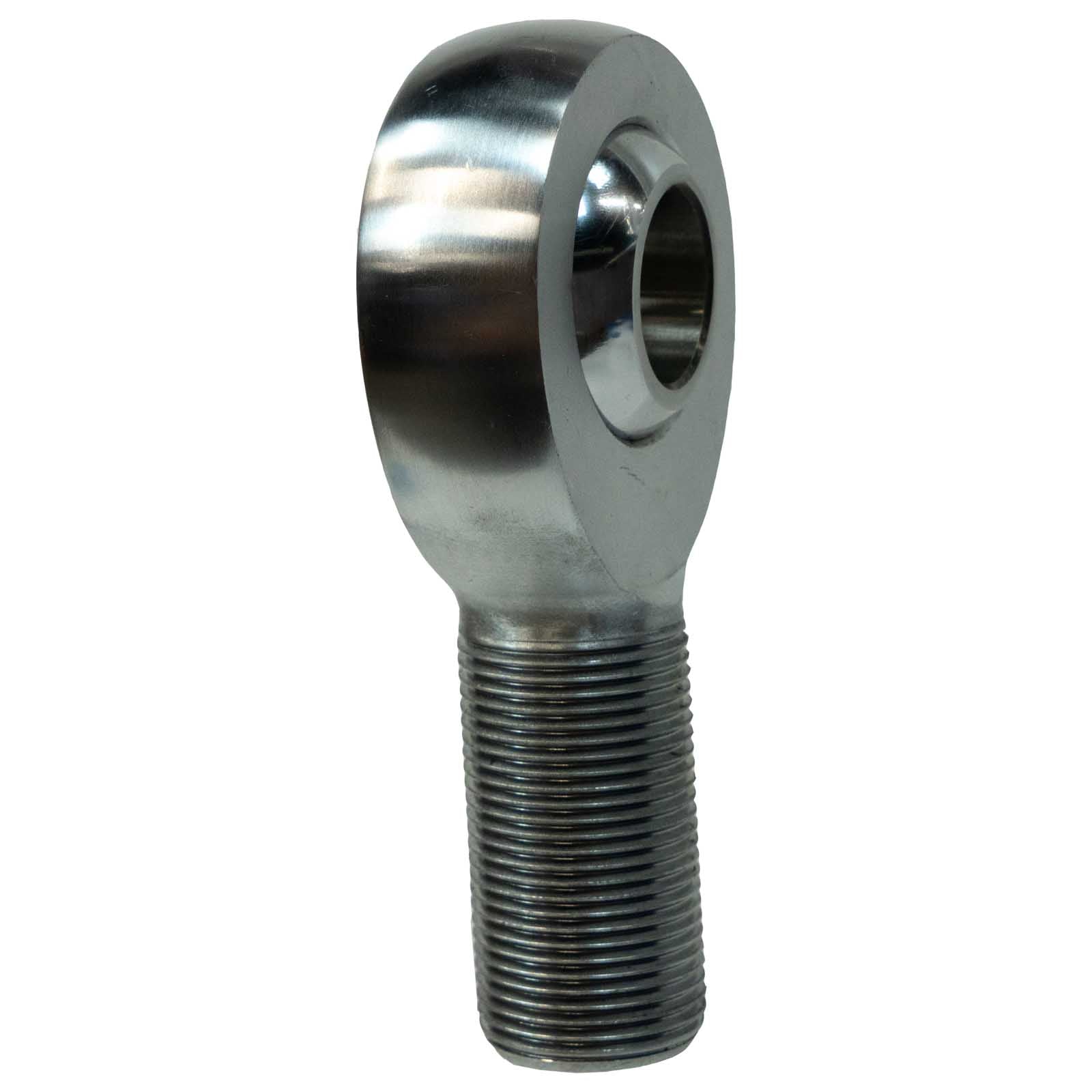

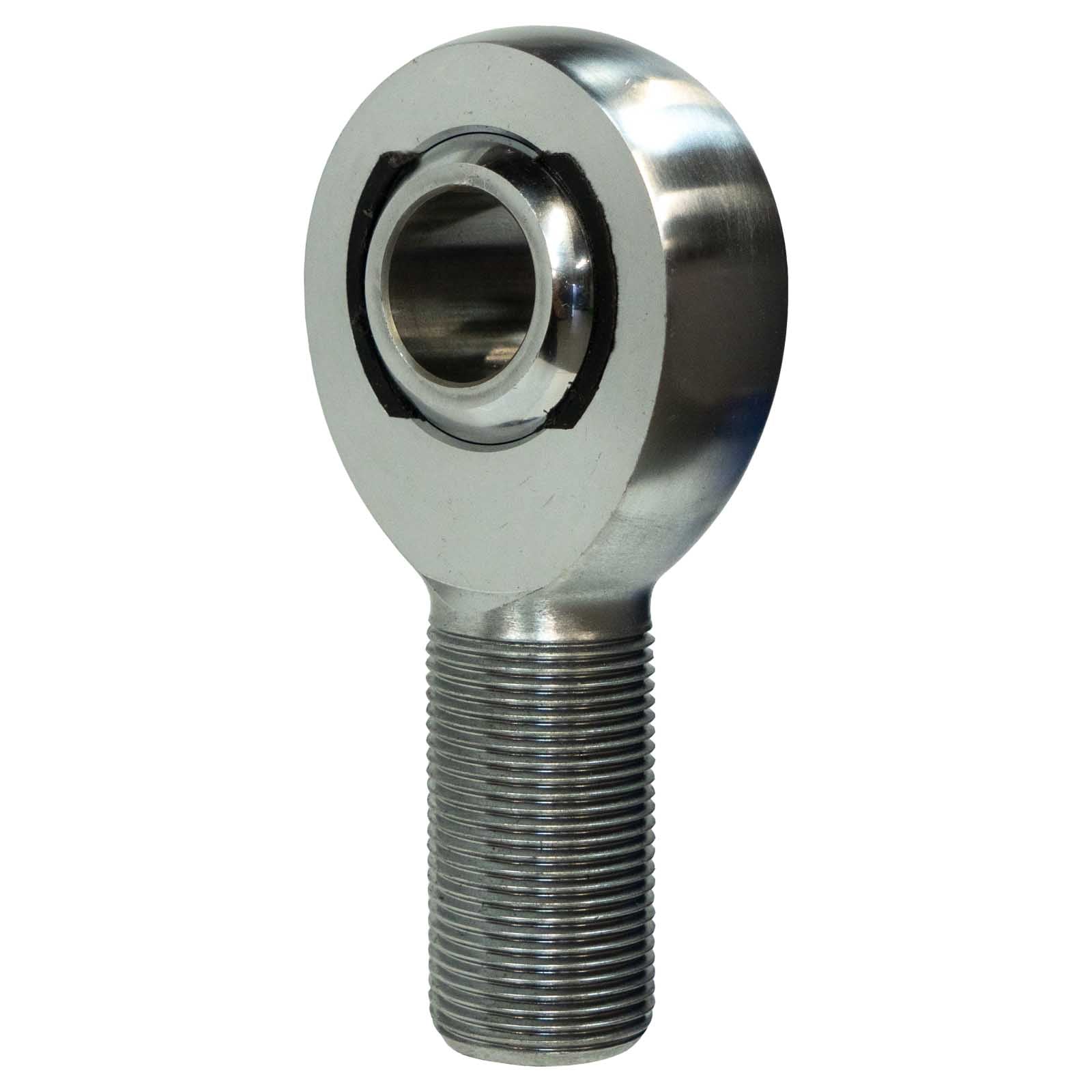

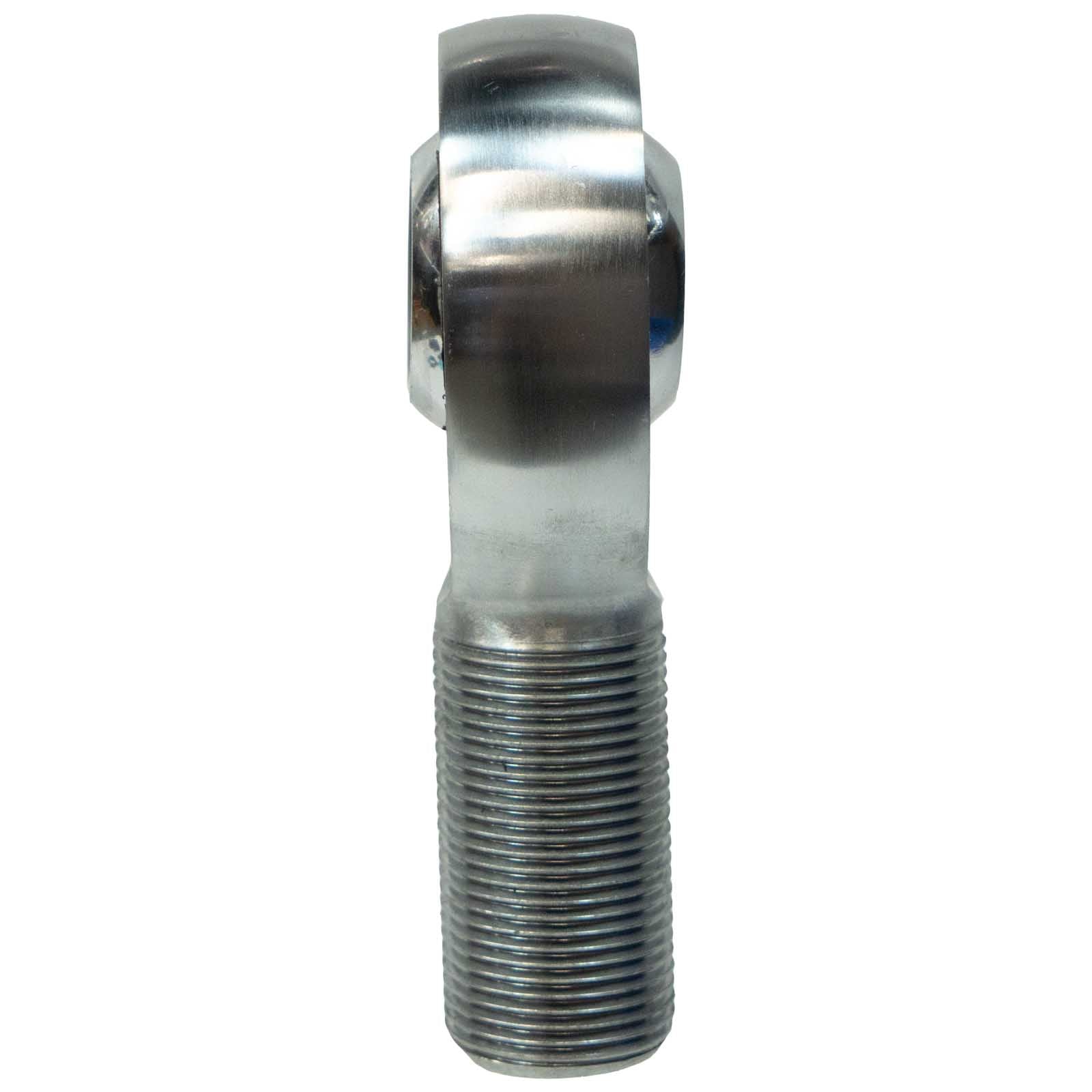

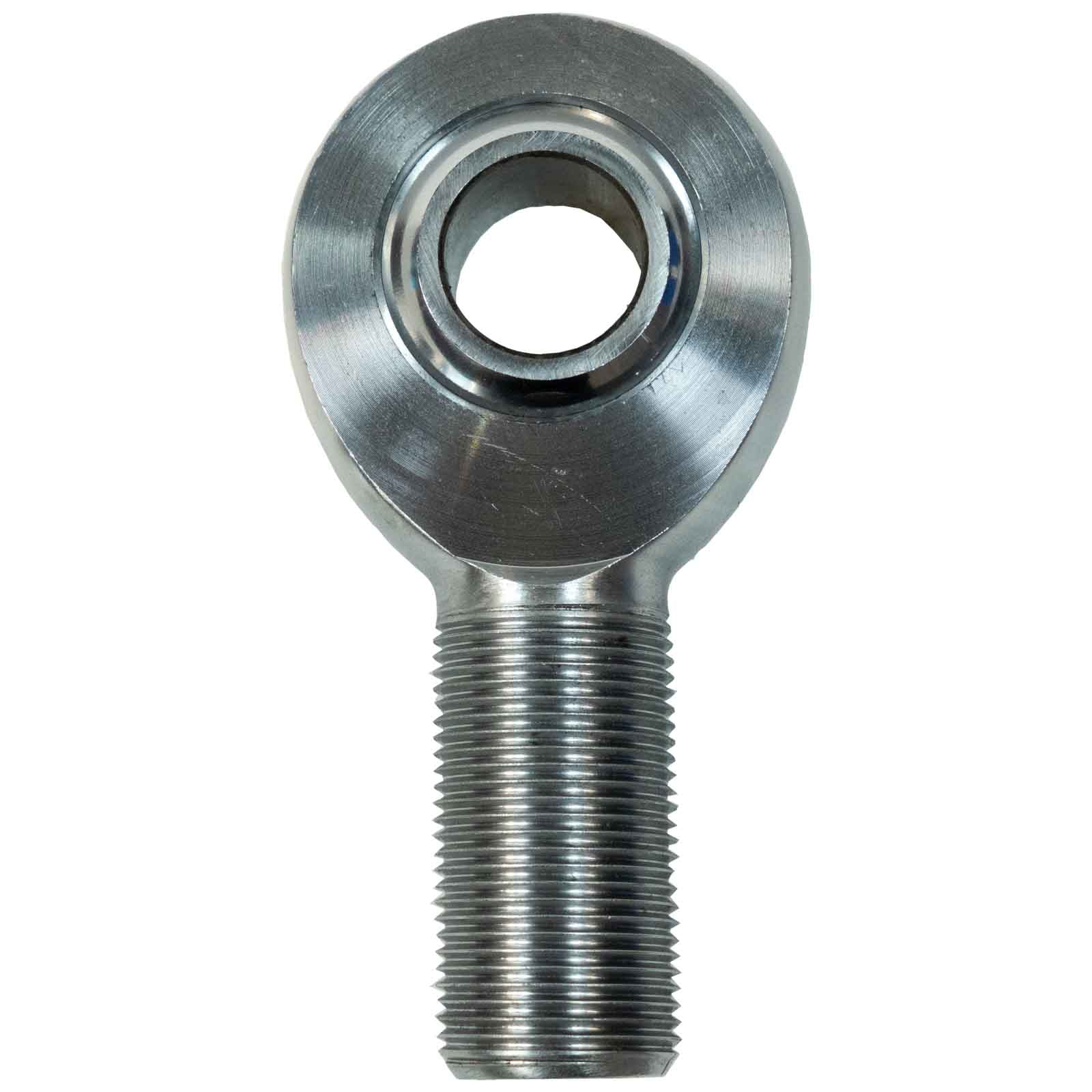

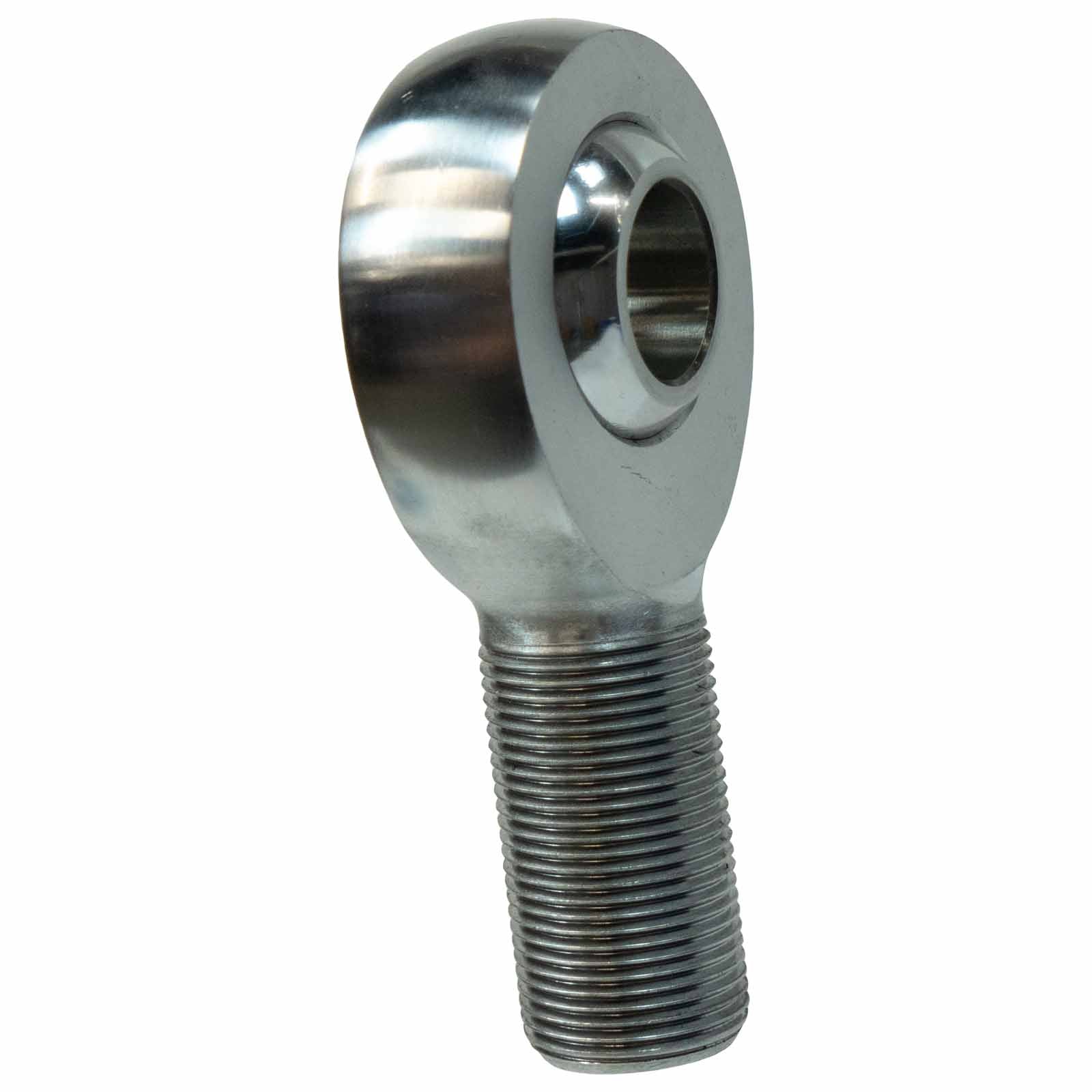

1.25" x 1" Rod End Left Hand (12 TPI)

1.25" x 1" Rod End – Left Hand (12 TPI)

Heat-Treated Chromoly Heim Joint | High-Strength for Suspension & Steering

This is the one you want when failure isn't an option. Our 1.25" x 1" left-hand Heim joint is fully heat-treated chromoly, rated to 76,200 lbs radial static load, and built to handle serious abuse in suspension, steering, and heavy-load applications. The 1" bore keeps more material in the head for added strength where it counts. Inside, a 52100 bearing with hard chrome plating and a Teflon-lined race ensures smooth, long-lasting movement. It's the same joint we've trusted on everything from trail rigs to race cars.

• Parts Number: PN1014
• Thread Size: 1.25"-12 TPI (Left-Hand Thread)
• Shank Size: 1.25"
• Bore Size: 1" – stronger head design
• Radial Static Load Rating: 76,200 lbs
• Bearing: 52100 heat-treated steel, hard chrome plated
• Housing: Chromoly, heat-treated with hard chrome finish
• Race Material: Teflon-injected nylon
• Made in the USA
• Sold individually

Maintenance Tip:

For best performance and longevity, use Tri-Flow only. WD-40, Blaster, and similar products can damage the liner and will void the warranty.
