3/4" Rod End Right Hand (16 TPI)

3/4" Rod End – Right Hand (16 TPI)

Heat-Treated Chromoly Heim Joint | Built for Steering & Suspension

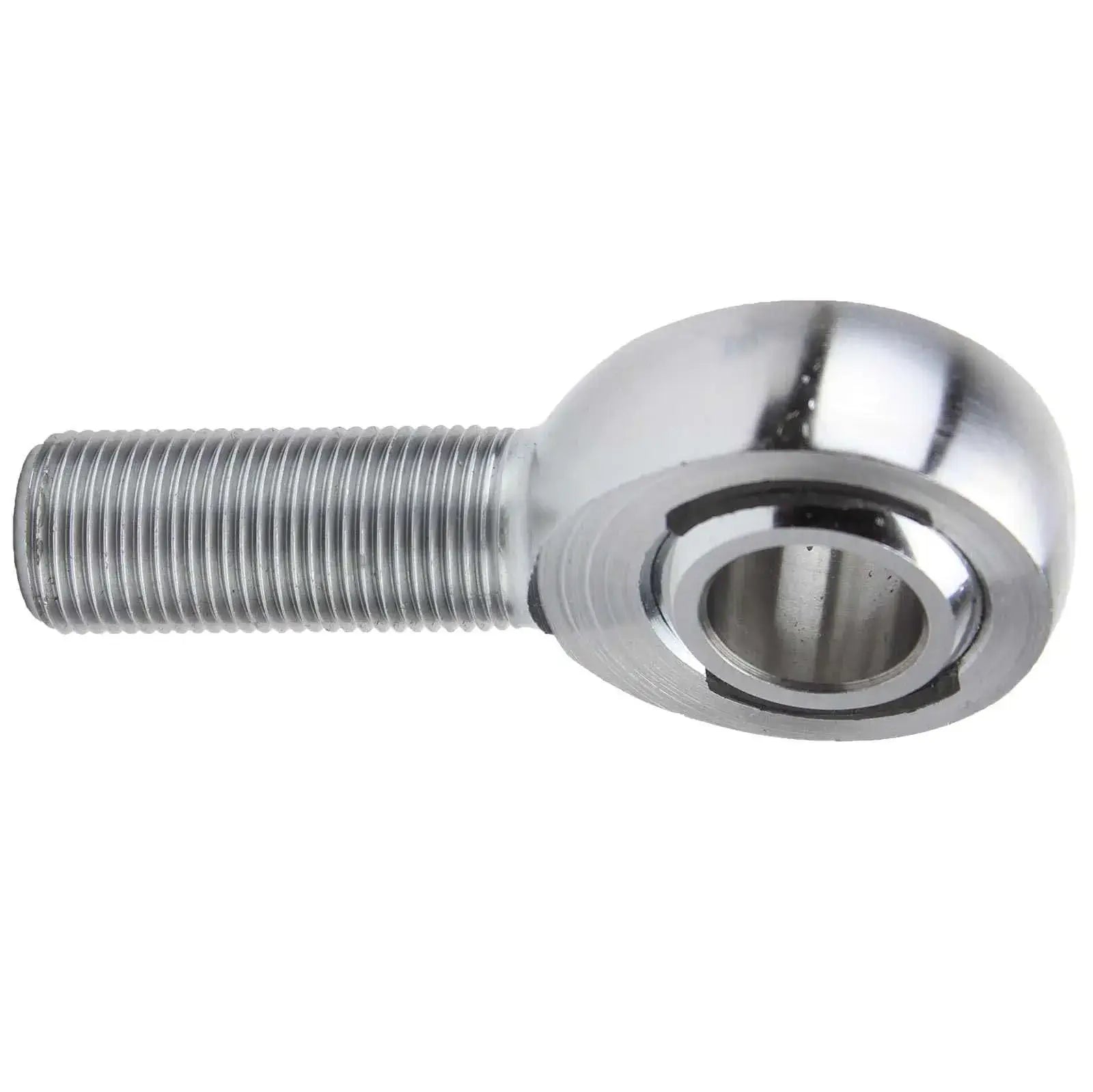

This 3/4" right-hand Heim joint is built from heat-treated 4130 chromoly and designed for steering and suspension applications where strength and reliability matter. With a 28,000 lbs radial static load rating, it's more than capable of handling the abuse that comes with off-road use. The 52100 bearing steel ball is hard chrome plated and rides in a Teflon-injected nylon race for smooth, long-lasting articulation. It's the same joint we use in our own builds—proven on the trail and trusted in the shop.

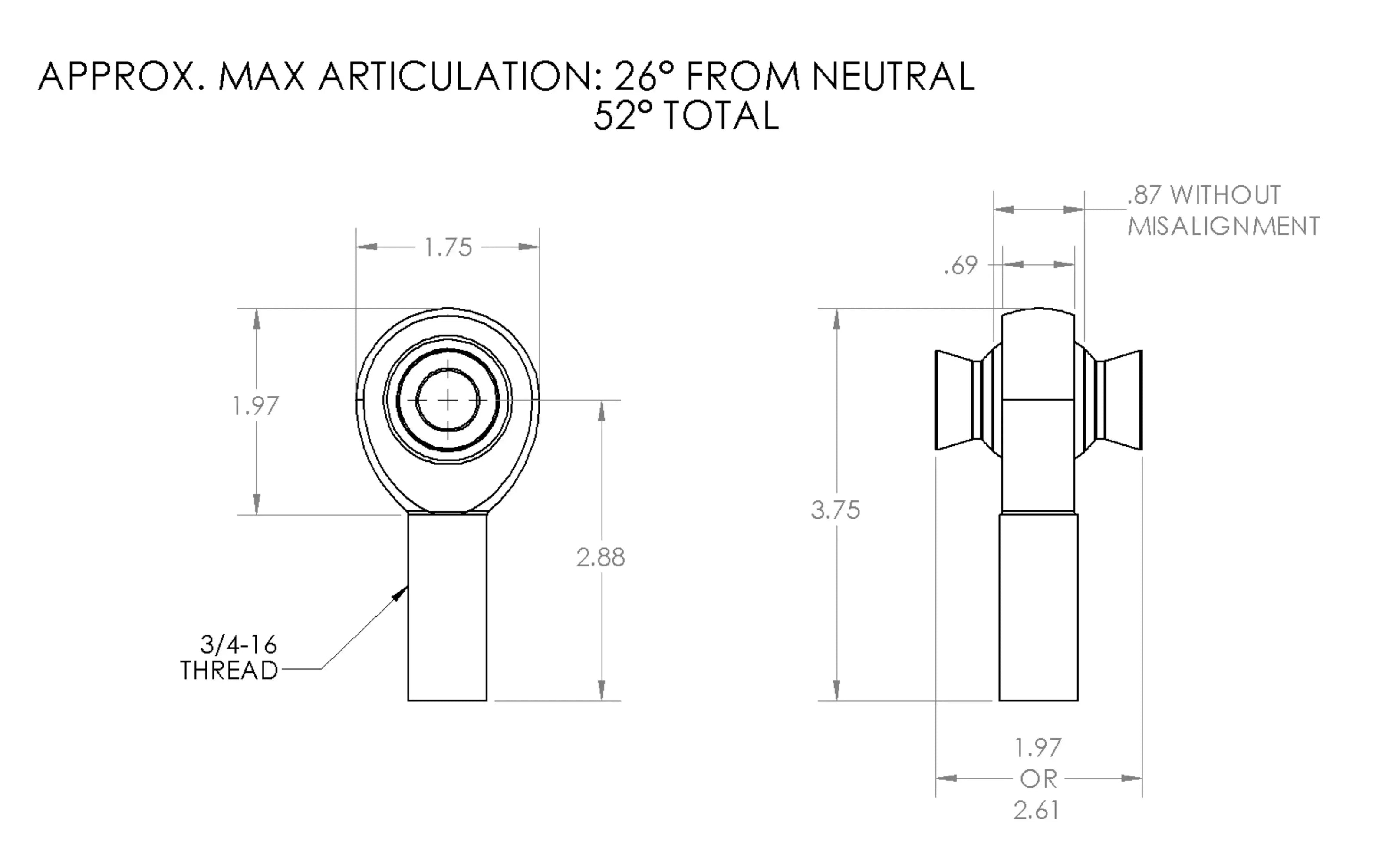

• Parts Number: PN1040
• Thread Size: 3/4"-16 TPI (Right-Hand Thread)
• Shank Size: 3/4"
• Bore Size: 3/4"
• Radial Static Load Rating: 28,000 lbs
• Bearing: 52100 heat-treated steel, hard chrome plated
• Housing: 4130 chromoly, heat-treated with hard chrome finish
• Race Material: Teflon-injected nylon
• Made in the USA
• Sold individually

Maintenance Tip:

For best performance and longevity, use Tri-Flow only. WD-40, Blaster, and similar products can damage the liner and will void the warranty.
