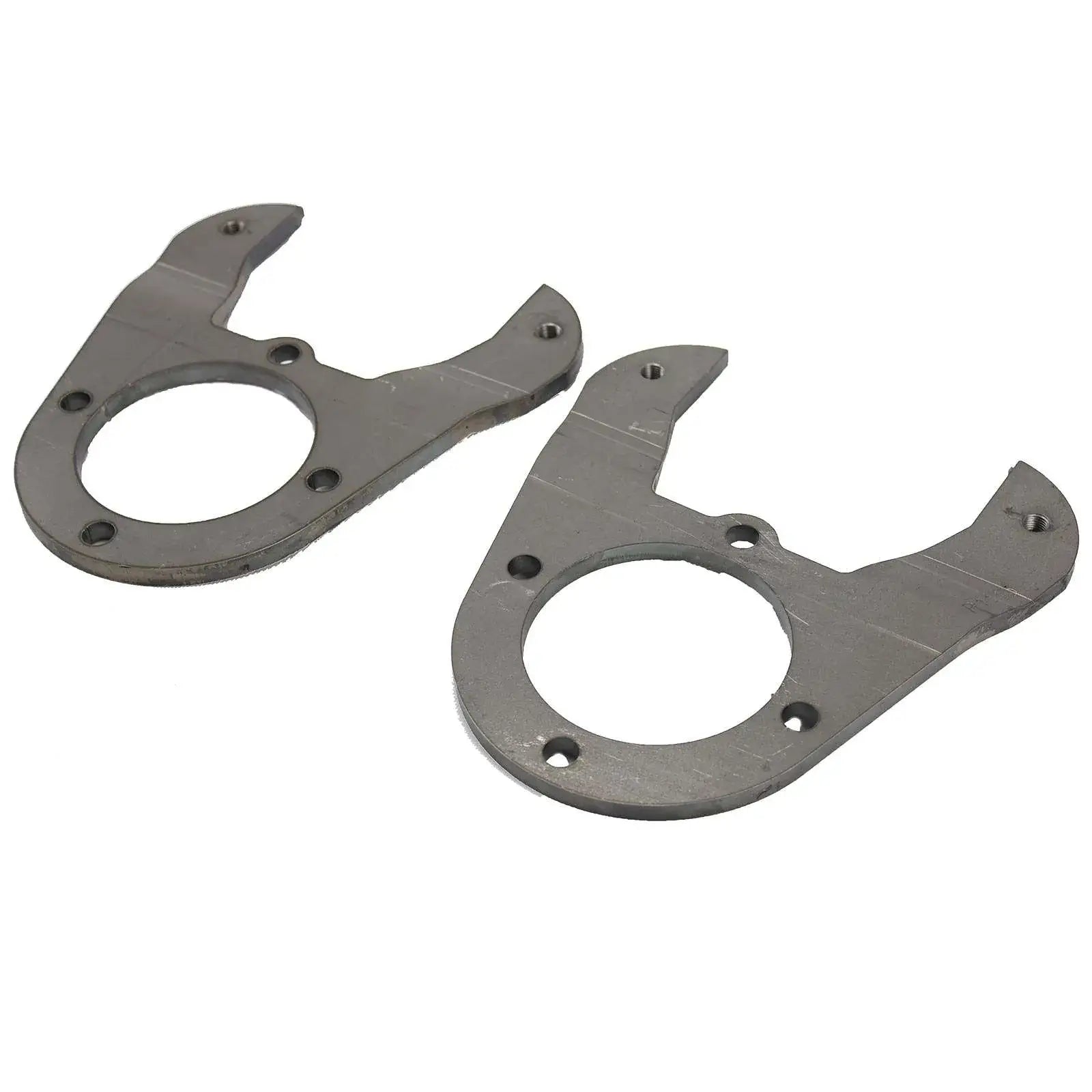

Dana 70/ 70U Disc Brake Bracket Pair (Ford Dana 70)

Dana 70/70U Disc Brake Bracket (Ford Dana 70)

Disc Brake Brackets for Ford Dana 70 SRW Axles

This disc brake bracket is designed to convert Ford Dana 70 and Dana 70U single rear wheel (SRW) axles from drum to disc brakes using commonly available components. It avoids the poor fitment and guesswork that often come with universal brackets.

The bracket works with 1973–1987 Chevy 3/4-ton front rotors and calipers. A minor modification (~3/16") is required to the rotor throat for proper fitment over the hub. Not for dual rear wheel (DRW) or van axles.

Key Features

• Part Number: PN1115
• Fits Ford Dana 70 and Dana 70U SRW rear axles
• Uses 1973–1987 Chevy 3/4 Ton front rotors and calipers
• Not compatible with DRW or van axles
• Rotor mounts on the backside of the hub
• Bracket bend faces toward the differential
• Side-specific: PN1115-01 (passenger), PN1115-02 (driver)
• Sold individually

Important Notes

• Requires minimum 15" steel wheels with a maximum of 4" backspacing
• Studs must drop freely into rotor—do not press them in
• If necessary, rotors can be drilled to match larger studs
• Ensure at least 5/8" lug nut thread engagement once installed

Recommended Components

• Calipers: LH - N4674 or N4597, RH - N4673 or N4596
• Rotor: 4885677
• Brake Line: H86572

Use with our matching components:

• GM Dual Bleeder Loaded Brake Caliper
