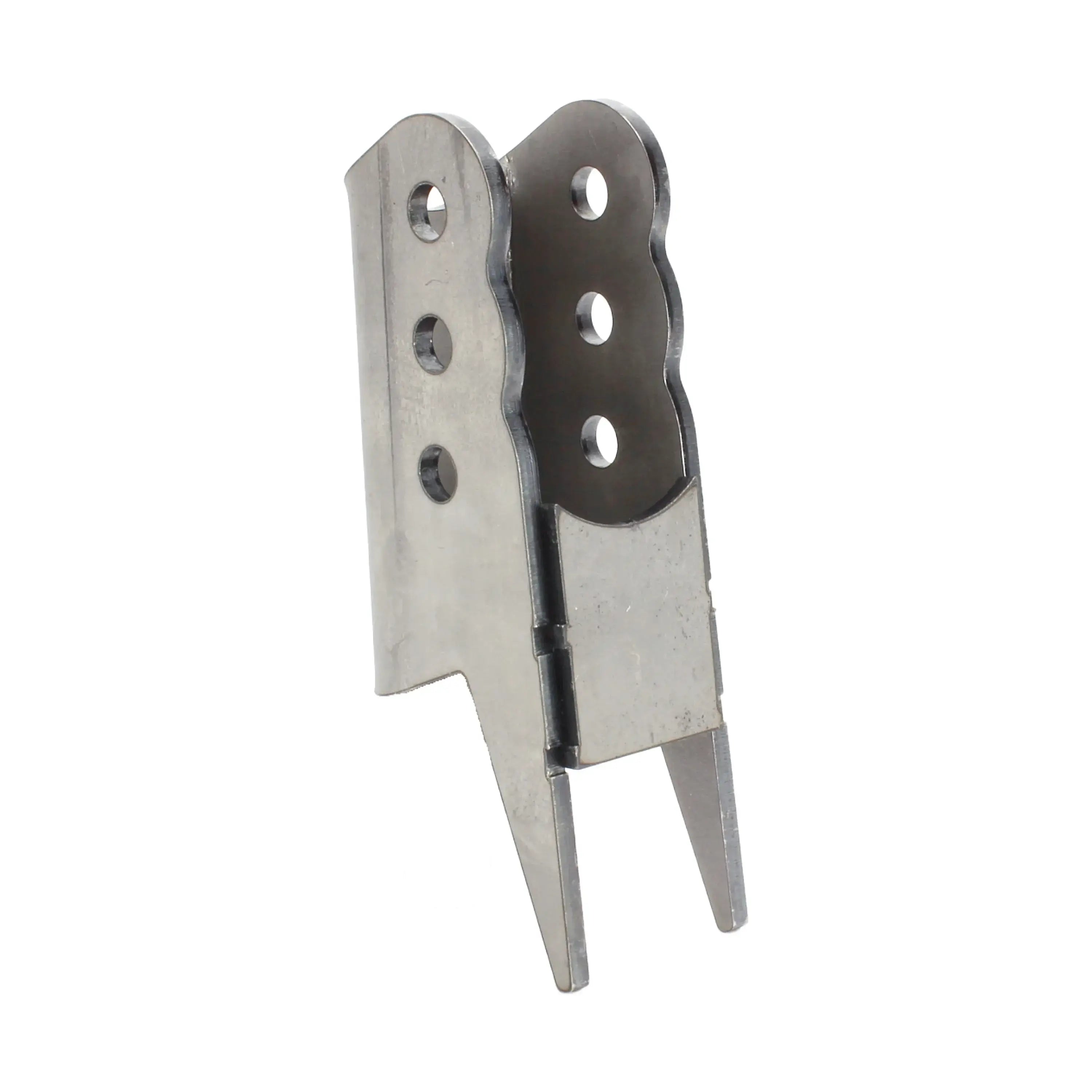

Frame Inside Panhard / Track Bar Bracket

Frame Inside Panhard / Track Bar Bracket

Compact track bar bracket built for tight setups and stock-width axles.

This inside-the-frame track bar bracket is ideal for custom suspension setups using stock-width axles where packaging is tight. It’s designed to weld directly to the inside face of your frame and provides three mounting heights — 2", 3.25", and 4.5" — measured from the bottom of the frame. That flexibility makes it easy to dial in proper panhard angle and suspension geometry.

Laser cut from 1/4" plate, this bracket has a 2" ID and includes a weld-on reinforcement plate for added strength. Whether you're setting up a fresh 4-link or tightening up a front-end rebuild, this is a clean, purpose-built solution that doesn’t take up more space than it needs to.

Key Features

• Part Number: PN1148
• Mounts to inside of frame rail
• 2" inside diameter
• 1/4" steel construction
• 3 mounting heights: 2", 3.25", and 4.5" from bottom of frame
• Includes reinforcement plate for added strength
• Welding required

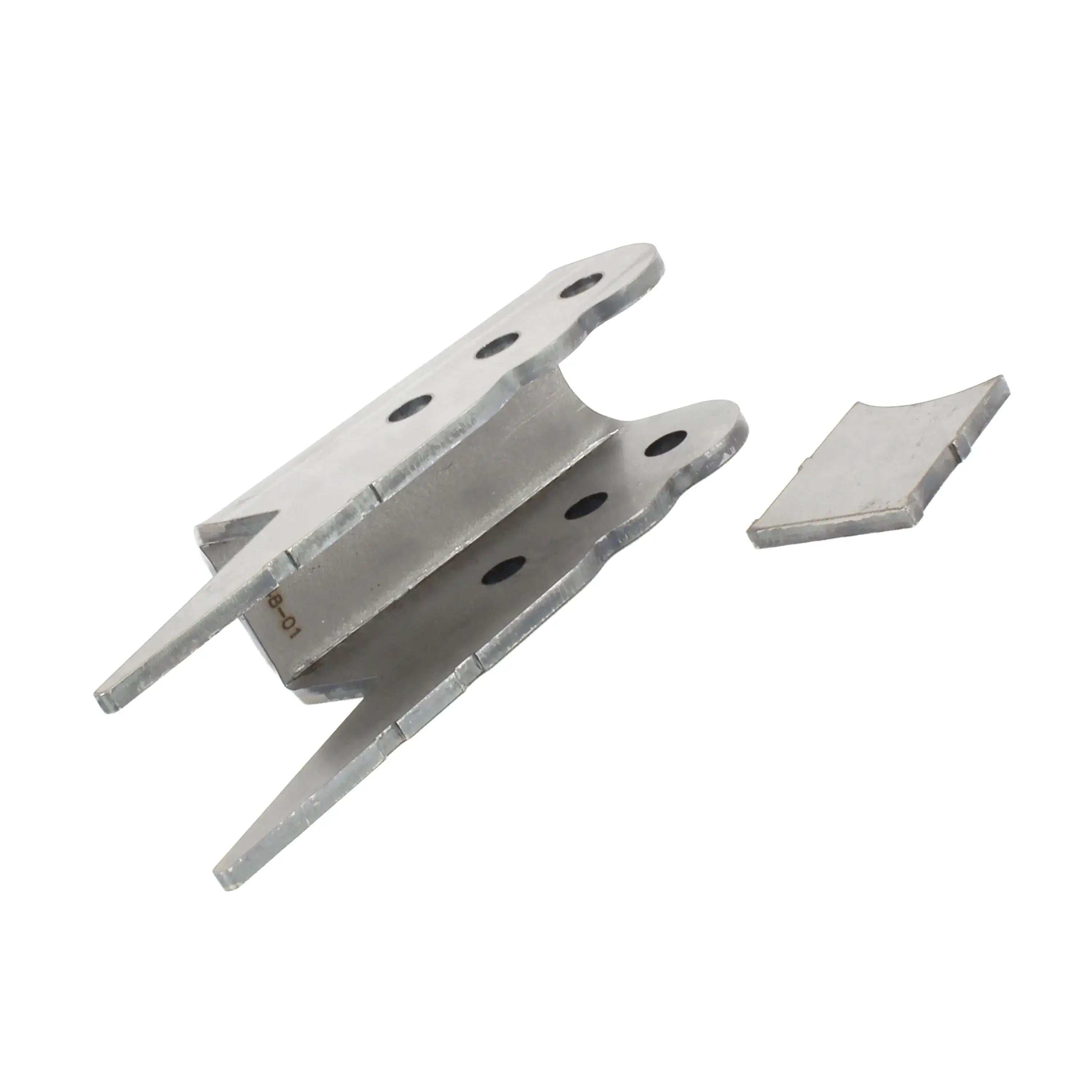

What's Included

• (1) Frame-side track bar bracket
• (1) Weld-on reinforcement plate
• Sold individually

Note

Welding required. This bracket is designed to mount on the inside of the frame and is best suited for rigs using stock-width axles. Make sure to mock up and tack in place before final welding to ensure correct panhard alignment.
