Land Cruiser Front Spring Over Kit

Land Cruiser Front Spring Over Kit

Basic spring-over kit for 3" front axle tubes on FJ40/FJ60 Land Cruisers.

This front spring-over kit is designed for Toyota Land Cruisers running a 3" diameter front axle tube—perfect for FJ40 and FJ60 builds. It’s a no-nonsense starter kit that includes all the essentials to get your axle under the rig using stock spring and shackle hangers. The standout difference in this setup is the inclusion of a diff-side cut perch and grade 8 bolts to accommodate the pumpkin clearance issue common on these axles.

Everything is built with strength in mind—3/8" thick A50 steel u-bolt plates and perches, three 10" long u-bolts with 5/8" diameter legs, and a pair of weld-on shock brackets. The u-bolt plates and perches are sized for 2.75" wide leaf springs and feature multiple center pin options to help you fine-tune your axle position. This is the bare minimum done right.

Key Features:

• Part Number: PN1162
• Fits 3" diameter front axle tubes (FJ40/FJ60)
• Designed for 2.75" wide leaf springs
• Includes diff-side perch and hardware for proper pumpkin fitment
• Spring perches and u-bolt plates have 3 center pin mounting options
• U-bolts: 10" long, 5/8" diameter, 3" inside width
• Shock brackets: 1.5" ID for standard eyelet shocks
• Made from 3/8" A50 steel for durability and strength

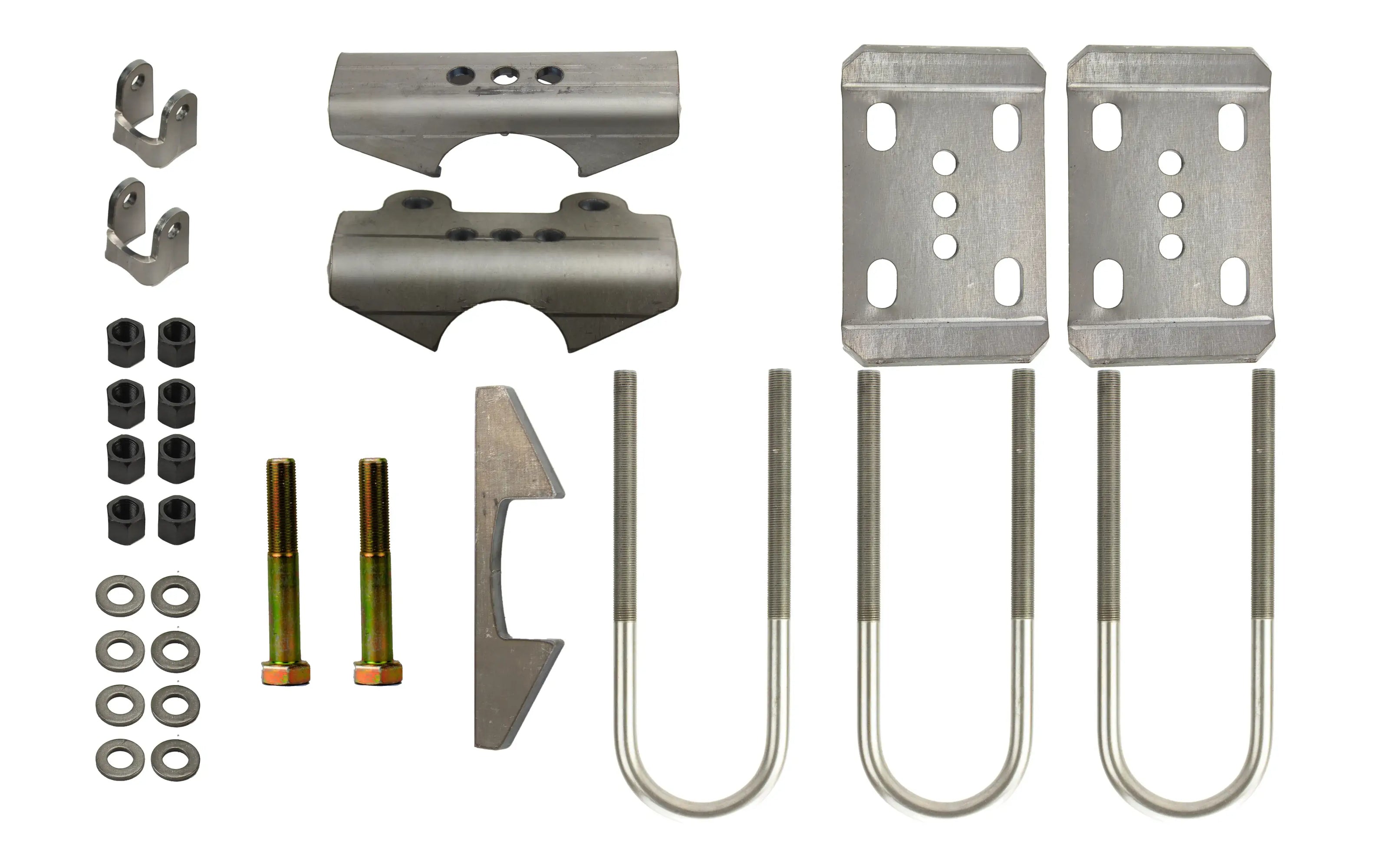

What's Included:

• (2) Leaf spring plates – 2.75" spring width
• (1) Standard spring perch – 3" axle tube, 2.75" wide
• (1) Diff cut perch – 3" axle tube, 2.75" wide
• (2) Grade 8 bolts – 5/8" x 4" with hardware
• (3) U-bolts – 10" x 5/8" x 3" with washers and nuts
• (2) Weld-on shock brackets – 1.5" ID

Available Kit Options

Note:

Requires welding. Confirm spring and axle tube fitment before install. For shock bracket install, we recommend 1/2" x 3" shock bolts (sold separately).
