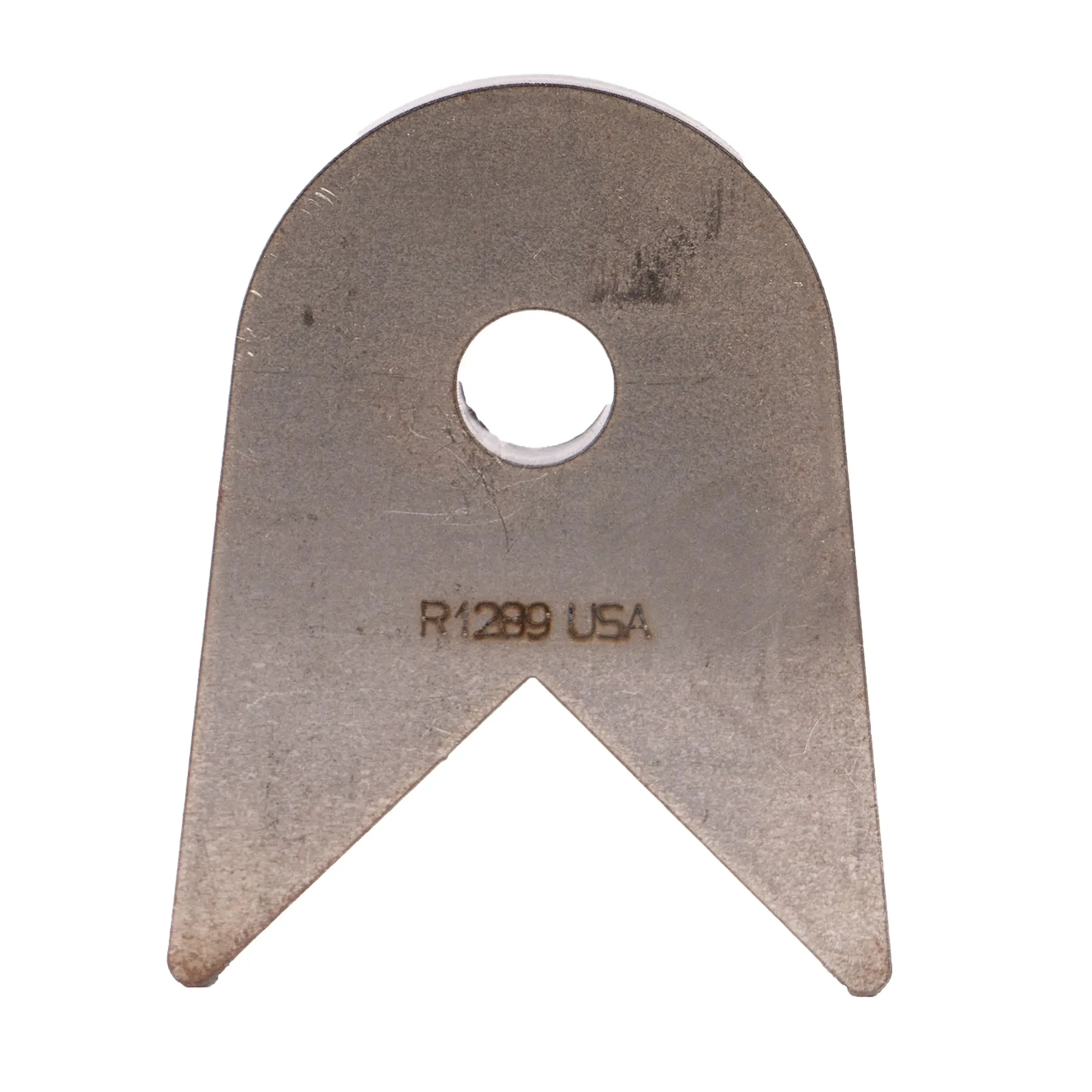

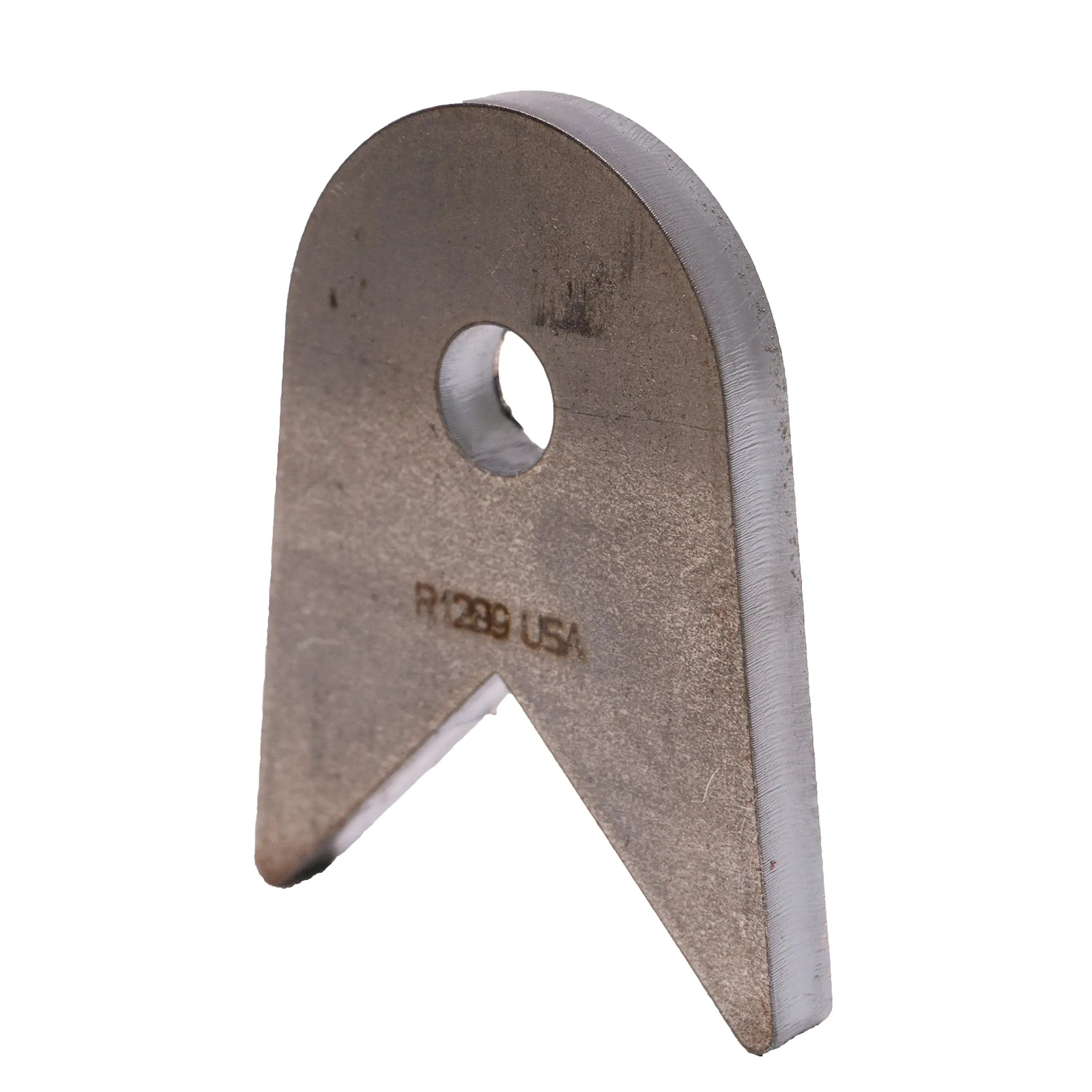

90 Degree Short Link Tab
Compact Mounting Tab for Tight Suspension and Frame Applications

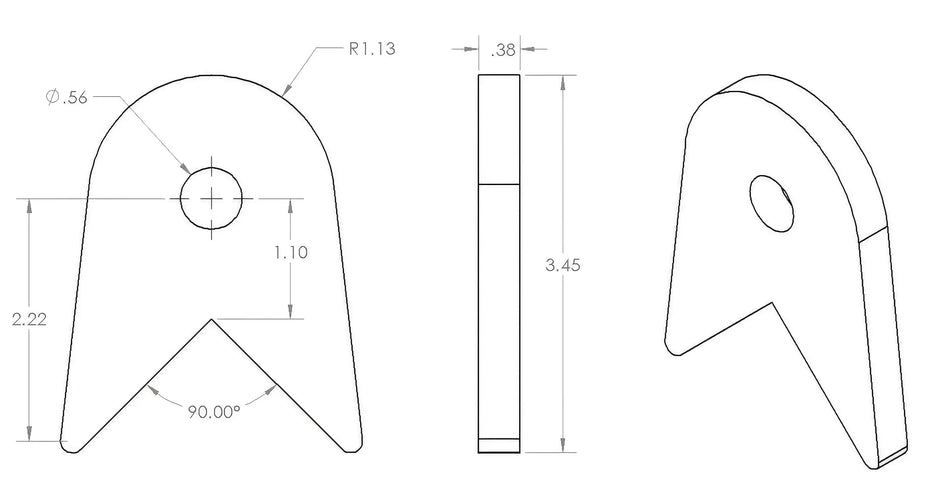

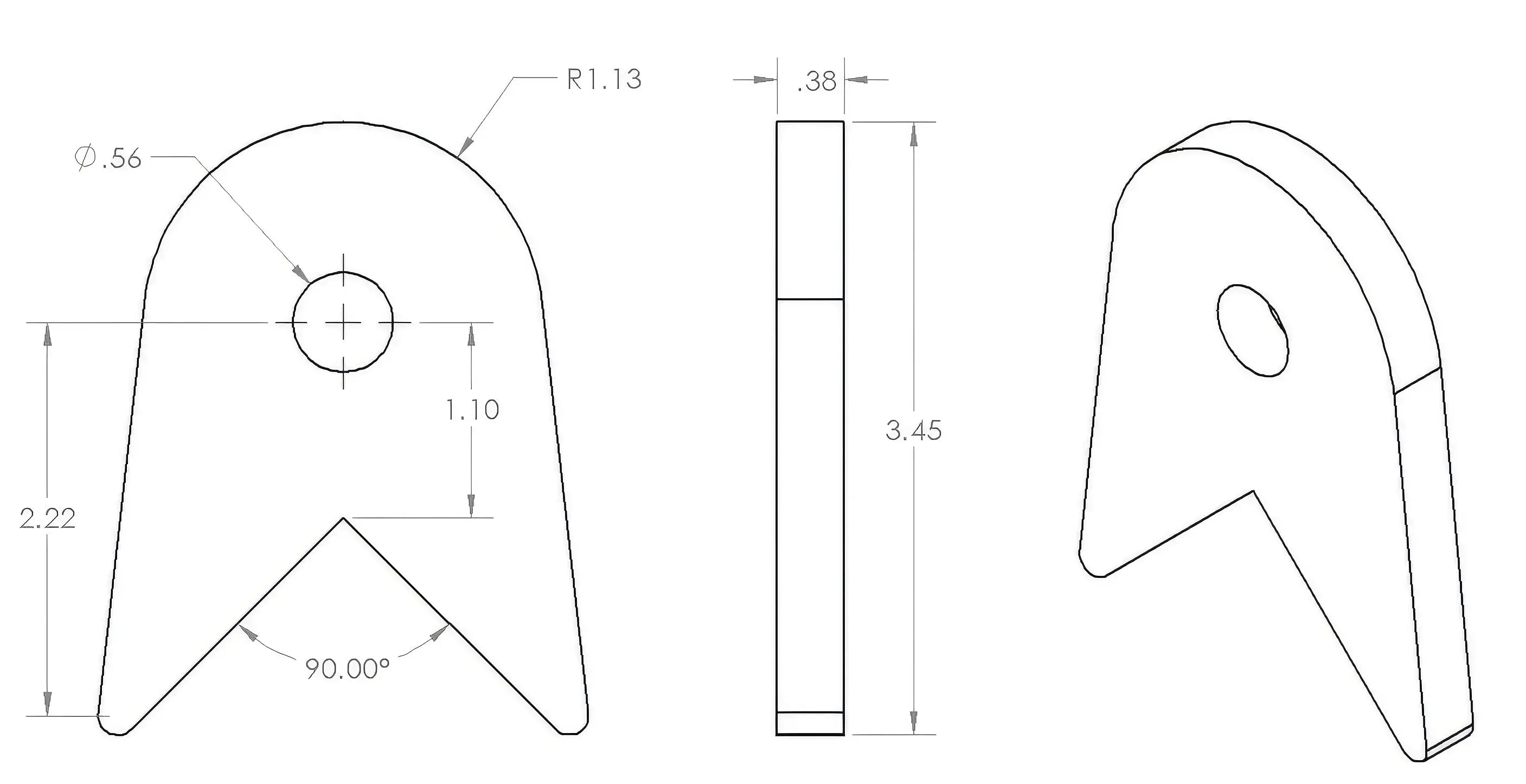

This short 90-degree link tab is ideal for mounting on the edge of a frame, truss, or square crossmember where space is limited. Made from 3/8" A36 steel and precision laser cut, it delivers strength and accuracy for link and suspension setups. It measures 1.25" from the base center to the bolt centerline and comes with a 9/16" bolt hole, which can be drilled to a different size if needed.
- Part Number: PN1289
- Material: 3/8" thick A36 steel
- Length: 1.25" from base center to bolt centerline
- Bolt Hole: 9/16" (drillable to custom size)
- Precision laser cut for consistent fit
- Sold individually
