1" to 9/16" Stainless Misalignment

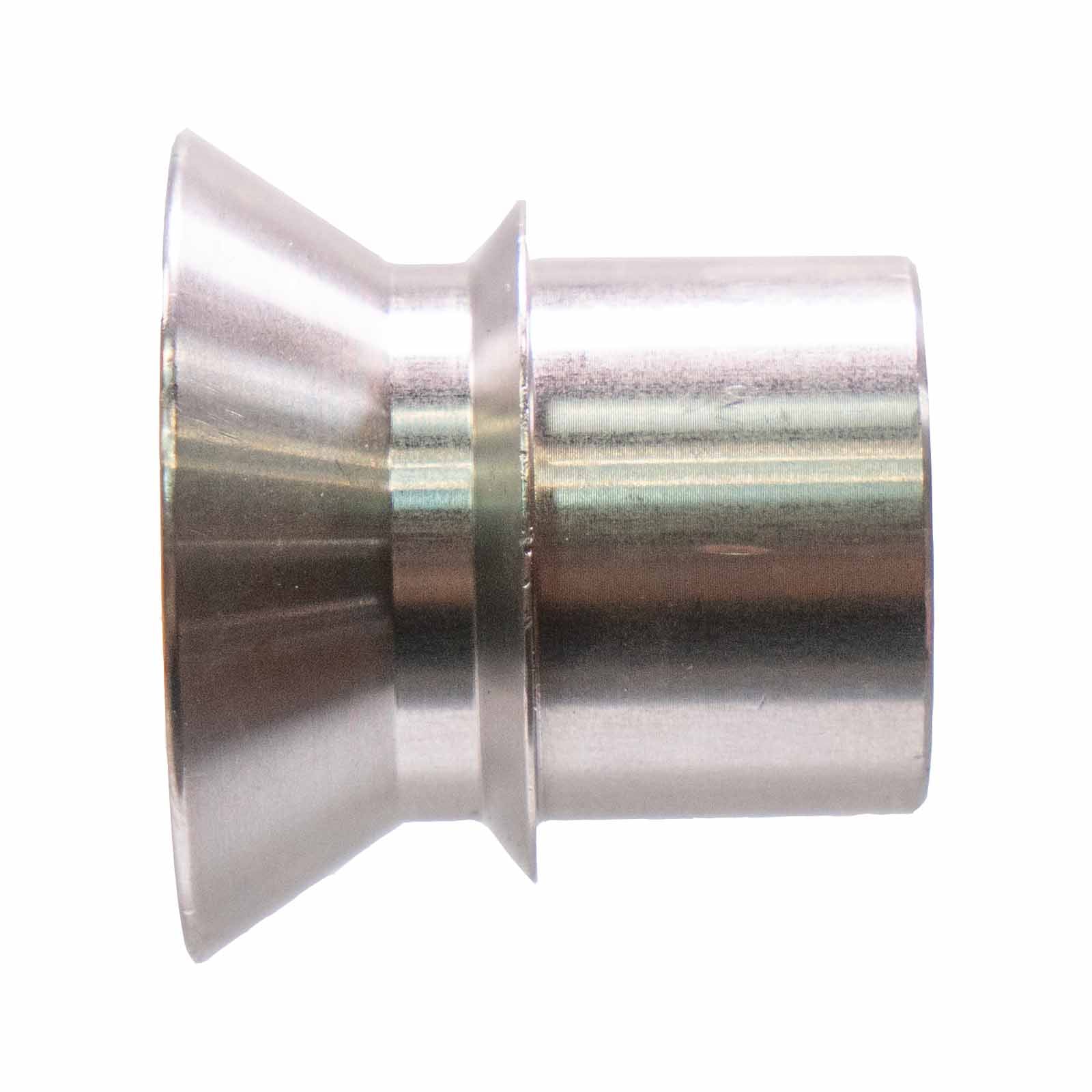

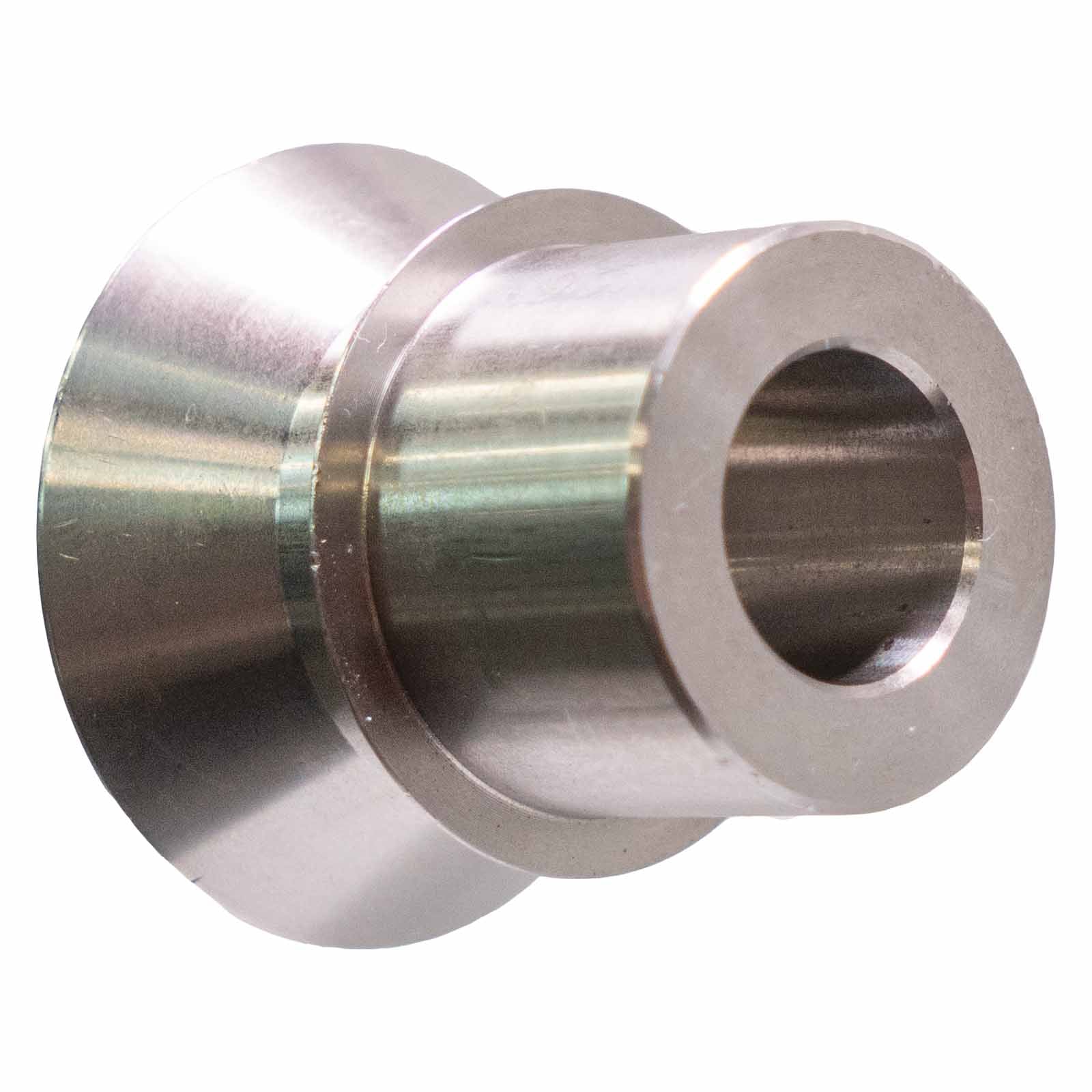

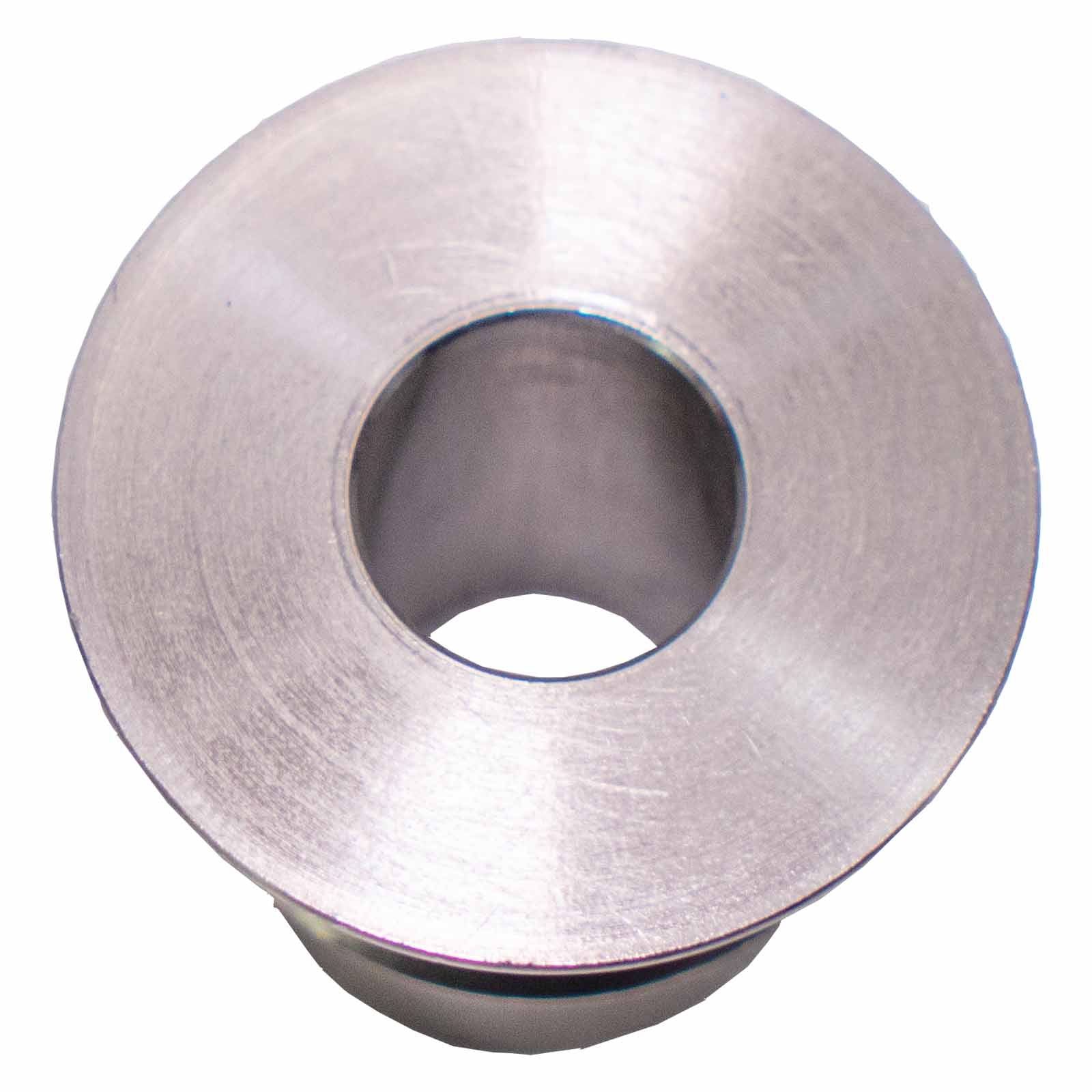

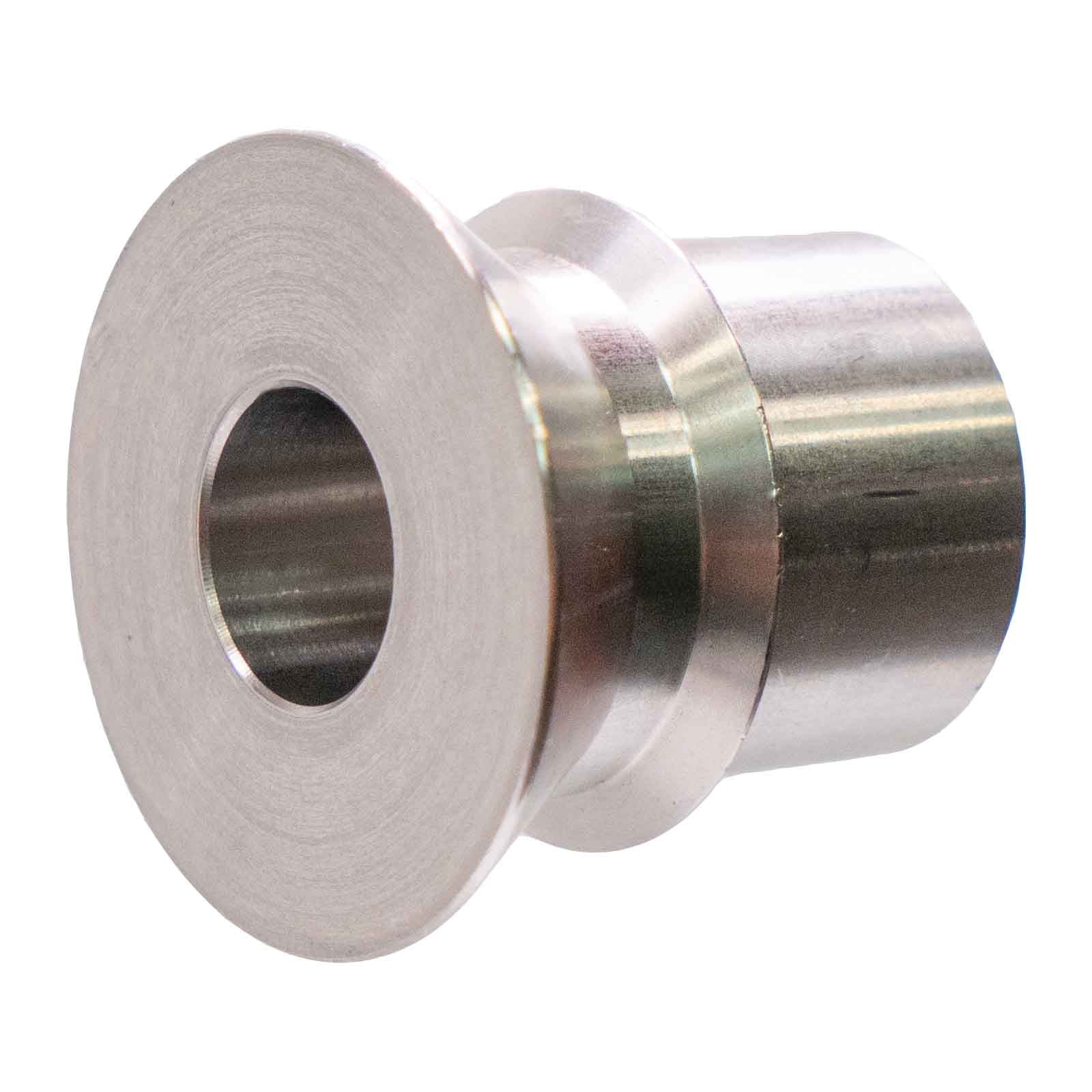

1" to 9/16" Stainless Misalignment Spacer

Reduces Bolt Size, Increases Articulation | Fits 1” Bore Heim Joints

This 1" to 9/16" stainless misalignment spacer is designed for 1” bore Heim joints and allows you to run a 9/16" bolt while maintaining a standard 2 5/8" mounting width. It’s ideal for dialing in bolt fitment without sacrificing articulation or strength.

The contoured shape increases pivot range, letting your 3- or 4-link suspension cycle freely. Machined from 303 stainless steel, this spacer holds tight tolerances, resists corrosion, and performs reliably in harsh off-road conditions.

• Part Number: PN1746
• Bore Fitment: For 1" bore Heim joints
• Bolt Size: Reduces to 9/16"
• Overall Width: 2 5/8" when installed
• Material: 303 stainless steel
• Function: Increases articulation and reduces bolt size
• Application: 3-link and 4-link suspension setups, off-road and custom fab
• Made in the USA from American-sourced materials
• Sold individually
