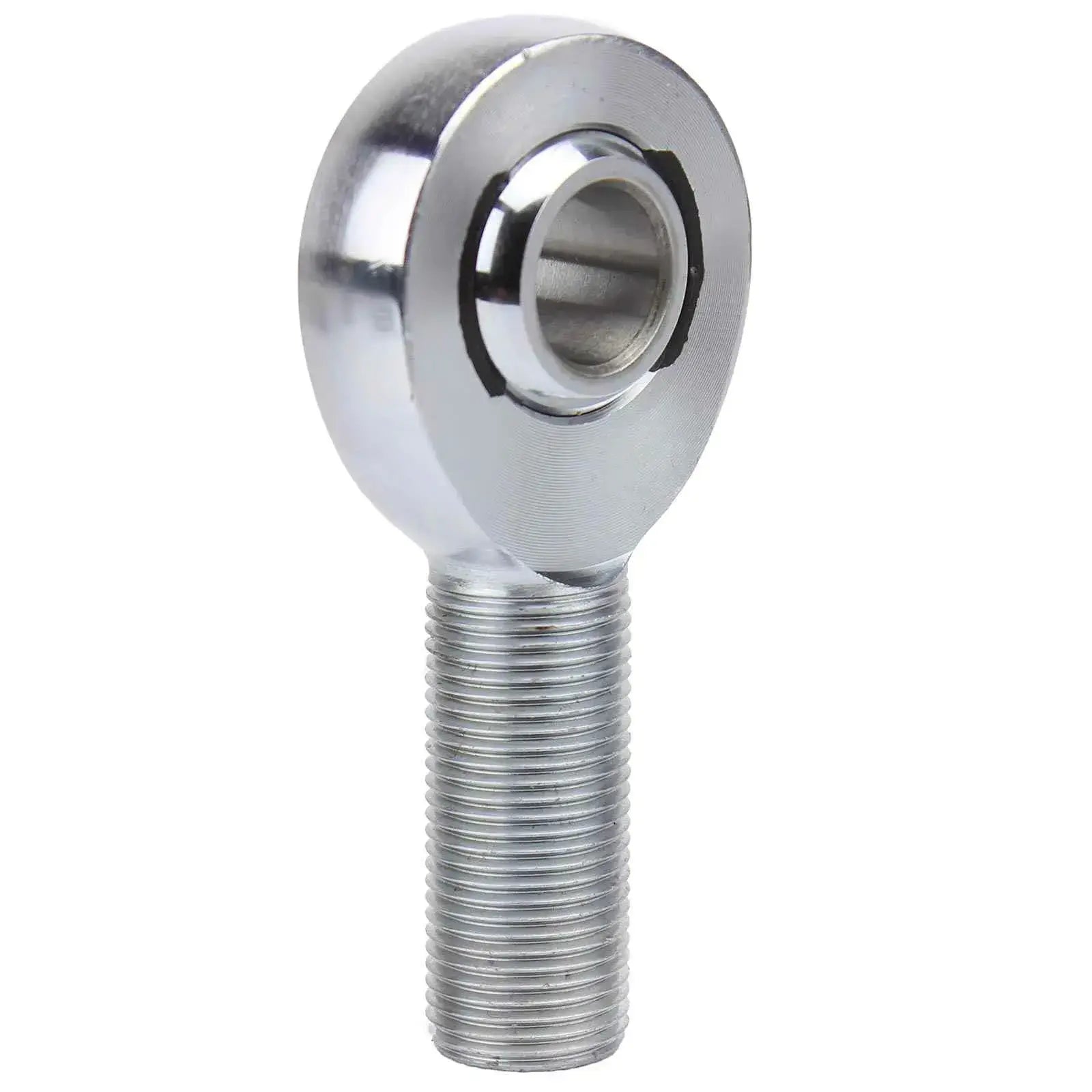

3/4" X 5/8" Rod End Left Hand (16 TPI)

3/4" x 5/8" Rod End - Left Hand (16 TPI)

Heat-treated chromoly strength with precise fit and long life

We build our rod ends the way we actually want to use them—strong, smooth, and made to last. This 3/4" shaft with a 5/8" bore and fine 16 TPI left-hand threads is crafted from high-quality 4130 chromoly, heat-treated for real-world abuse. The ball is 52100 bearing steel with a hard chrome finish, and the race is injection-molded, Teflon-impregnated nylon for low friction and long service life. Tested to the point of deformation (where heims actually fail in the field), these outperform the cheap mild steel options while still being priced for the DIY fabricator.

• Part Number: PN1405
• Thread Direction: Left Hand
• Thread Size: 3/4"-16 TPI
• Bore Size: 5/8"
• Material: Heat-treated 4130 chromoly housing
• Ball Material: 52100 bearing steel with hard chrome finish
• Race Material: Teflon-impregnated nylon
• Ultimate Radial Static Load: 40,500 lbs
• Made in the USA

Rod End Maintenance Tip

Only use Tri-Flow to service rod ends. Using WD-40, PB Blaster, or similar products will cause internal damage and void the warranty.

Sold Individually
