4 Link Kit - Dual Triangulated

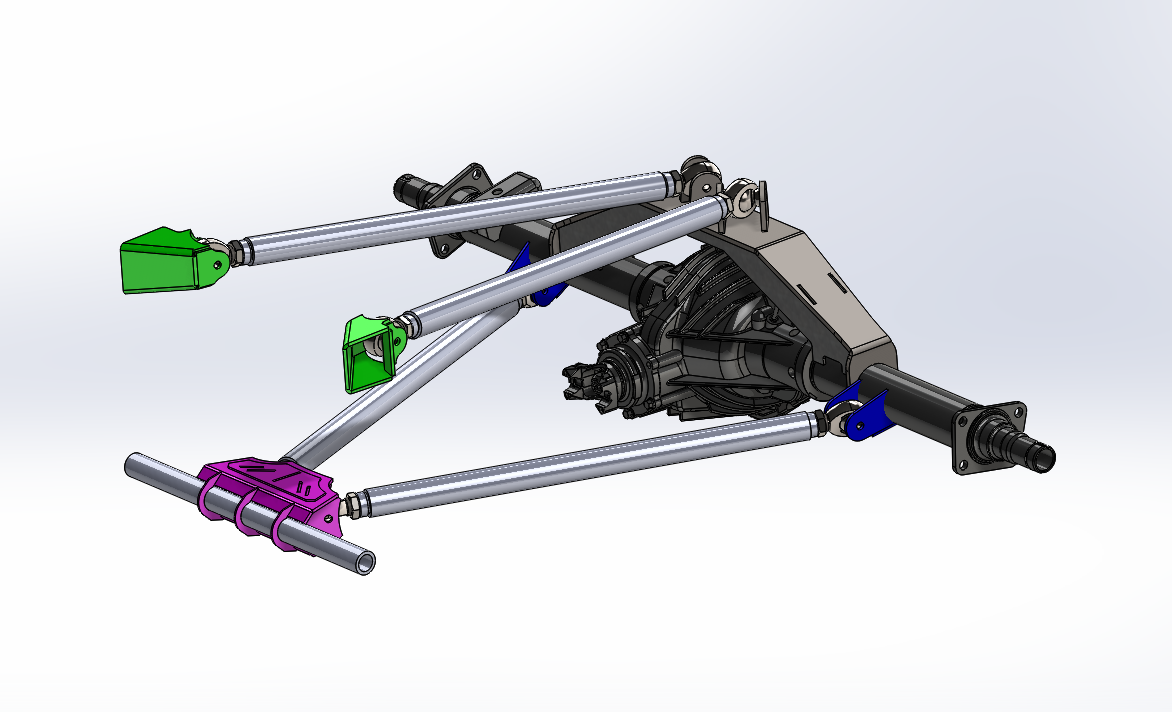

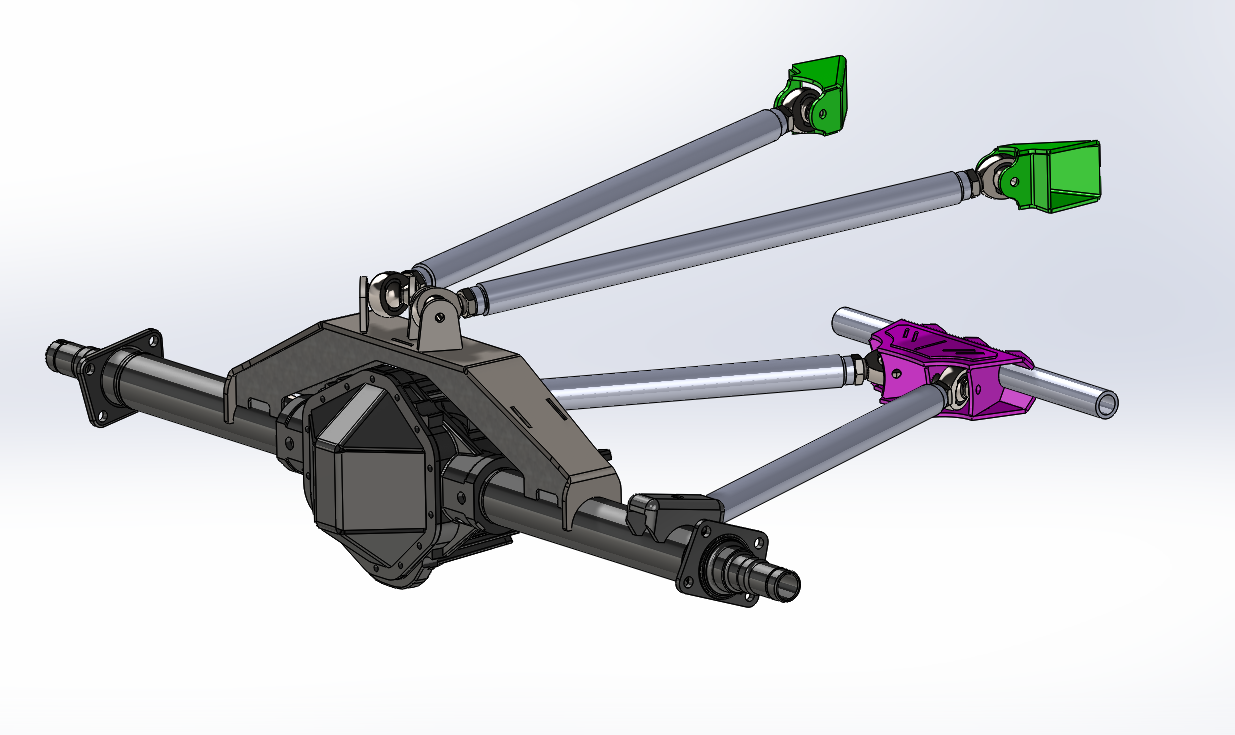

Complete dual triangulated suspension kit for custom builds

Building a dual triangulated 4-link suspension doesn't have to be complicated or expensive. This kit takes the guesswork out of geometry so you can focus on getting your rig dialed in. Compatible with coilovers, emulsion shocks, or coil springs, it's ready for anything from a fresh build to a trail-proven upgrade. Includes all the brackets, heims, hardware, and misalignments you need to make it happen—minus the tubing. Just note—you may need to modify your brake lines, so check out our brake line section for the right fittings, tabs, and flex lines.

Key Features

• Part Number: PN1431
• Designed for dual triangulated 4-link suspension setups
• Compatible with coilovers, emulsion shocks, or coil springs
• Includes frame and axle brackets, heims, hardware, and misalignments—minus the tubing
• Ideal for custom builds or trail-use upgrades

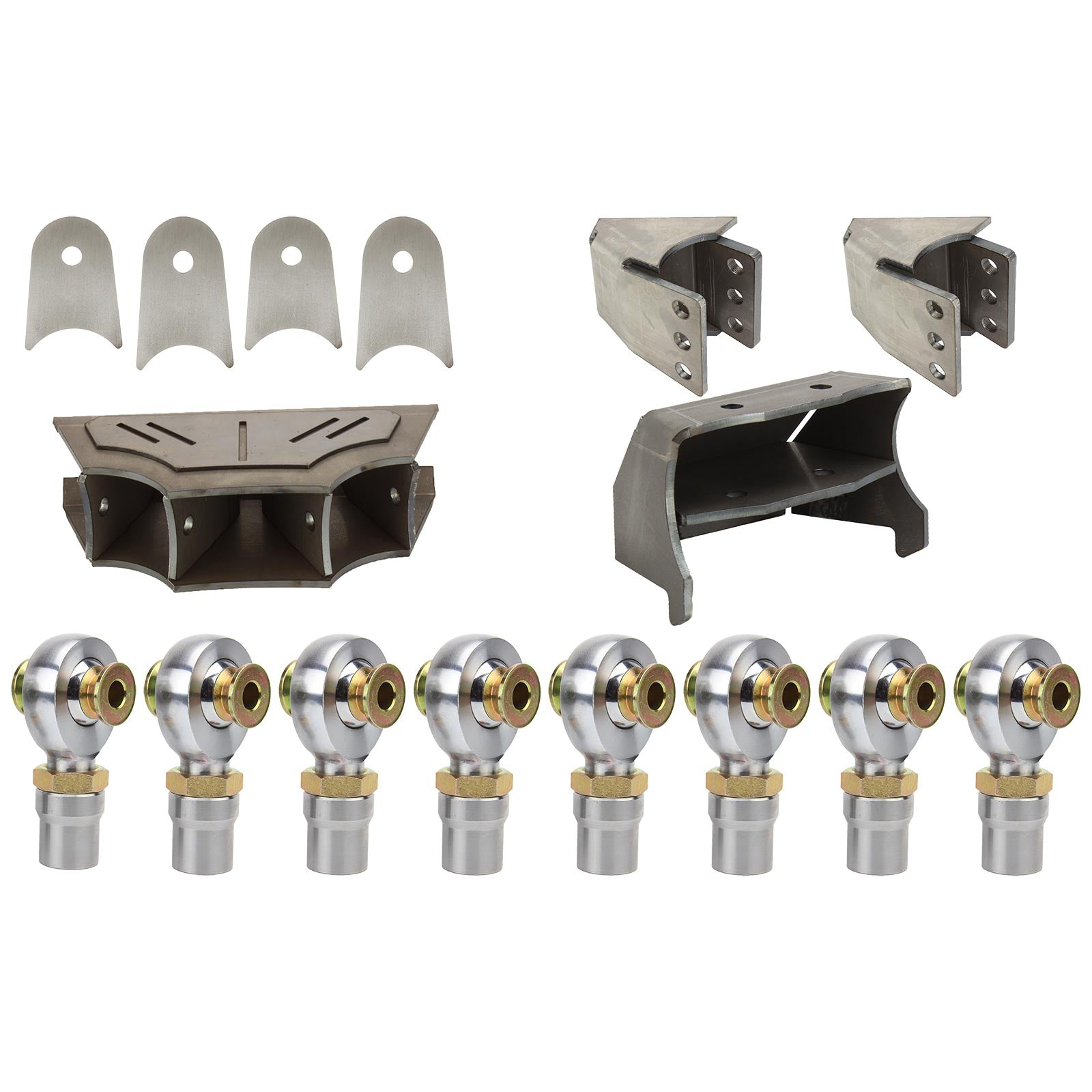

What's Included in This Kit

• 4 - RH 1.25" Heims with jam nuts and weld-in tube adapters
• 4 - LH 1.25" Heims with jam nuts and weld-in tube adapters
• 16 - Stainless steel misalignment spacers
• 2 - Upper frame link brackets
• 4 - Upper link tabs or 1 upper link bracket (varies by configuration)
• 1 - Lower dual-triangulated link bracket
• 2 - Small 3" link tabs
• 2 - Large 3" link tabs
• 1 - Complete grade 8 bolt kit

Available Kit Options

Truss Option:
No Truss
Add Axle Truss

Axle Upper Link:
Flat Link Tabs
Upper 4 Link Bracket
Upper Inside Link Bracket

Upper Link Mount:
3 Legged Link
Adjustable Upper Link

Rod End Maintenance Tip

Only use Tri-Flow to lubricate rod ends. Using WD-40, PB Blaster, or similar products will cause internal damage and void the warranty.
