Standard 1 Ton Tie Rod Kit

Standard 1 Ton Tie Rod Kit

This is just what the doctor ordered when you just jammed a rock with the stock 1/16" thick tie rod or a solid tie rod. These are 1.5" in diameter and .25" thick and can take a hit over and over again so do it right the first time with something serious from Ruffstuff!

The Taper is .749"-.748", if you are replacing a smaller TRE you will want to ream the taper to .75".

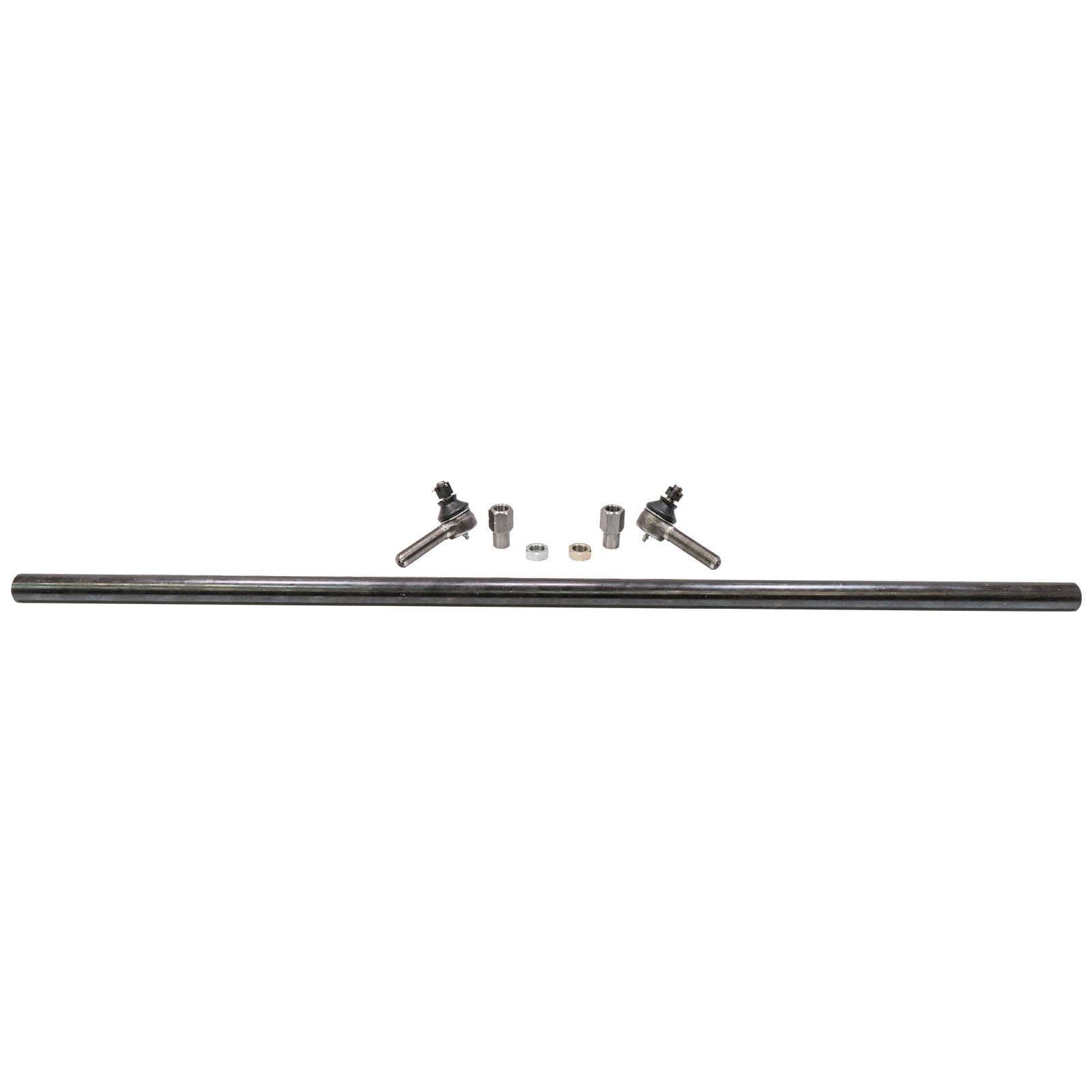

Kit Includes:

• 1 54" of 1.5" X .25" wall DOM tubing

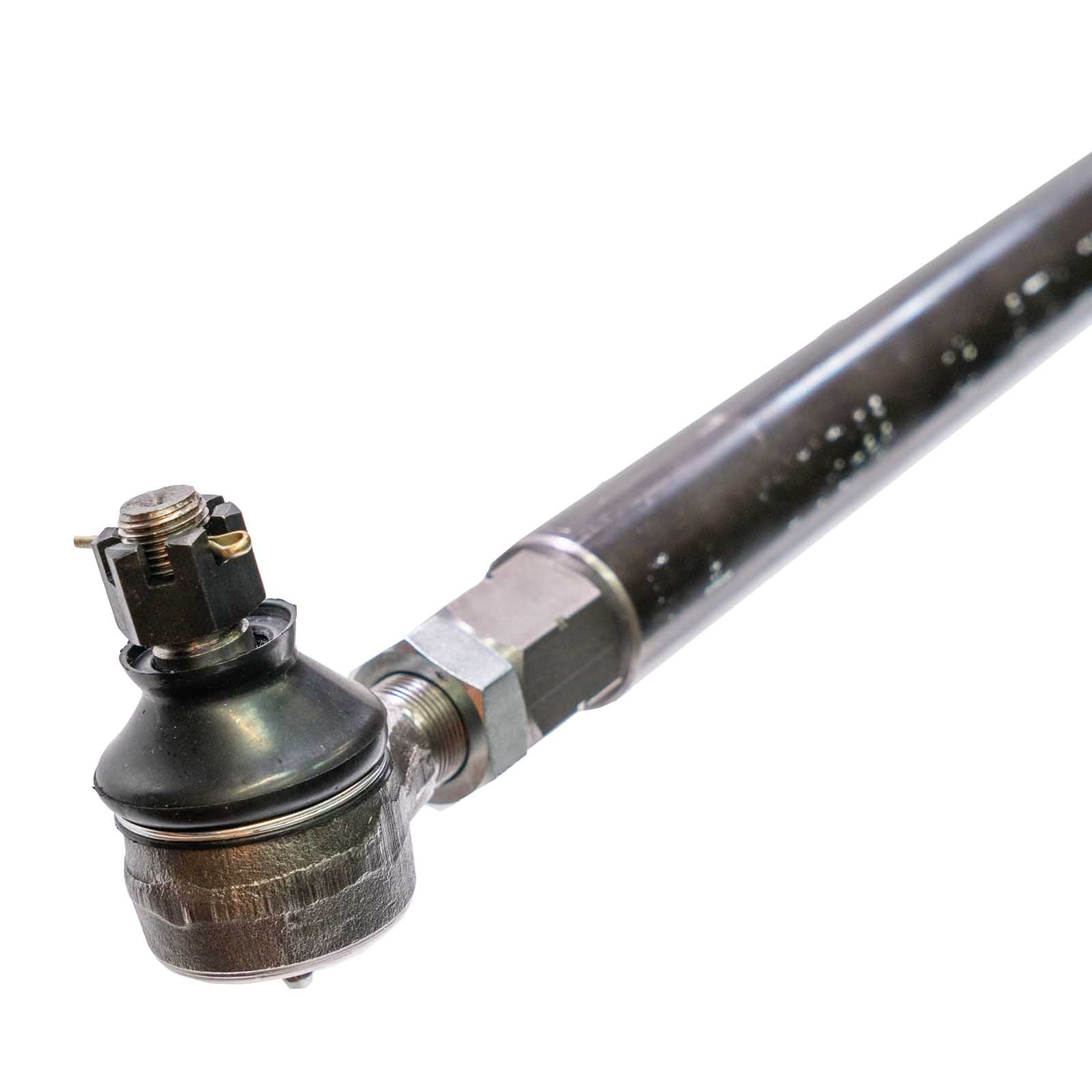

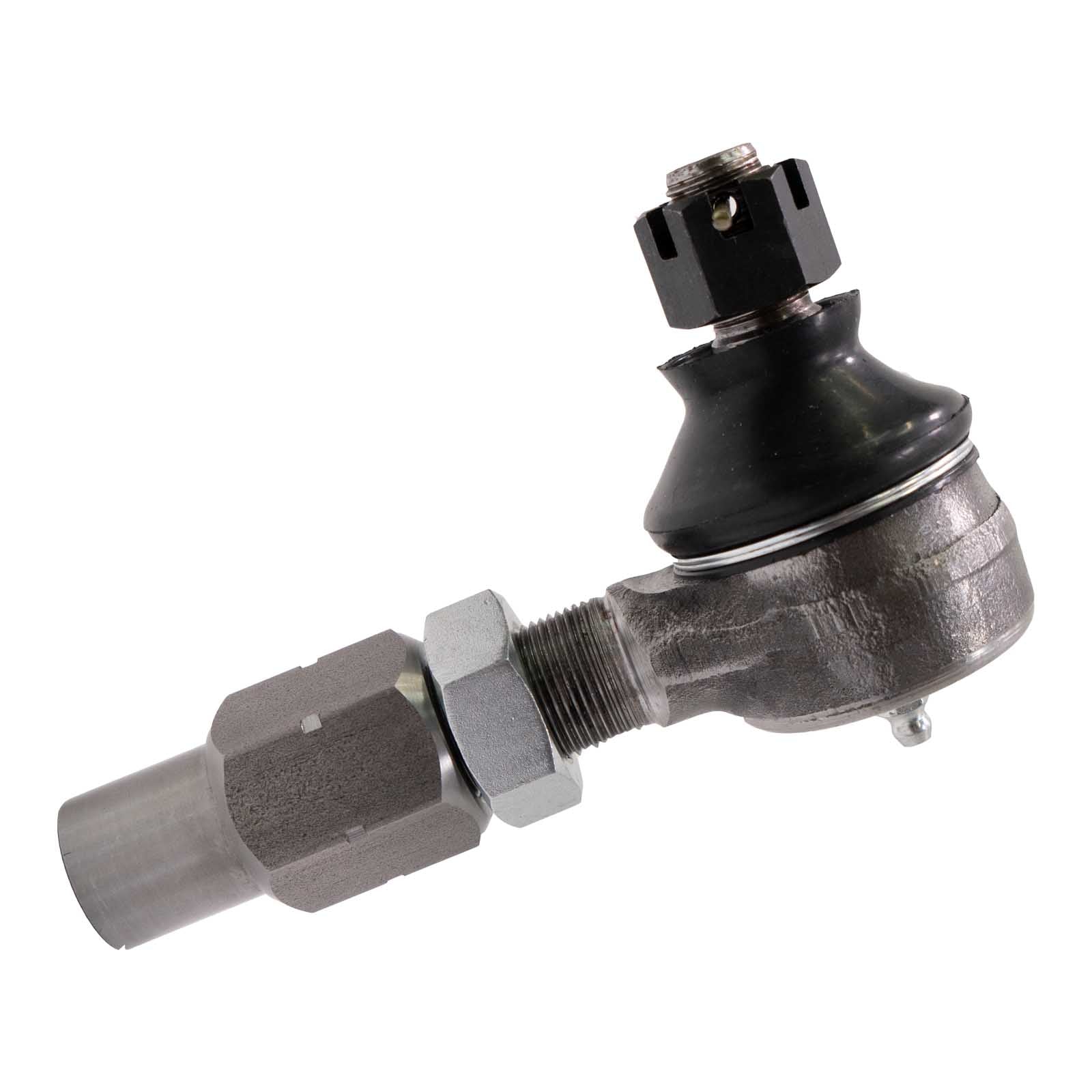

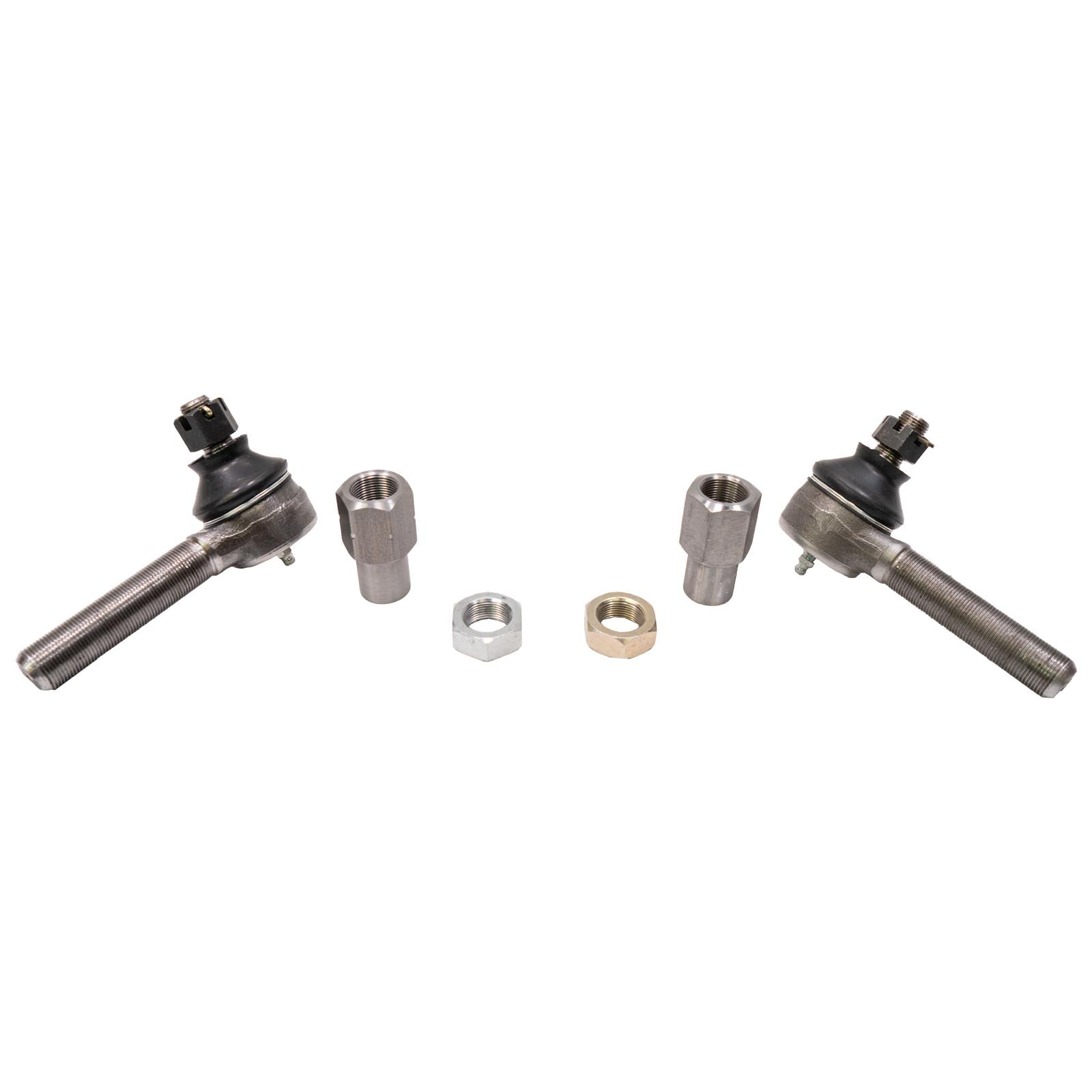

• 2 Standard Tie Rods with castle nuts

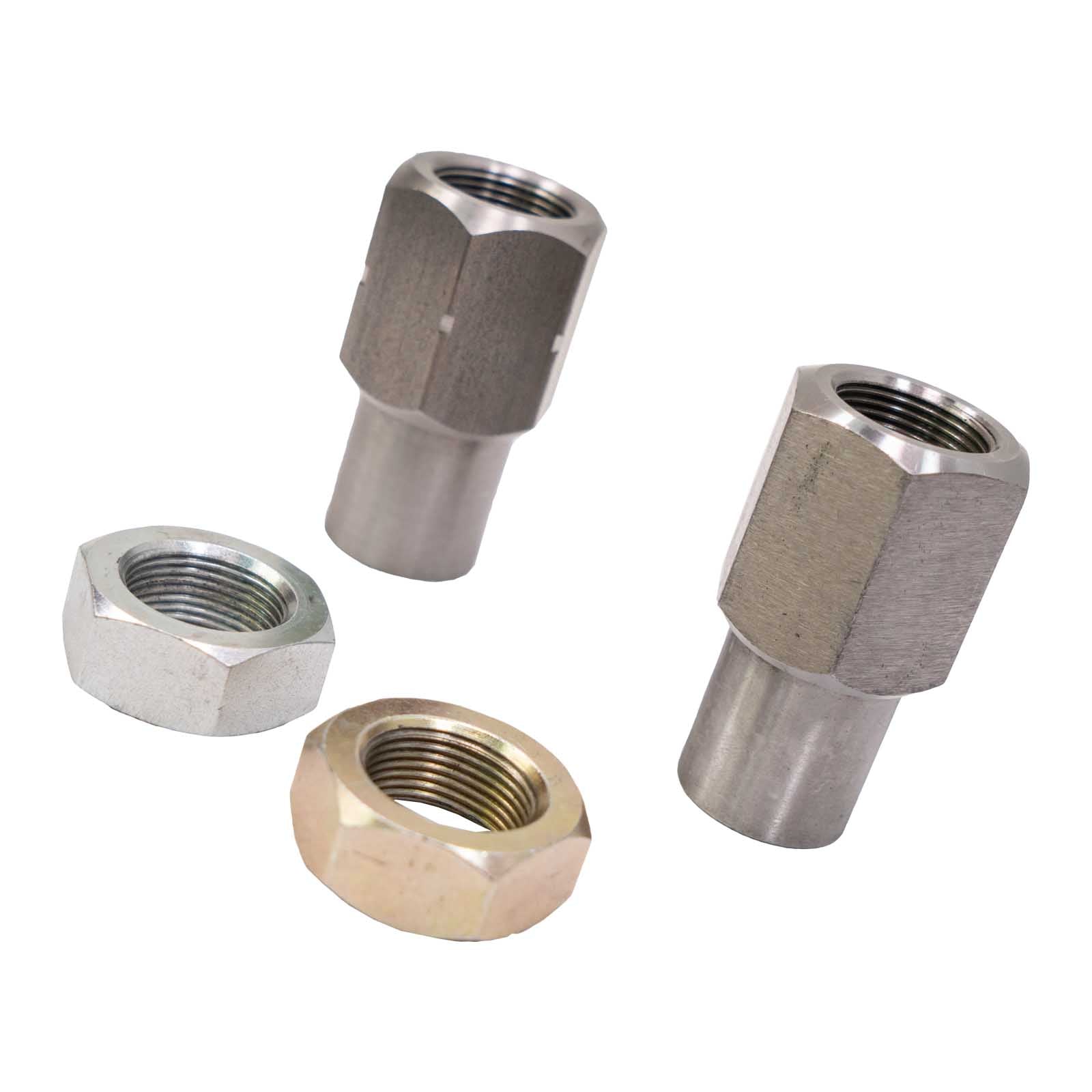

• 1 RH - 7/8" Hex Head Weld Bungs, 18TPI for Tie Rod Ends
• 1 LH - 7/8" Hex Head Weld Bungs, 18TPI for Tie Rod Ends
• 1 RH - 7/8" Jam Nuts, 18TPI for Tie Rod Ends
• 1 LH - 7/8" Jam Nuts, 18TPI for Tie Rod Ends

Additional Products you may need to install this kit:

• Tapered Knuckle Inserts. (Standard GM taper)
• 90 Degree Steering Stabilizer Bracket
• Flat Mount Steering Stabilizer Bracket
