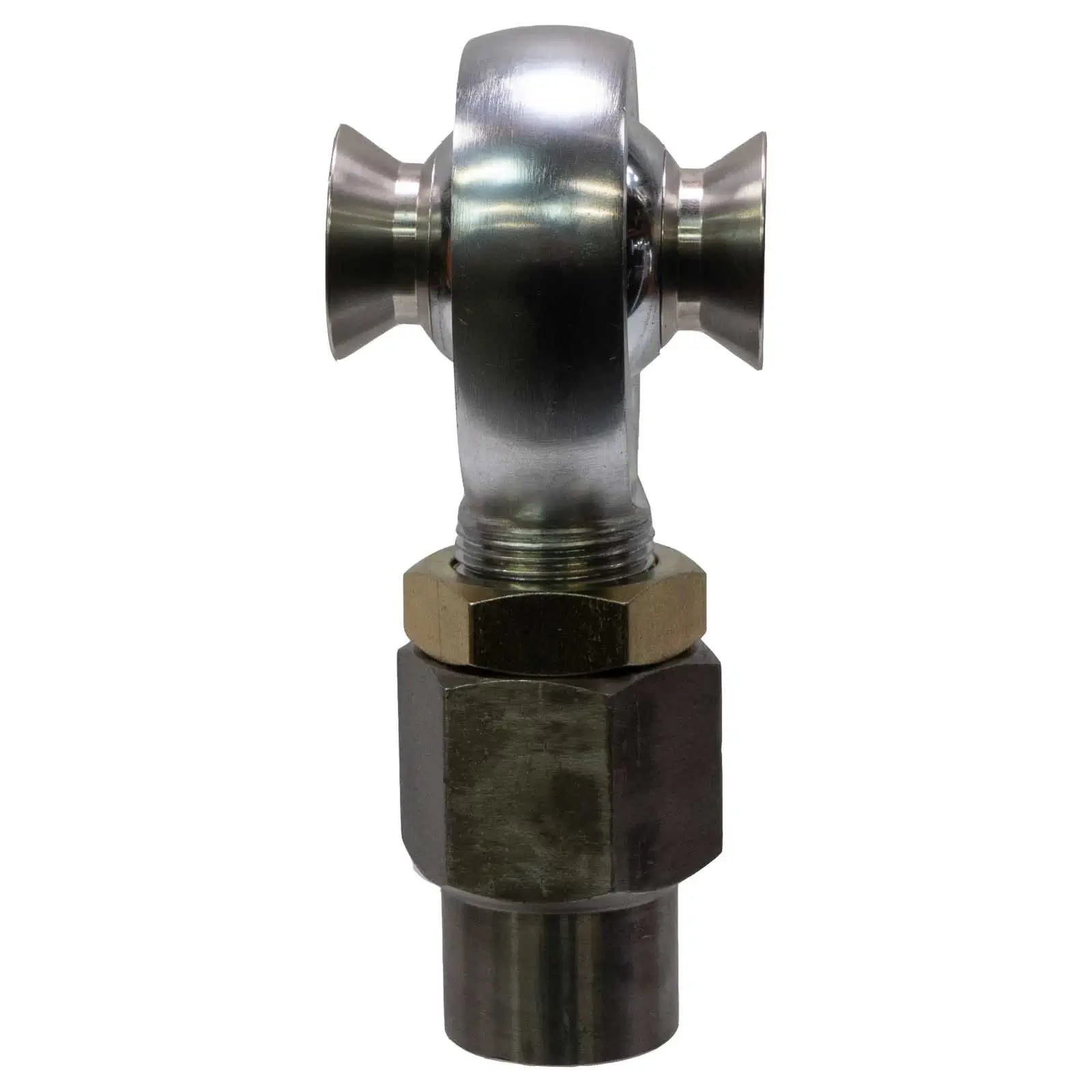

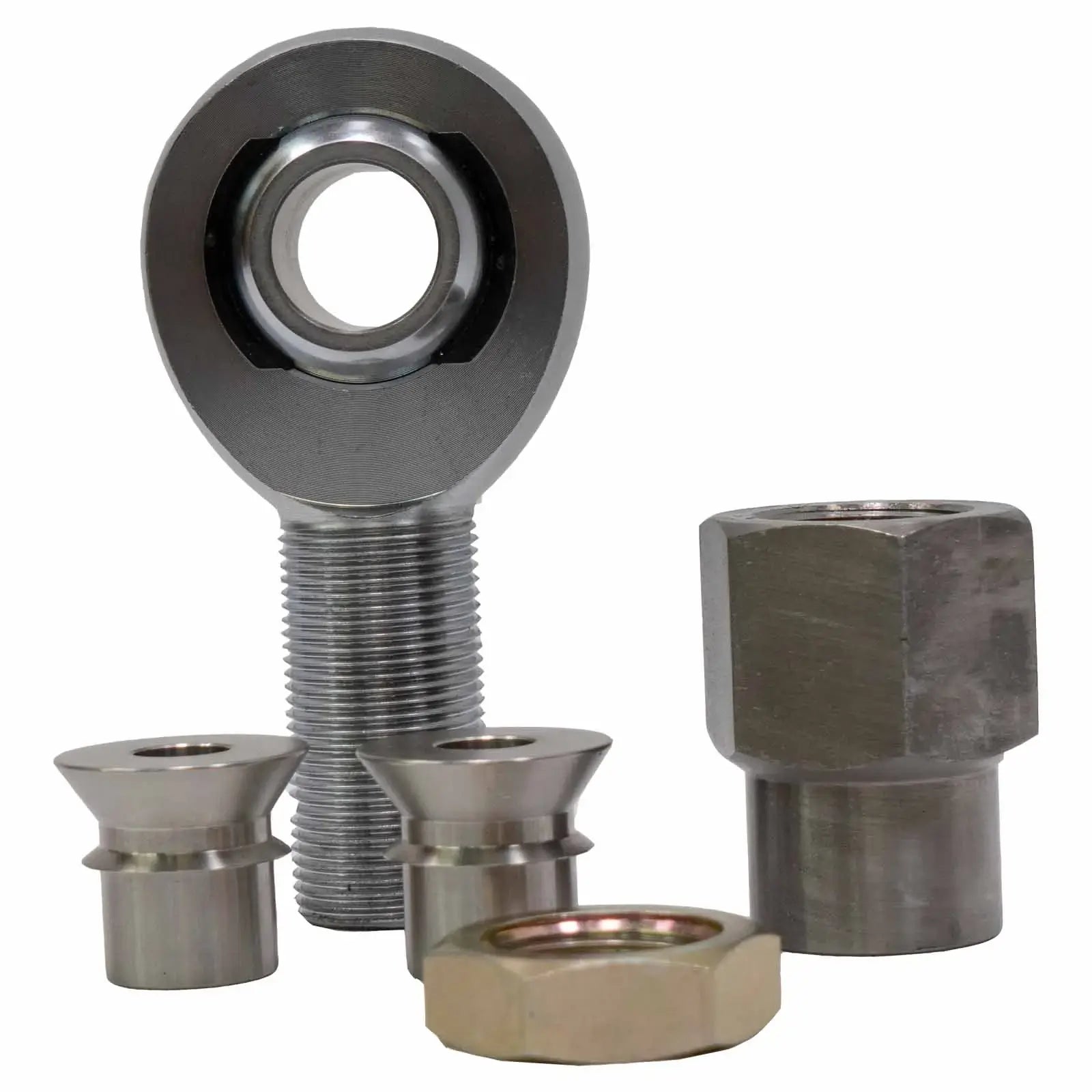

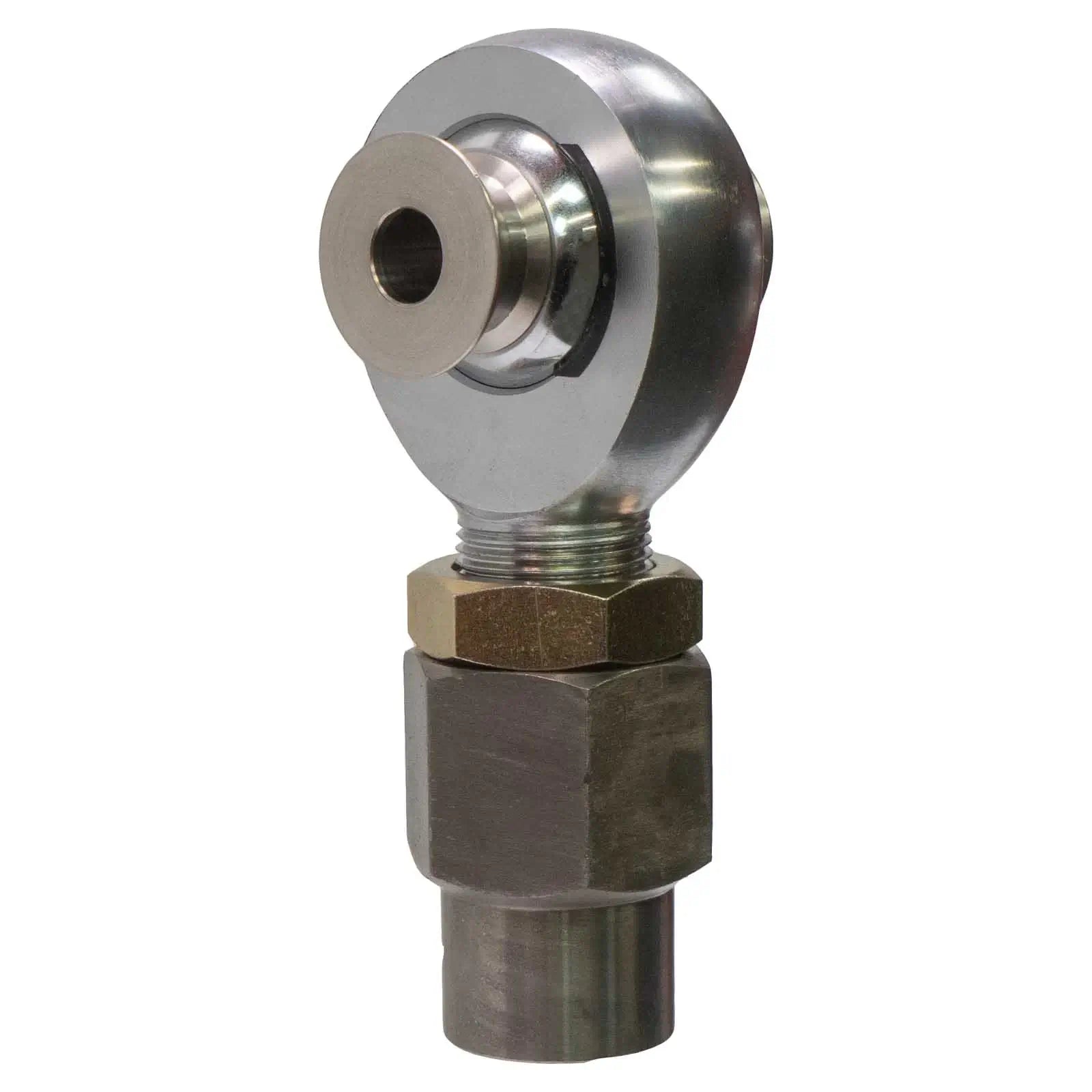

1.25" Rod End Kit

1.25" Rod End Kit

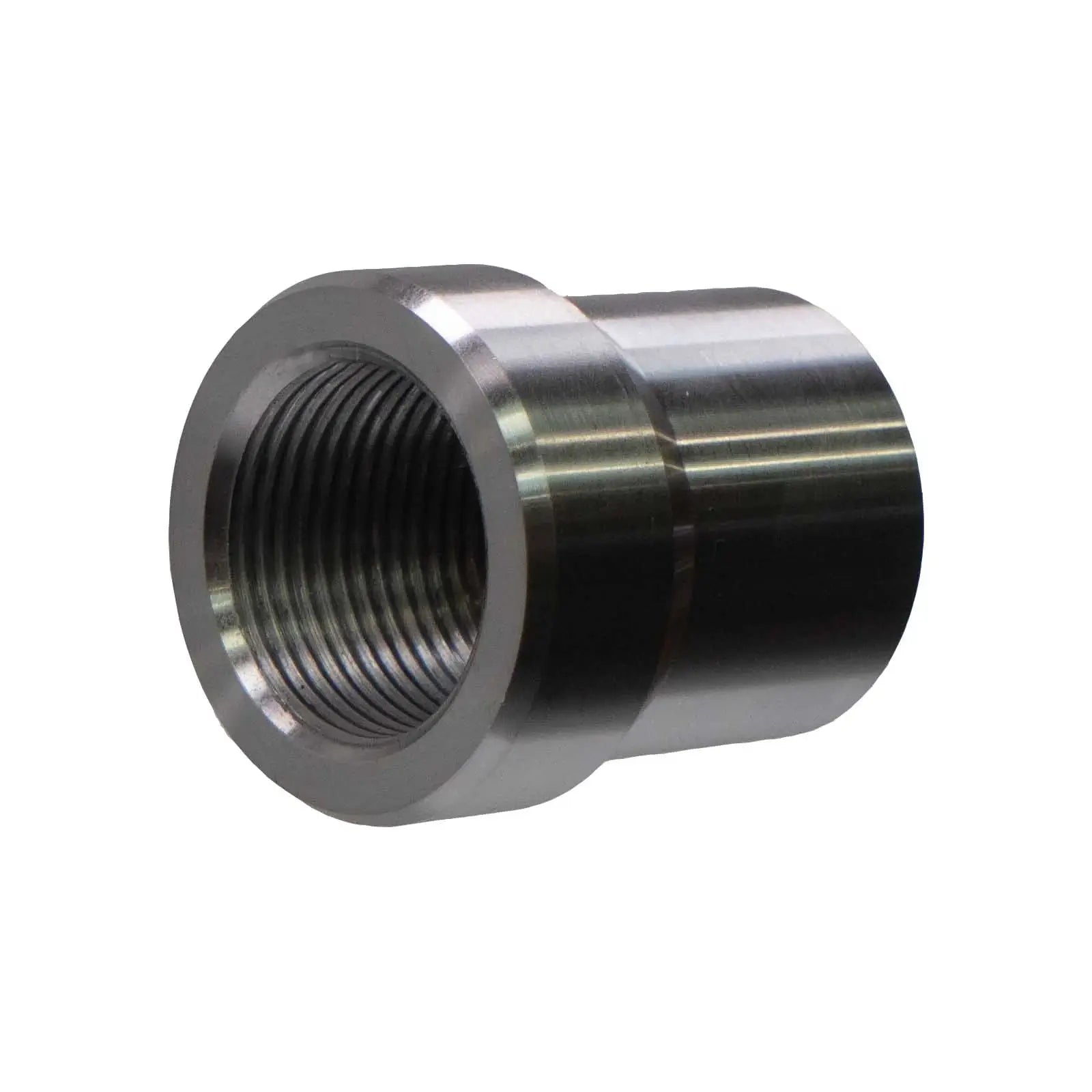

Weld-In Tube Adapter for 1.5” ID Tubing | 1020 Steel | Made in the USA

This tube adapter is built for folks who want to do it once and do it right. Designed for 1.25” Heim joints with 12 TPI right-hand threads, it fits snugly into 1.5” ID tubing — ideal for .120" or .250" wall DOM.

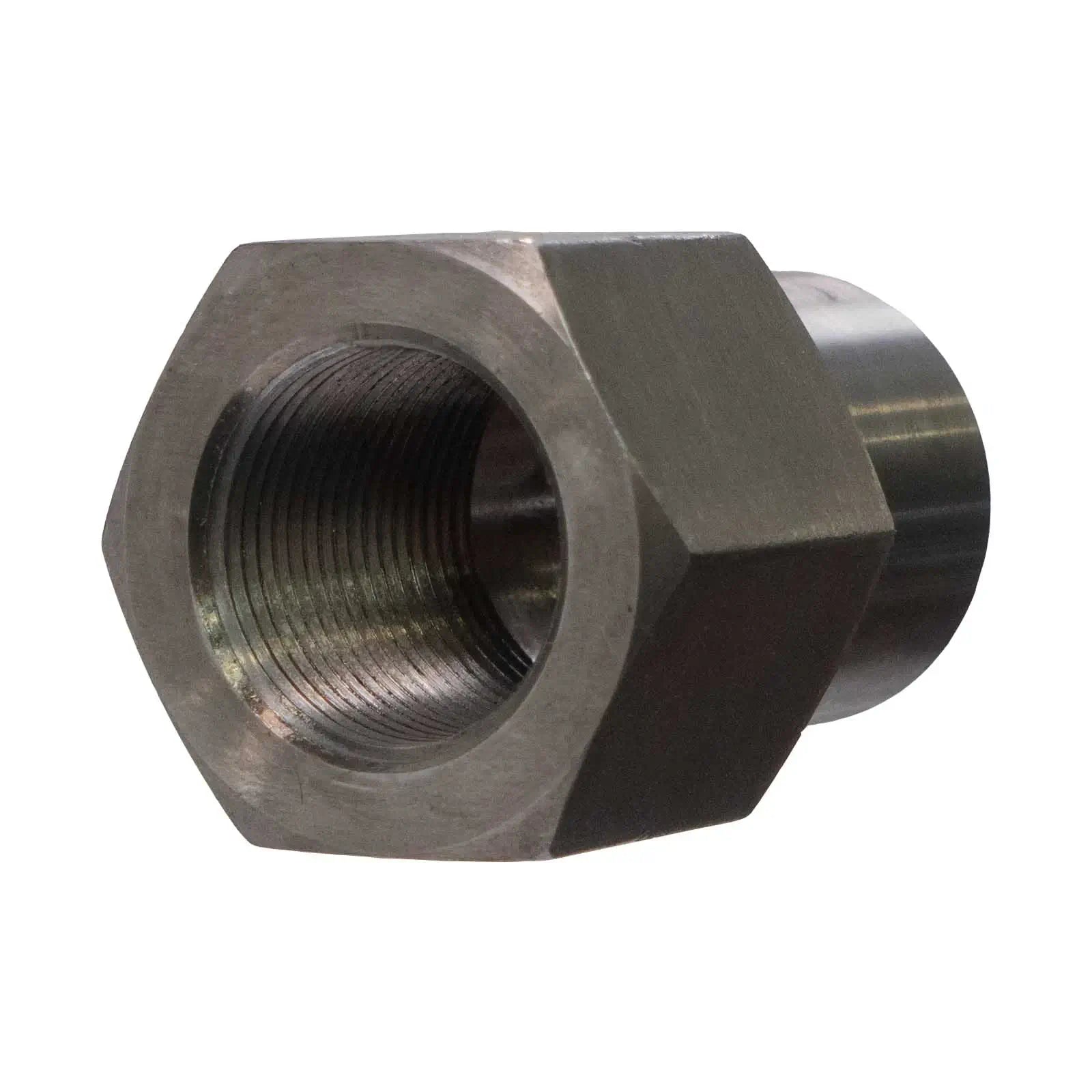

The 1.5” hex head makes adjustments simple with a standard wrench, no need for vice grips or fighting with your setup. When paired with a left-hand adapter, you can dial in link length without removing anything — just loosen the jam nuts and rotate.

Key Features:

• Part Number: PN1573

• Thread Size: 1.25"-12 TPI (Right-Hand)
• Tube Fitment: Fits 1.5" ID tubing
• Hex Size: 1.5"
• Material: Machined from solid 1020 steel
• Works with .120" or .250" wall DOM
• Weld-in design for custom suspension or steering links
• Made in the USA
• Sold individually

Welding Tip: Correct welder settings are key — start your puddle on the tube, not the adapter. Never weld with the rod end threaded in, and allow full cooling before threading rod ends to prevent warping or seizing.
