7/8" X 7/8" Rod End Kit

7/8" x 7/8" Rod End Kit

Heavy-Duty Chromoly Heim Kit with Multiple Fitment Options

This kit provides everything you need to set up a strong and reliable heim joint connection for steering, suspension, or custom linkage applications. Built around a heat-treated Chromoly rod end, it’s designed to handle serious abuse while giving you the flexibility to choose tube adapter sizes, thread direction, and misalignment options for your exact build.

Key Features

• Part Number: PN1575
• Heat-treated Chromoly 7/8" x 7/8" bore heim joint
• Precision tube adapters for 1" or 1.5" ID tubing
• Choice of stainless steel misalignments for various bolt sizes
• Includes jam nut for secure installation
• Perfect for steering, suspension, or custom link builds

What's Included

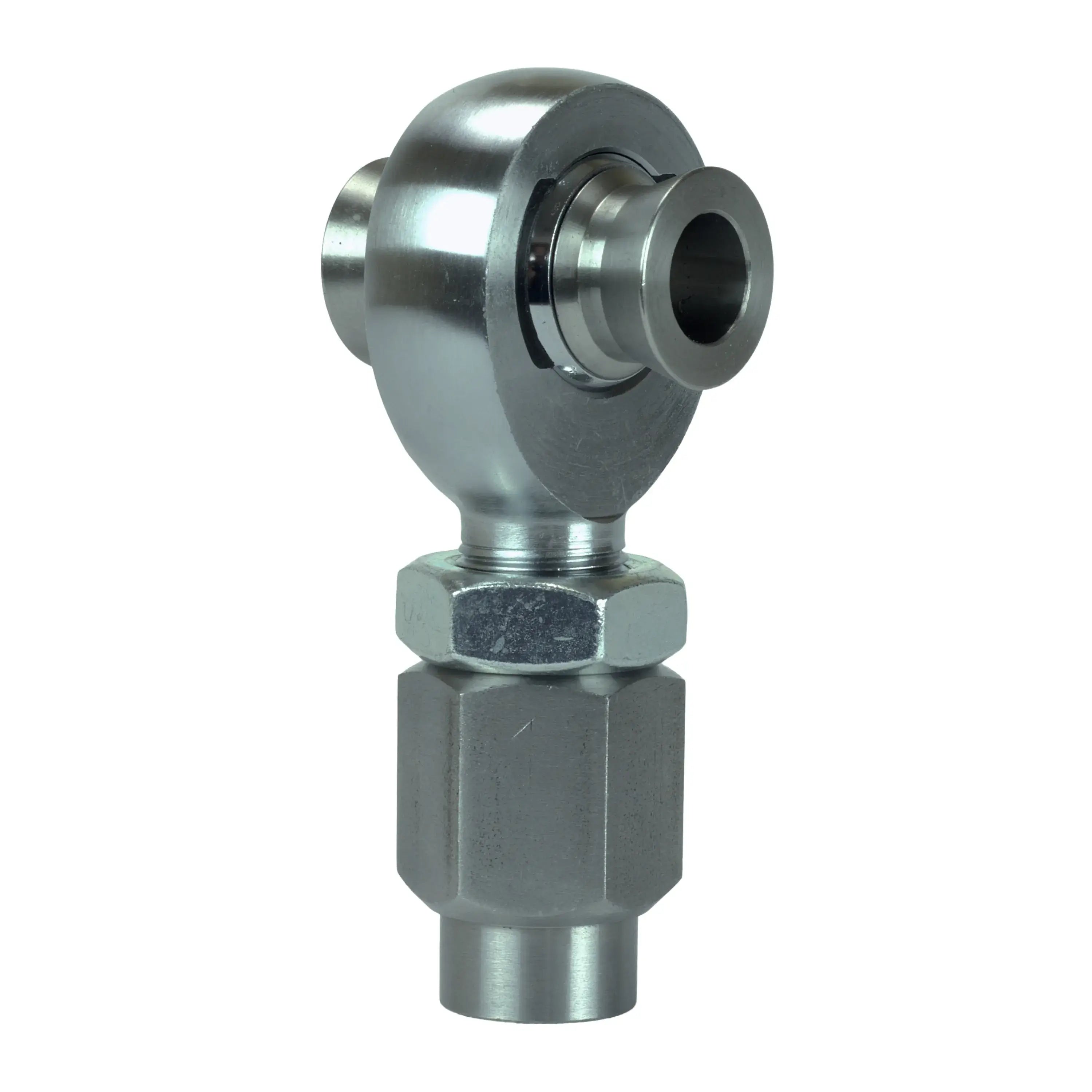

• 1 – 7/8" x 7/8" Bore Heat-Treated Chromoly Heim
• 1 – 7/8" Tube Adapter (1.5" ID or 1" ID)
• 1 – 7/8" Jam Nut
• 2 – Stainless Steel Misalignment Spacers (varies by selection)

Available Kit Options

Misalignment Material

• 7/8" - 3/4" Stainless Steel Safety
• 7/8" - 3/4" Stainless Steel
• 7/8" - 5/8" Stainless Steel
• 7/8" - 9/16" Stainless Steel
• 7/8" to 3/4" Narrow Stainless
• 7/8" to 9/16" Narrow Stainless

Thread Direction

• Left Hand Thread
• Right Hand Thread

Tube Adapter Tube ID

• 1.5" ID Hex Tube Adapter
• 1" ID Hex Tube Adapter

Maintenance Tip: We only recommend Tri Flow to service our rod ends. Using products like WD-40 or Blaster will damage the liner and void your warranty.

Welding Tip: Adjust welder settings properly and start your puddle on the tube to prevent thread warping. Never weld the tube adapter with the rod end threaded inside, and allow all parts to cool completely before assembly.
