5/8 Rod End Left Hand (18 TPI)

5/8" Rod End - Left Hand (18 TPI)

Heat-treated chromoly strength with real-world load ratings

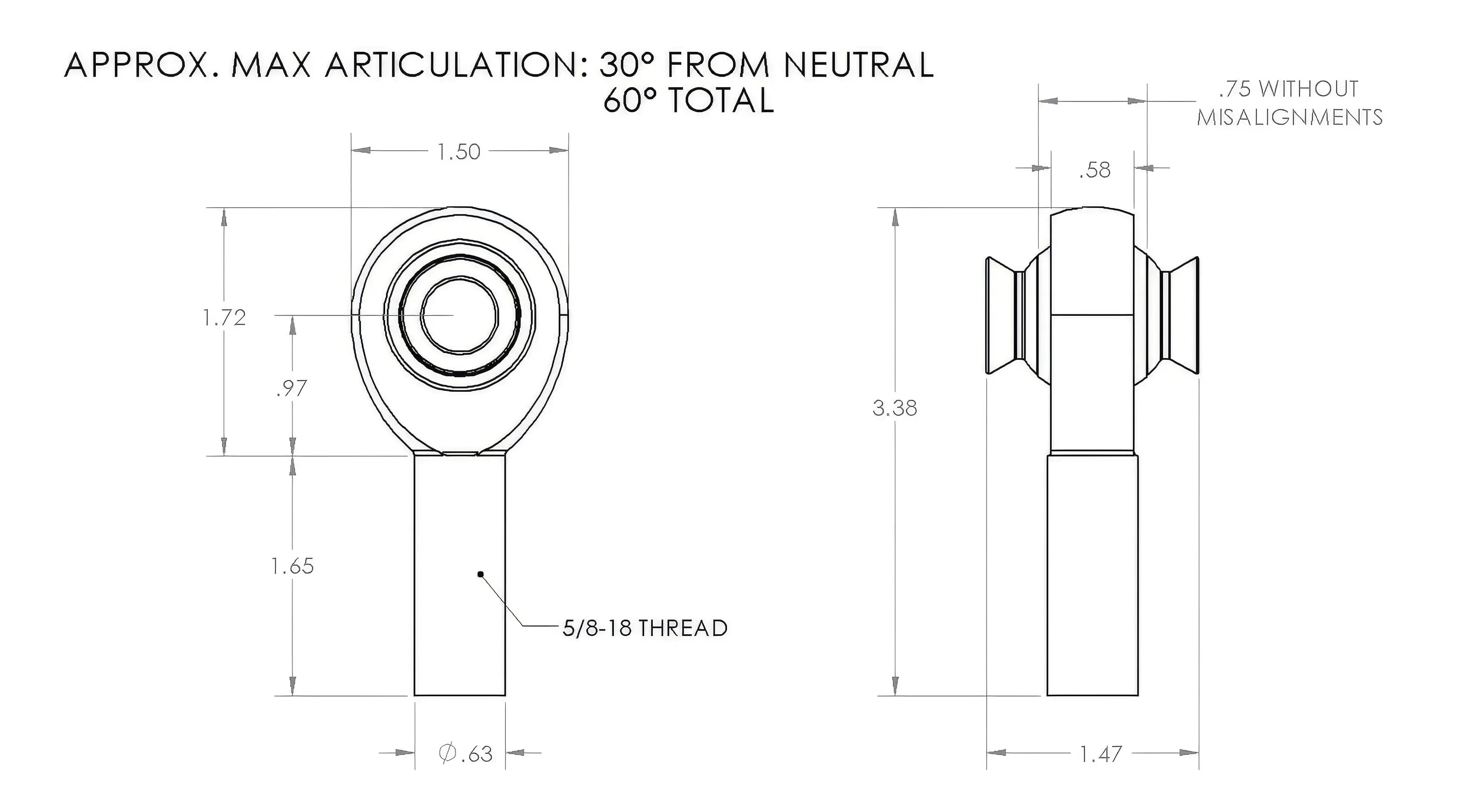

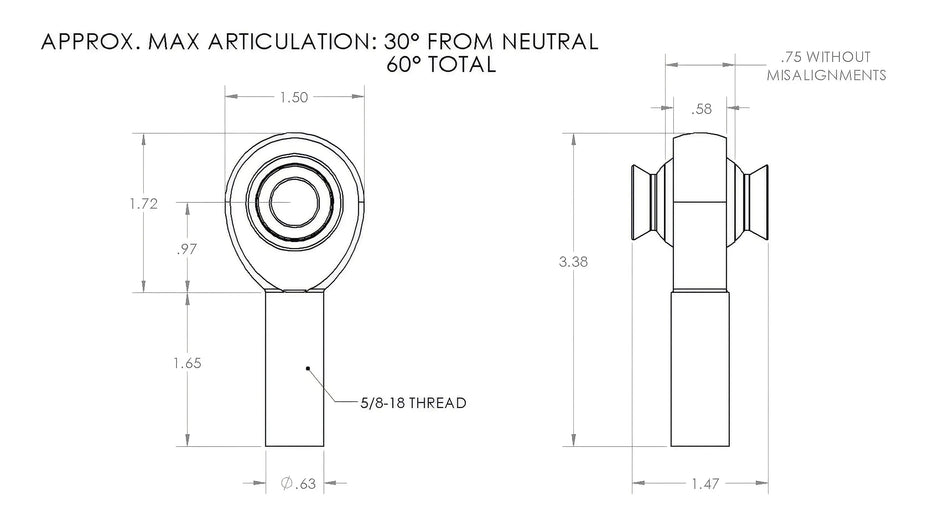

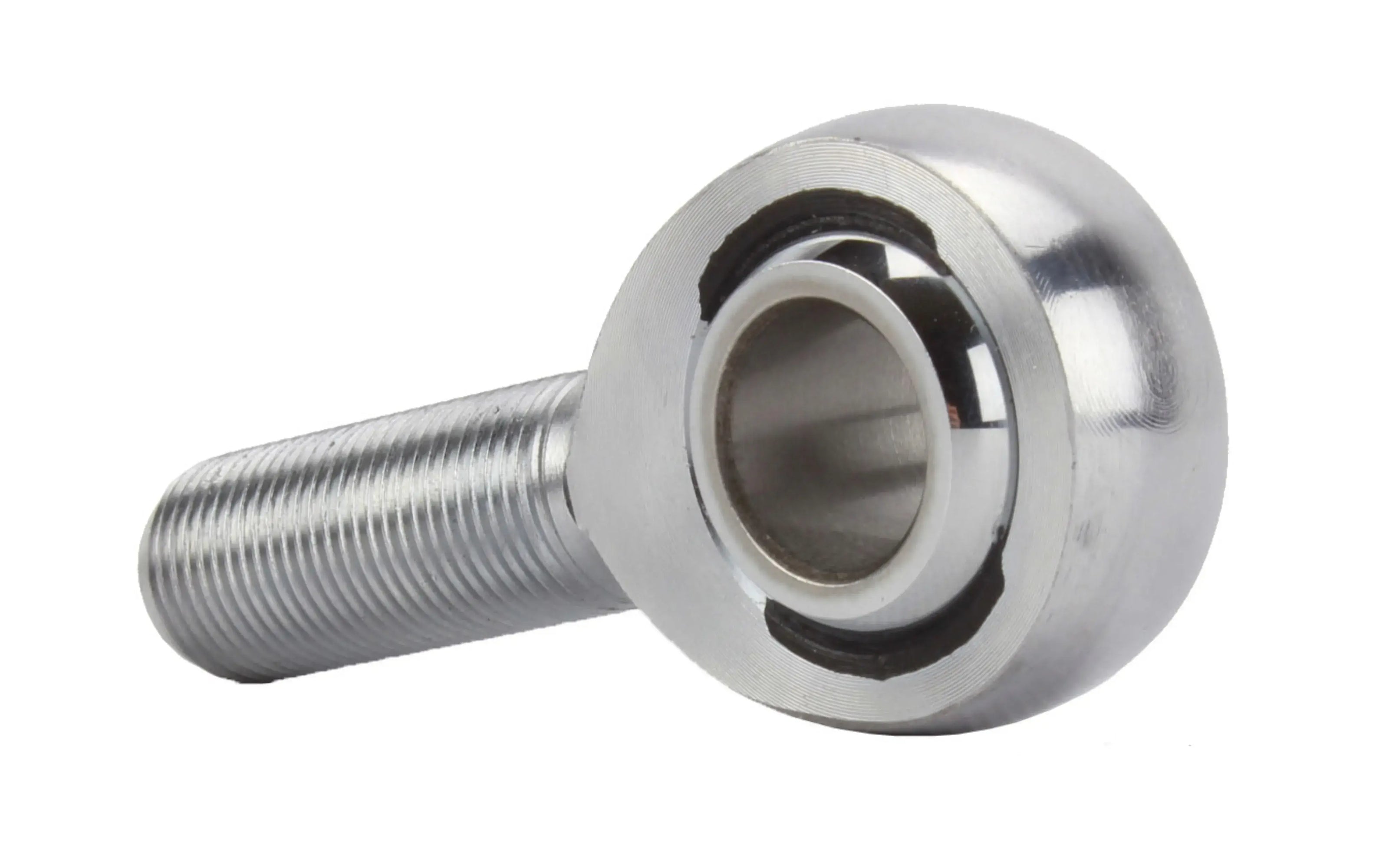

This 5/8" x 5/8" left-hand thread rod end is built the way we wanted heim joints to be—tough, affordable, and reliable. Featuring a heat-treated 4130 chromoly housing, 52100 bearing steel ball with a hard chrome finish, and a Teflon-impregnated nylon race, it delivers smooth movement and long service life in demanding off-road or fabrication setups. Rated at 18,000 lbs ultimate radial static load (measured at deformation, not catastrophic failure), it’s a no-nonsense choice for steering, suspension, or custom link projects.

• Part Number: PN1648
• 5/8"-18 Left Hand Thread
• 5/8" Bore
• 4130 Heat-Treated Chromoly Housing
• 52100 Bearing Steel Ball with Hard Chrome Finish
• Teflon-impregnated Nylon Race
• Ultimate Radial Static Load: 18,000 lbs
• American Made Quality

Rod End Maintenance Tip

Only use Tri-Flow to lubricate rod ends. Using WD-40, PB Blaster, or similar products will break down the Teflon and void the warranty.

Sold Individually
