1.75" Tube Tabs

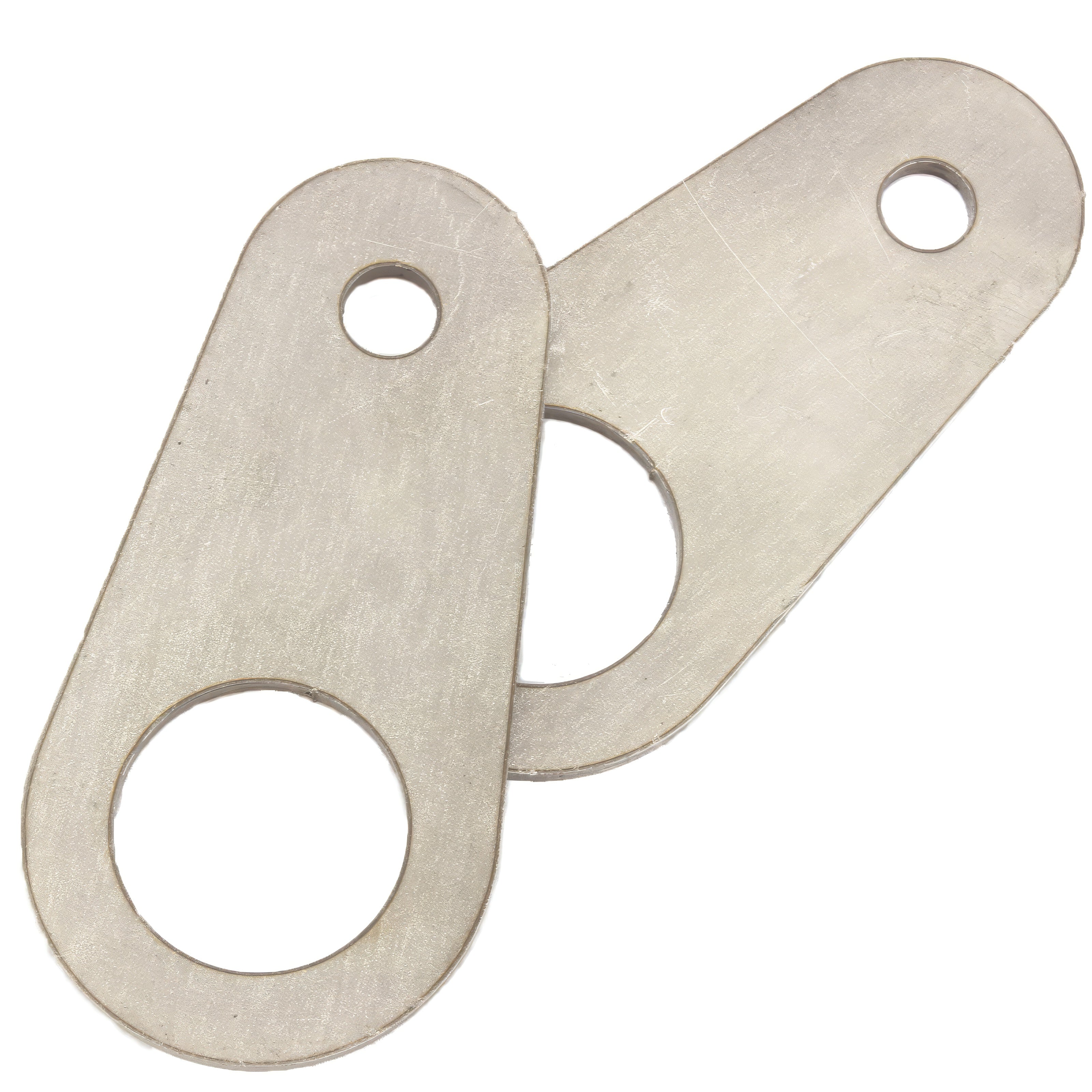

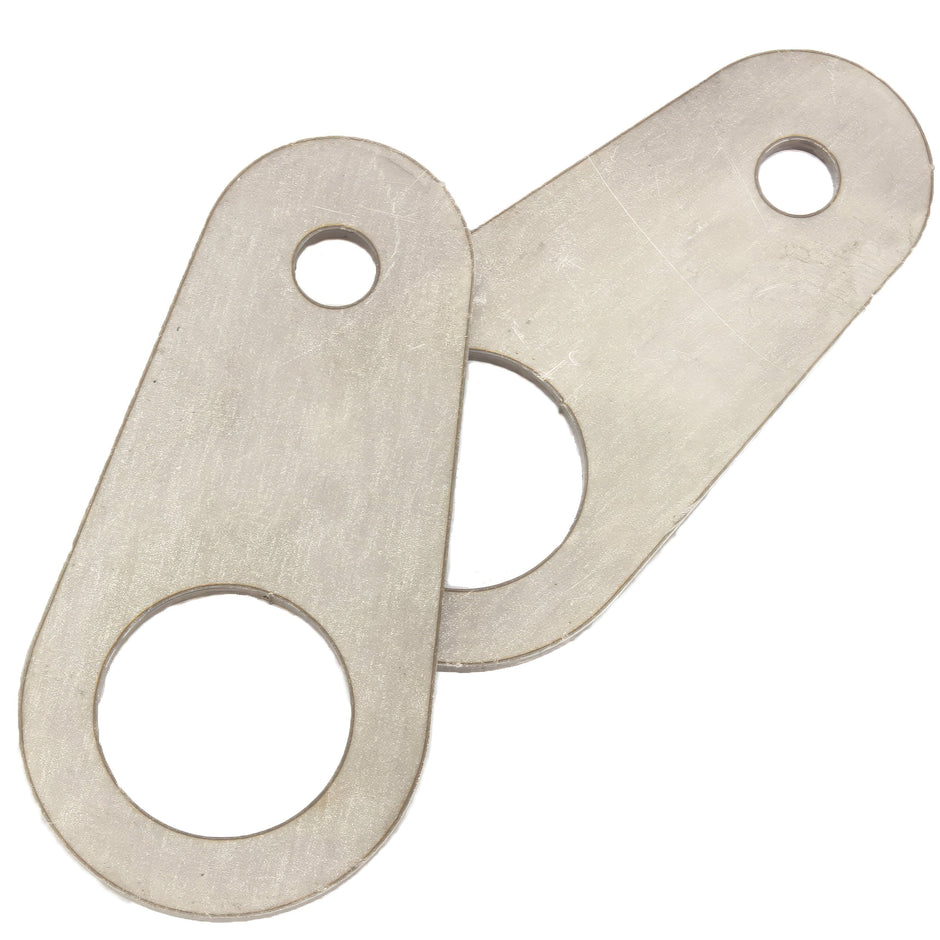

1.75" Tube Shock Tab Kit – Pair

Weld-on strength for clean shock mounts on 1.5" tubing.

This 1.75" shock tab kit is designed for mounting shocks to 1.5" outer diameter tubing, providing full weld contact for strength and clean fabrication. Each tab is laser-cut from 3/16" mild steel and includes a 1/2" bolt hole for compatibility with most common shock and suspension hardware.

Perfect for builders needing a reliable, compact mounting tab for coilovers, air shocks, or standard shocks in tight areas. The curved base allows these tabs to sit flush on round tubing, creating a high-integrity weld seam across the entire radius. Ideal for link suspension setups, shock towers, and tube frame builds.

Key Features

• Part Number: PN1679
• Material: 3/16" thick mild steel
• Bolt Hole: 1/2" diameter – fits most shock bolts
• Mounting Radius: 1.75" – optimized for 1.5" OD tubing
• Tab Style: Weld-on shock tabs
• Sold in pairs
• Optional hardware: 1/2" x 3" Grade 8 Bolt and Lock Nut available

Sold as a pair
