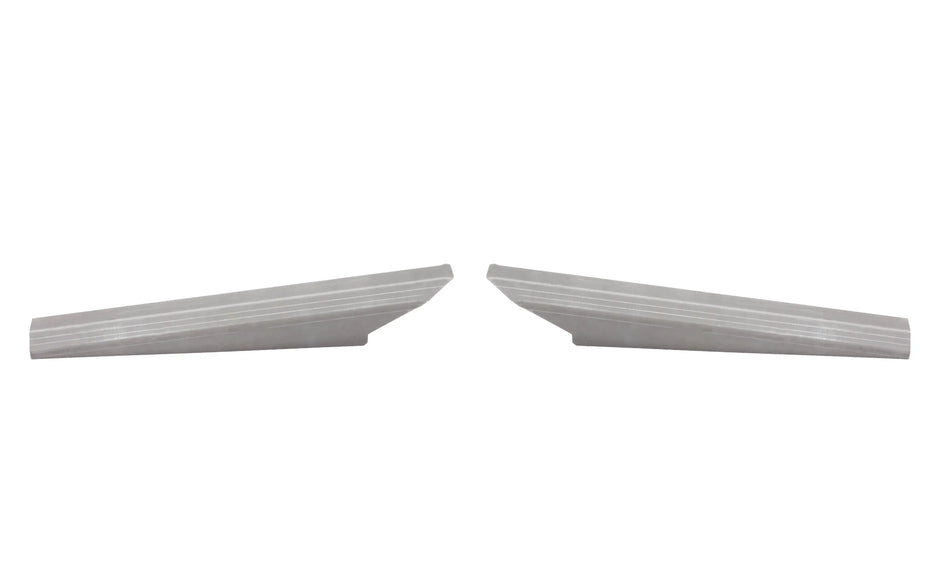

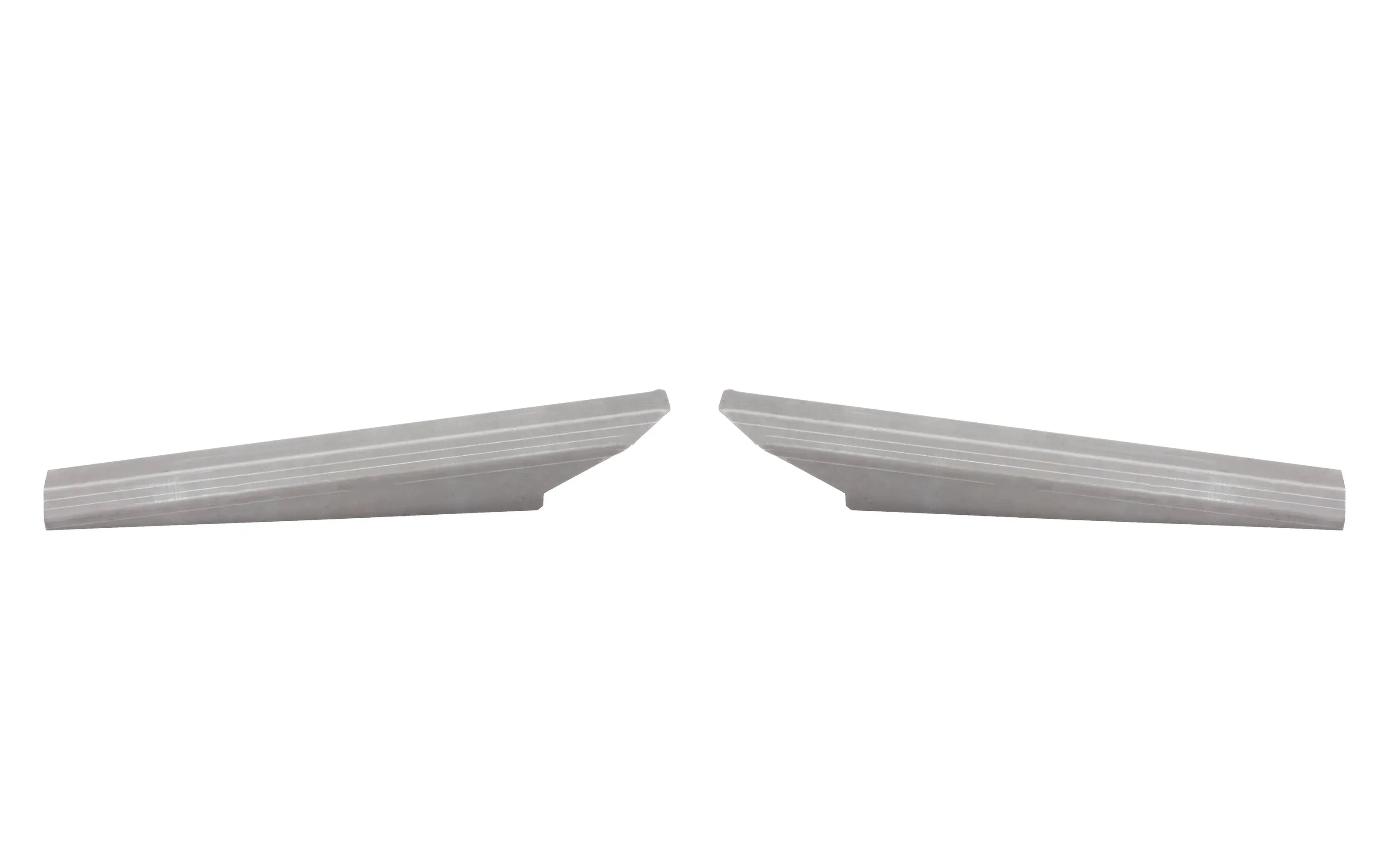

FABRICATED 9" Top Truss
Specialized truss designed exclusively for fabricated 9" axle housings.
This Ford 9" top truss is engineered specifically for fabricated axle housings and provides exceptional rigidity and strength for demanding off-road applications. The unique design combines lighter 12-gauge plate with strategic bends to create one of the stiffest axle trusses available, ensuring your differential housing stays properly aligned under extreme loads.
The truss features a 3.5" inside diameter that matches the outside diameter of axle tubes. This precise fitment allows for optimal heat distribution during welding, with the truss applying heat to the opposite side of the tube to minimize warping and maintain axle straightness during installation.
Key Features
- Part Number: PN1765
- Fitment: Exclusively for fabricated 9" axle housings
- Material: 12-gauge steel plate with strategic bend design
- Dimensions: 3.5" inside diameter for precise tube fitment
- Design: Heat distribution engineering prevents warping during installation
What's Included
- 1x Top Truss for 9" axle housing
- Precision-formed 12-gauge steel construction
Notes
- ONLY compatible with OUR fabricated 9" axle housings - will NOT work on factory or other manufactured housings
- Alternate welding sides during installation to prevent warping
- Tack weld first, then complete welding on opposite sides for best results
