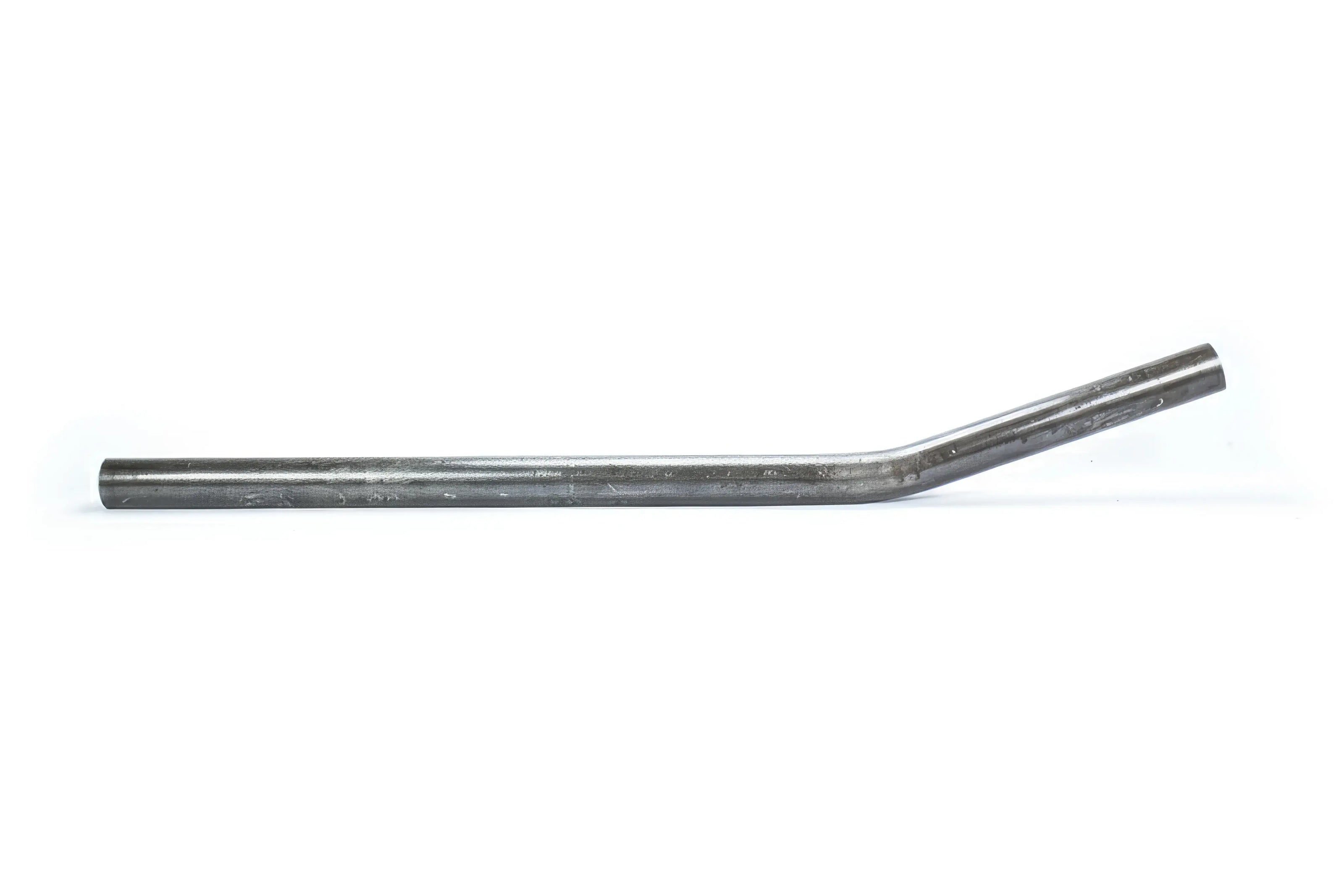

High Clearance Lower Link, DOM Tube, 2" X .25" Wall, 1.5" Tube ID

High Clearance Lower Link

Pre-bent lower links built for maximum clearance and serious strength.

Originally designed as the main tube in our URC Trailing Arms, these links proved too useful not to offer on their own. Each link measures 44" long with a 6.3" offset and an 18° bend — a shape designed to solve one of the biggest challenges in suspension setups: tire-to-link clearance. Most tubing benders can’t handle .250" wall DOM, so we do the hard part for you.

Whether you’re running big tires, building a high-clearance radius arm system, or just want to keep your links from hanging up on rocks, these are a proven solution. Strong, simple, and sold individually.

Key Features:

• Part Number: PN1982-01

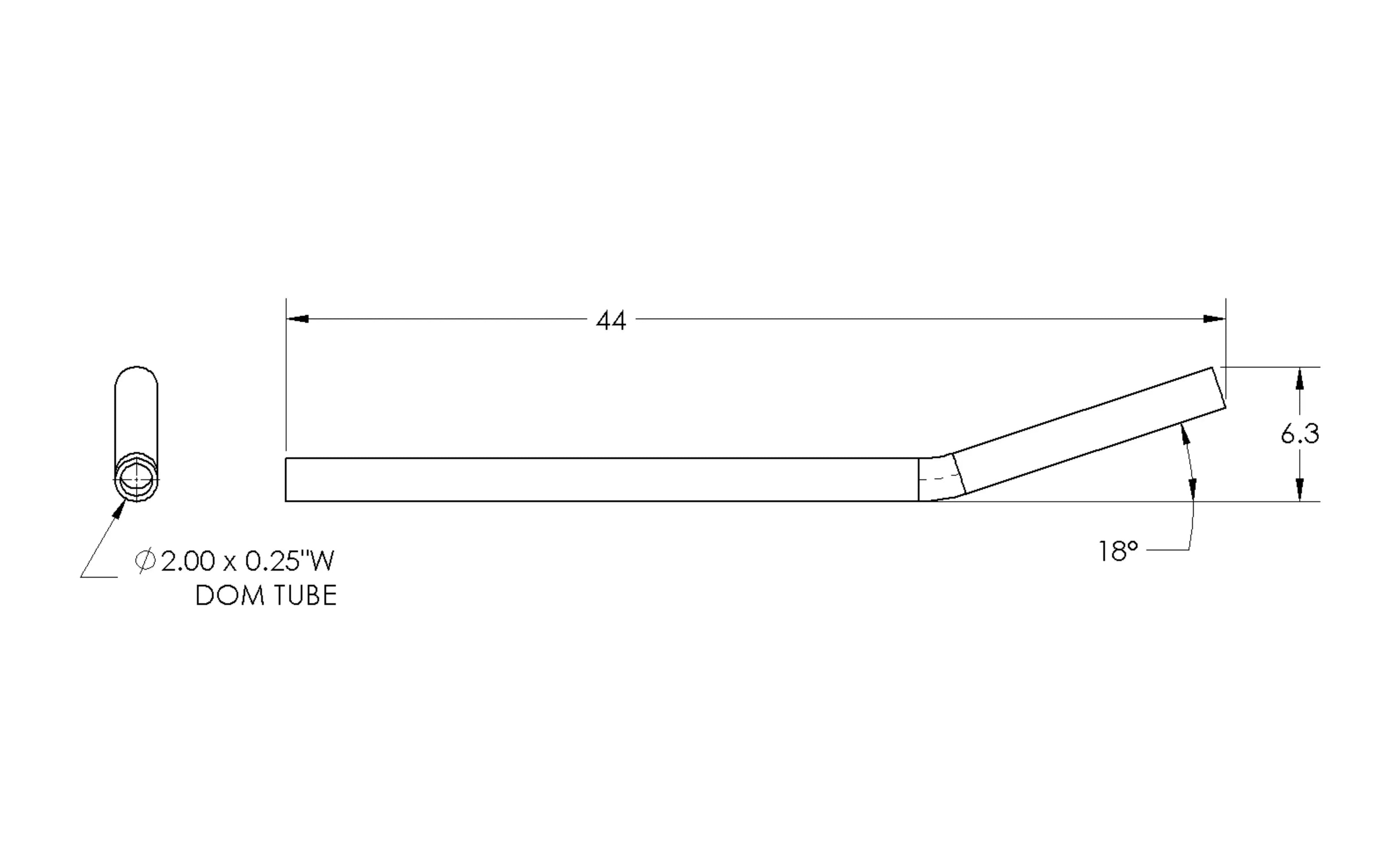

• 44" length with 6.3" offset and 18° bend
• Made from 2" x .250" wall DOM tubing
• Pre-bent for tire clearance on steering axles
• Improves turning radius without changing link geometry
• Increases ground clearance and reduces abuse to link arms
• Ideal for high-clearance radius arm setups
• Recommended to run a bushing on the short end to prevent link roll
• Sold individually

Note:

Designed for high-strength off-road suspension applications. Sold individually — order (2) for a pair. Bushing recommended on the short end for best performance and durability.
