Orbital Steering Valve Mount

Orbital Steering Valve Mount

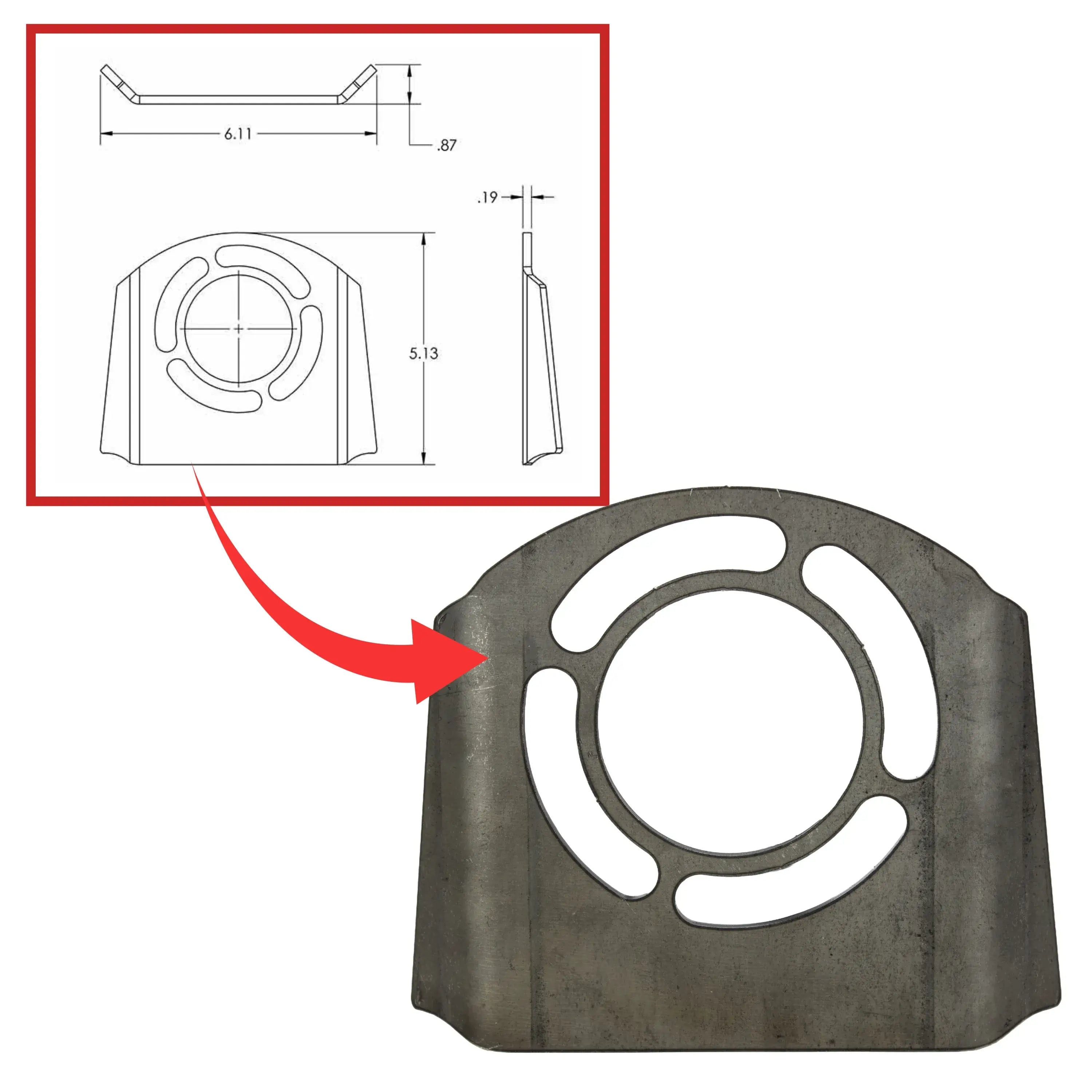

Tube-mount bracket for 4-bolt hydraulic orbital valves, fits 1.5" to 2" OD with minimal mods.

This bracket gives you a straightforward and clean way to mount your hydraulic steering control unit. It’s built around the common 4-bolt orbital valve pattern and is designed to clamp onto 1.5" OD tubing—perfect for most common steering columns or chassis setups. The design allows you to rotate the valve so your hose routing can go wherever makes the most sense in your layout, especially helpful in tight engine bays or buggy builds.

If you're working with larger tubing (up to 2" OD or more), minor clearancing will get the job done. This mount is ideal for custom setups, whether you're building full hydro or assist systems and need a solid and simple way to secure the valve on round tube.

• Part Number: PN2110
• Fits standard 4-bolt orbital steering control valves
• Built to mount on 1.5" OD tubing
• Can be modified to fit up to 2" OD tube or larger
• Allows valve rotation for custom hose routing
