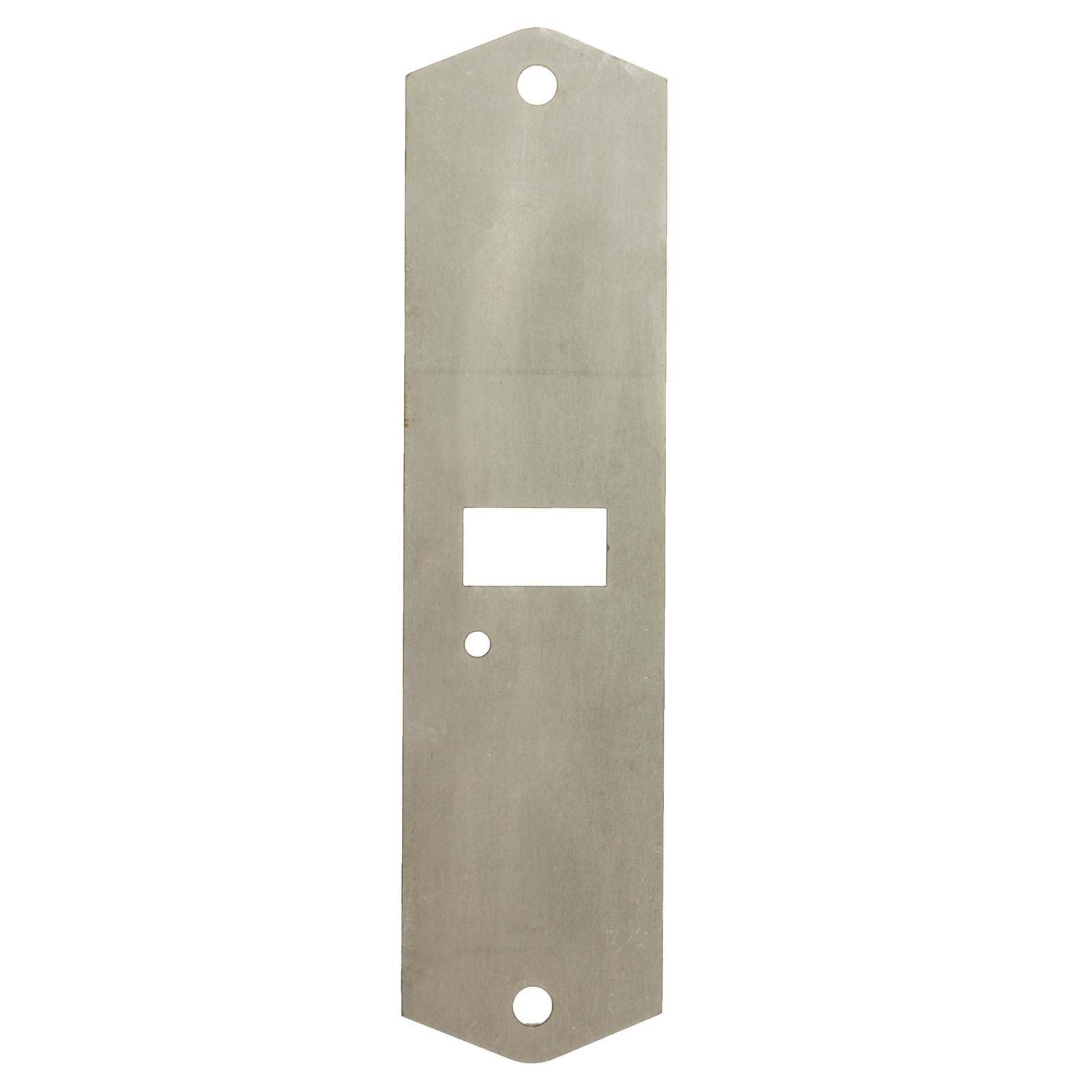

Toyota 9.5" Axle Shaft Gauge
Precision tool for 9.5" axle shaft measurements.
This axle shaft gauge bolts directly to a Toyota 9.5" axle housing to show you exactly where the shafts will end up along with the pinion position. The round hole indicates the center of the pinion, while the rectangular box shows the natural gap between axle shafts. Essential for anyone building custom Toyota 9.5" axles, this gauge takes the guesswork out of axle shaft measurements and ensures proper fitment every time.
Built for accuracy and ease of use at 1.05 lbs. Since you only need 75% spline engagement, you can measure to the edge of the box and round down about 1/8" for optimal results.
Key Features
- Part Number: PN2117
- Fitment: Toyota 9.5" axle housings
- Material: Precision construction
- Dimensions: 1.05 lbs weight
- Design: Bolt-on gauge with pinion and shaft positioning indicators
What's Included
- 1x Toyota 9.5" axle shaft gauge
Notes
- Bolts directly to Toyota 9.5" axle housing
- Shows pinion center and natural shaft gap
- Measure to box edge and round down 1/8" for 75% spline engagement
