Starter Kit for Building a Rear Swing-Out Bumper

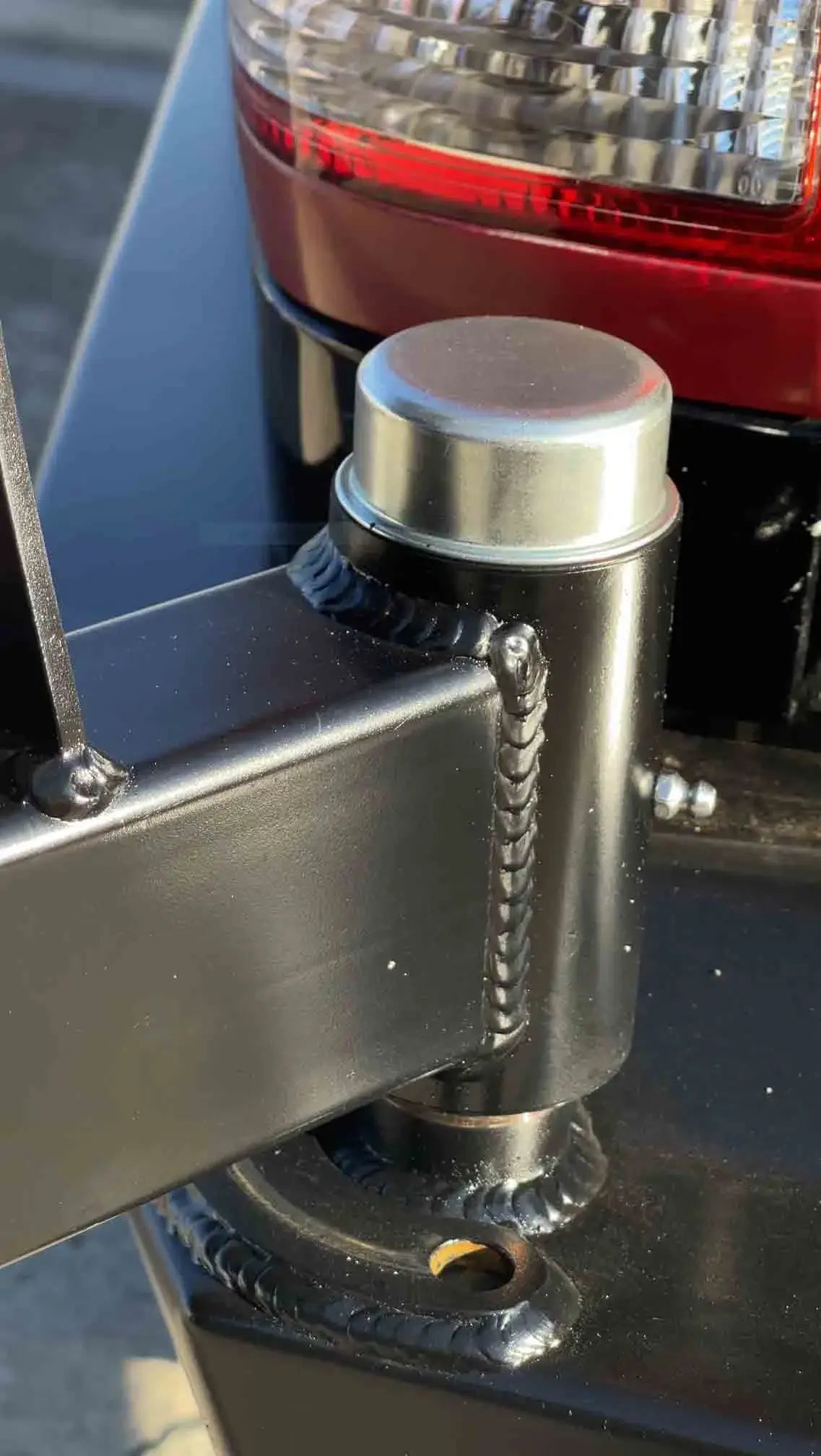

This DIY bumper kit is built for fabricators planning to build a rear swing-out tire carrier the right way. It includes the core components needed to support and secure a swing arm properly—preventing common issues like stress fractures caused by unsupported movement.

The key is having a solid rest for the swing arm and a latch setup that pulls it tight. If your arm moves while driving, it's either not resting fully on the pad or the latch isn't doing its job. This kit solves that by giving you the right foundation from the start—and saves a few bucks over buying parts individually.

Key Features

• Part Number: PN2126
• Complete starter kit for rear swing-out bumper fabrication
• Includes latch, spindle, receiver tube, and tire mount
• Eliminates upward and downward movement when properly installed
• Supports swing arm when at rest to prevent stress fractures
• Works with a wide range of wheel bolt patterns (see table below)

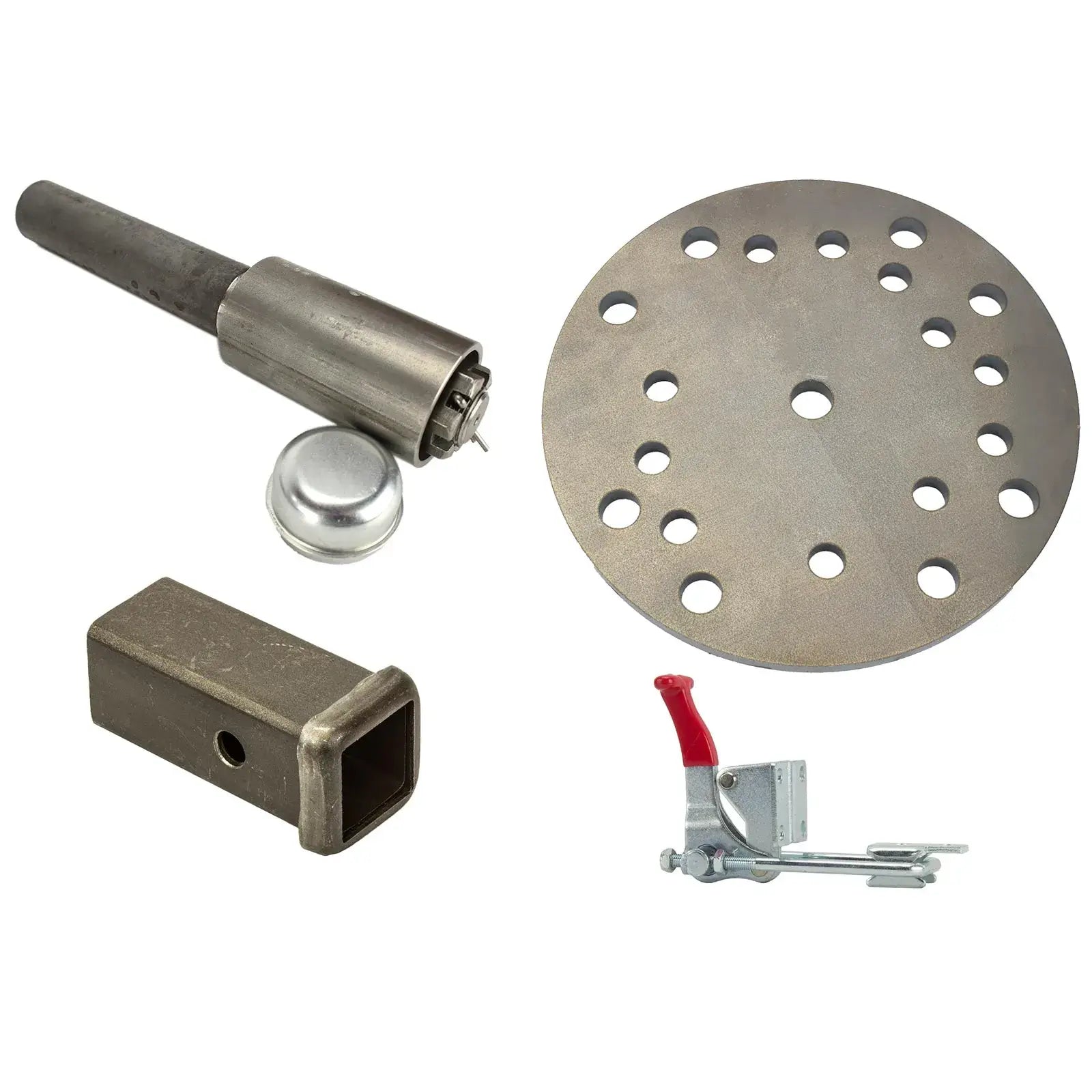

Kit Includes

• 2" x 6" Receiver Hitch Tube
• Spare Tire Spindle
• Swing Out Tire Carrier Latch
• Spare Tire Mounting Plate (See bolt pattern options below)

Spare Tire Mounting Plate Options
