Dana 60 High Steer Arm – Passenger Side, Springless

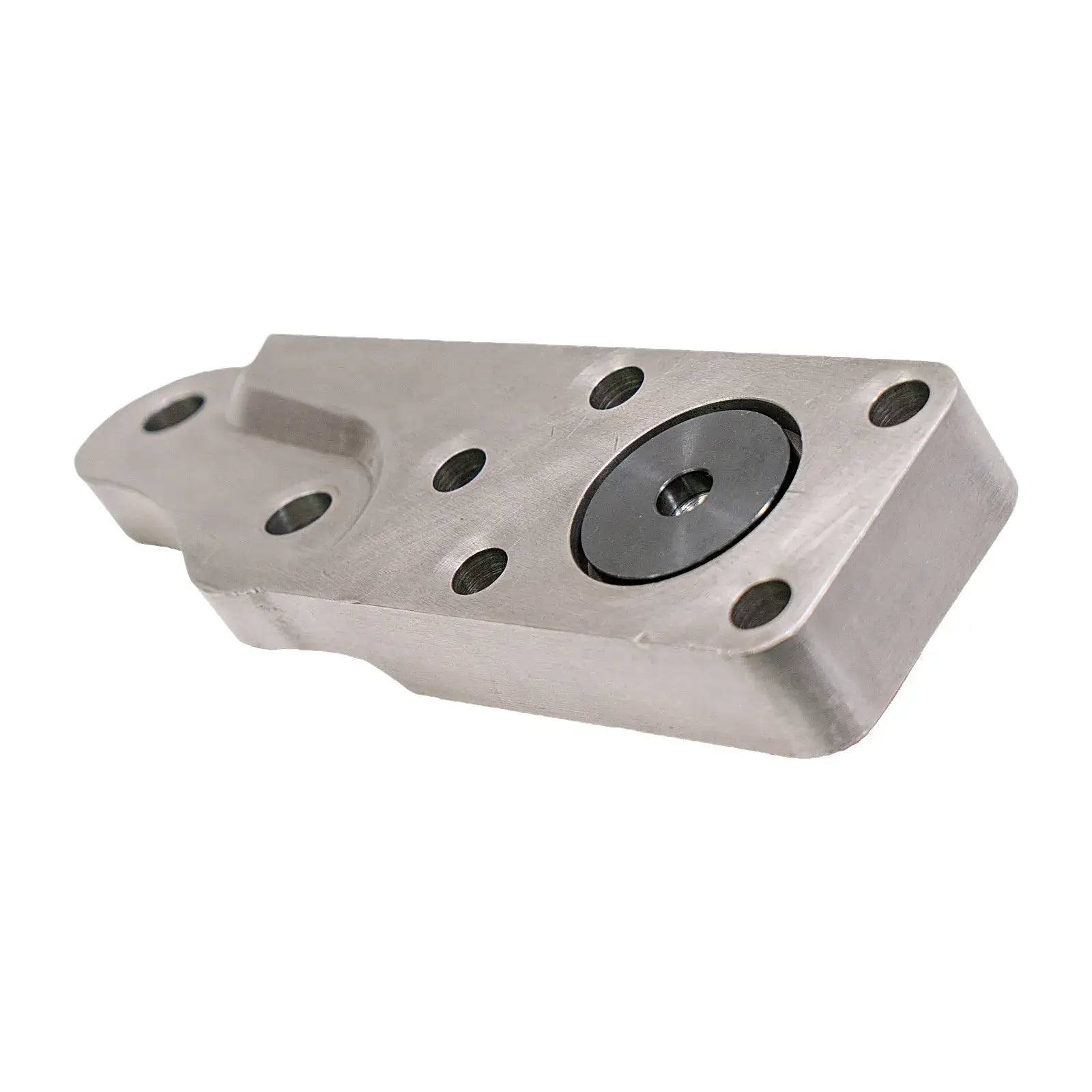

Springless Passenger Side High Steer Arm for Dana 60 Kingpin Axles

This Dana 60 high steer arm is a springless design for the passenger side, compatible with both 4-stud factory knuckles and many 5-stud aftermarket knuckles from Reid and Solid. It replaces the factory kingpin spring and cap with a threaded preload stud and heavy-duty washer, improving retention and simplifying maintenance with a built-in grease fitting.

Key Features

• Part Number: PN2147
• Passenger side high steer arm for Dana 60 kingpin axles
• Works with 4-stud and 5-stud knuckle configurations

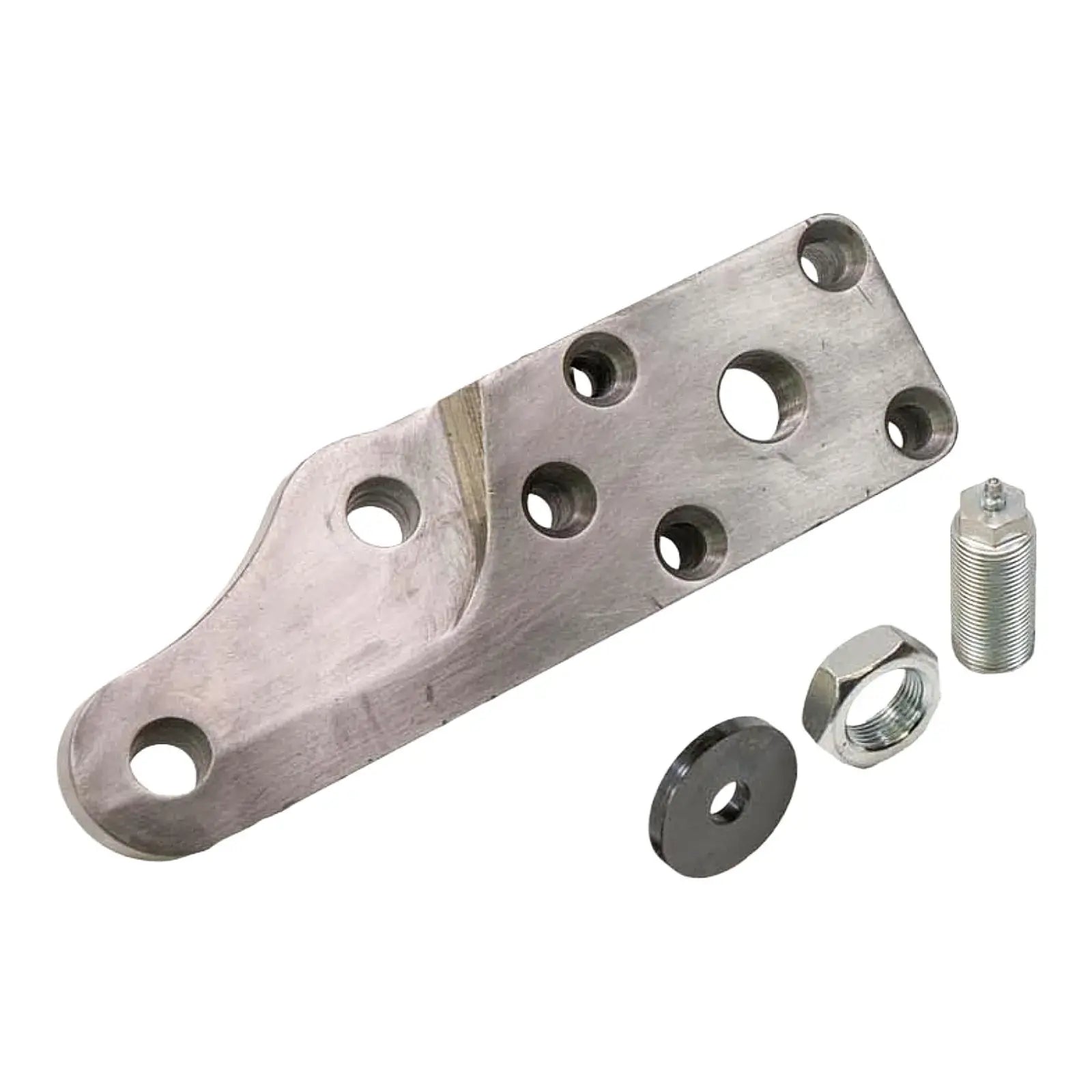

• Springless preload design using threaded stud and washer
• Grease fitting for easy bushing lubrication without disassembly
• Tie-rod and drag link holes reamed for GM 1-ton TREs
• Can be drilled to 3/4" for heim joint steering setups
• Machined for crossover and Y-link steering compatibility
• OFF ROAD USE ONLY

Note: Use high-angle GM TREs (ES2026R, ES2027L) at the outer drag link position. The inner taper fits standard TK234 TREs. Arms are drilled to .502"—verify stud fitment before installation. Some factory studs may have oversized shoulders.
