DIY Rock Sliders - No Tubing

DIY Rock Sliders - No Tubing

Universal Rock Slider Builder Kit for 1.75" DOM Tubing (No Outer Tubes Included)

This DIY rock slider kit is designed for builders without access to a tube bender. It gives you the core components to create a custom-length rock slider setup using your own 1.75" x .120 wall DOM tubing for the inner and outer slider bars. This approach eliminates the size limitations of pre-bent kits while still giving you strong, trail-ready sliders.

The kit uses 3/16" end caps cut at a 45° angle, 5.25" spacing between tubes, and multiple frame mount legs made from 1.75" DOM with frame plates and gussets. All components come unwelded, and there are enough parts for both sides of the vehicle.

Key Features

• Part Number: PN2253
• Fits a wide range of vehicles—build to any length
• Designed for use with 1.75" x .120" wall DOM tubing (not included)
• 3/16" plate caps and gussets for strength
• Leg spacing sets inner and outer tubes at 5.25" apart
• Includes DOM frame legs and frame mounting hardware
• Kit comes unwelded
• Includes enough components for both driver and passenger sides

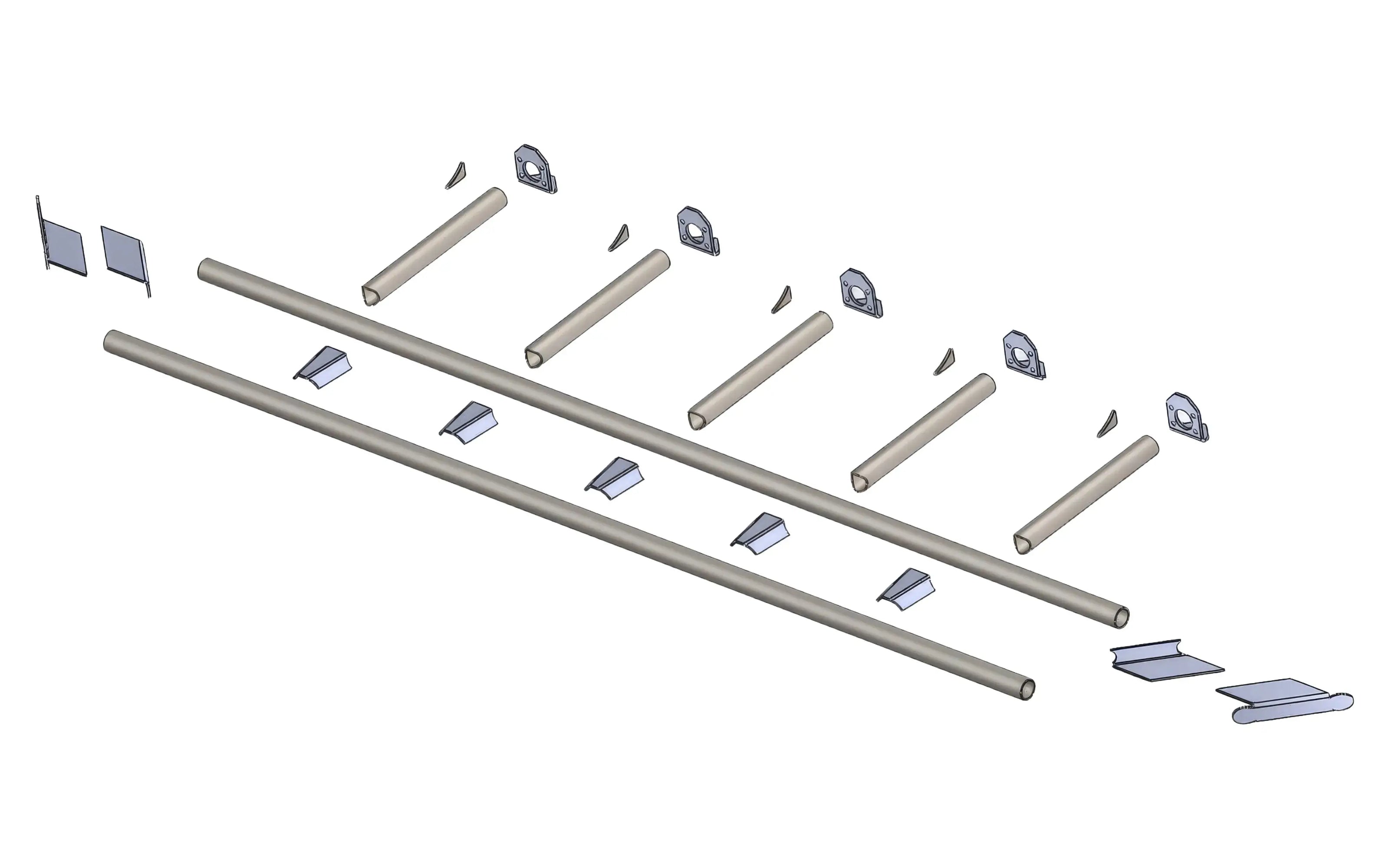

Kit Includes

• (4) 3/16" Slider End Cap Brackets
• (6, 8, or 10) 3/16" Slider Inner Gussets
• (6, 8, or 10) 1/4" Slider Frame Plates
• (6, 8, or 10) 1/4" Slider Frame Plate Gussets
• (6, 8, or 10) 16" Long 1.75" x .120" Wall DOM Slider Frame Tubes

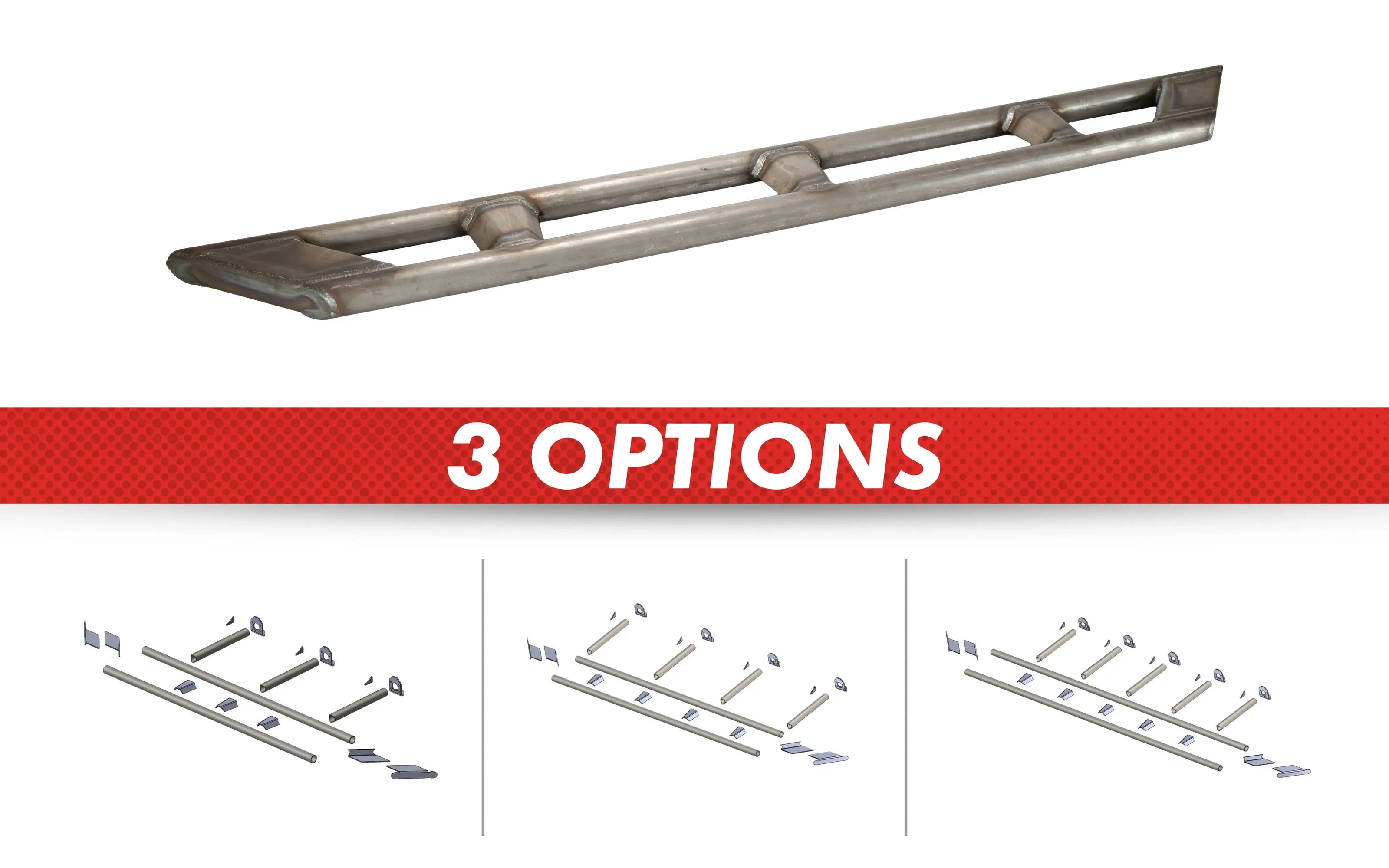

Available Kit Options

• Number of Frame Legs: 3 per side
• Number of Frame Legs: 4 per side
• Number of Frame Legs: 5 per side
