3 Link Heim and Tube Kit

3 Link Heim and Tube Kit

All the heims and tubing—no brackets, no fluff.

Looking to build or refresh your own 3 link suspension but already have the brackets handled? Our 3 Link Heim and Tube Kit gives you the core essentials: DOM tubing and rod ends—with zero fluff. It's ideal for experienced builders who are making their own brackets, reworking an existing setup, or just want a bolt-down, weld-ready hardware package without chasing parts one by one.

This kit includes three 2.0" x .250" wall DOM links (your choice of 3' or 4' lengths) and one 54" long 1.5" x .250" wall DOM tube. It also comes with six 1.25" and two 7/8" heat-treated chromoly heims—all loaded with jam nuts, weld-in tube adapters, and stainless misalignment spacers. You can select your preferred bore size (9/16", 5/8", or 3/4") for a perfect match to your brackets or tabs.

Key Features

• Part Number: PN2320
• Complete 3 link hardware package—no brackets included
• Designed for custom suspension link builds or bracket refresh projects
• All rod ends are heat-treated chromoly for durability
• Choose your bore size: 9/16", 5/8", or 3/4"
• DOM tubing for high-strength link fabrication

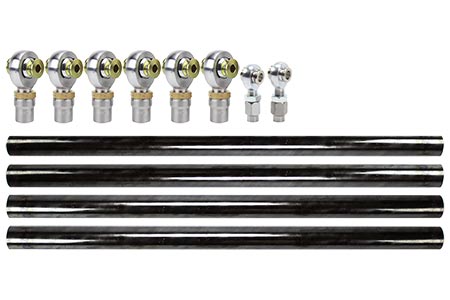

What’s Included

• (3) RH 1.25" Heims with jam nuts, tube adapters, and misalignment spacers
• (3) LH 1.25" Heims with jam nuts, tube adapters, and misalignment spacers
• (1) RH 7/8" Heim with jam nut, tube adapter, and misalignment spacers
• (1) LH 7/8" Heim with jam nut, tube adapter, and misalignment spacers
• (3) DOM Tubes – 2.0" OD x .250" wall – available in 3' or 4' lengths
• (1) DOM Tube – 1.5" OD x .250" wall – 54" length

Service Tip: Use Tri-Flow to lubricate heims. Avoid WD-40, Blaster, or similar products—they can damage the liner and void your warranty.
