3" Wide Bushing Lift Shackles

3" Wide Bushing Lift Shackles

Heavy-duty shackles built for shackle flips and 3" wide springs.

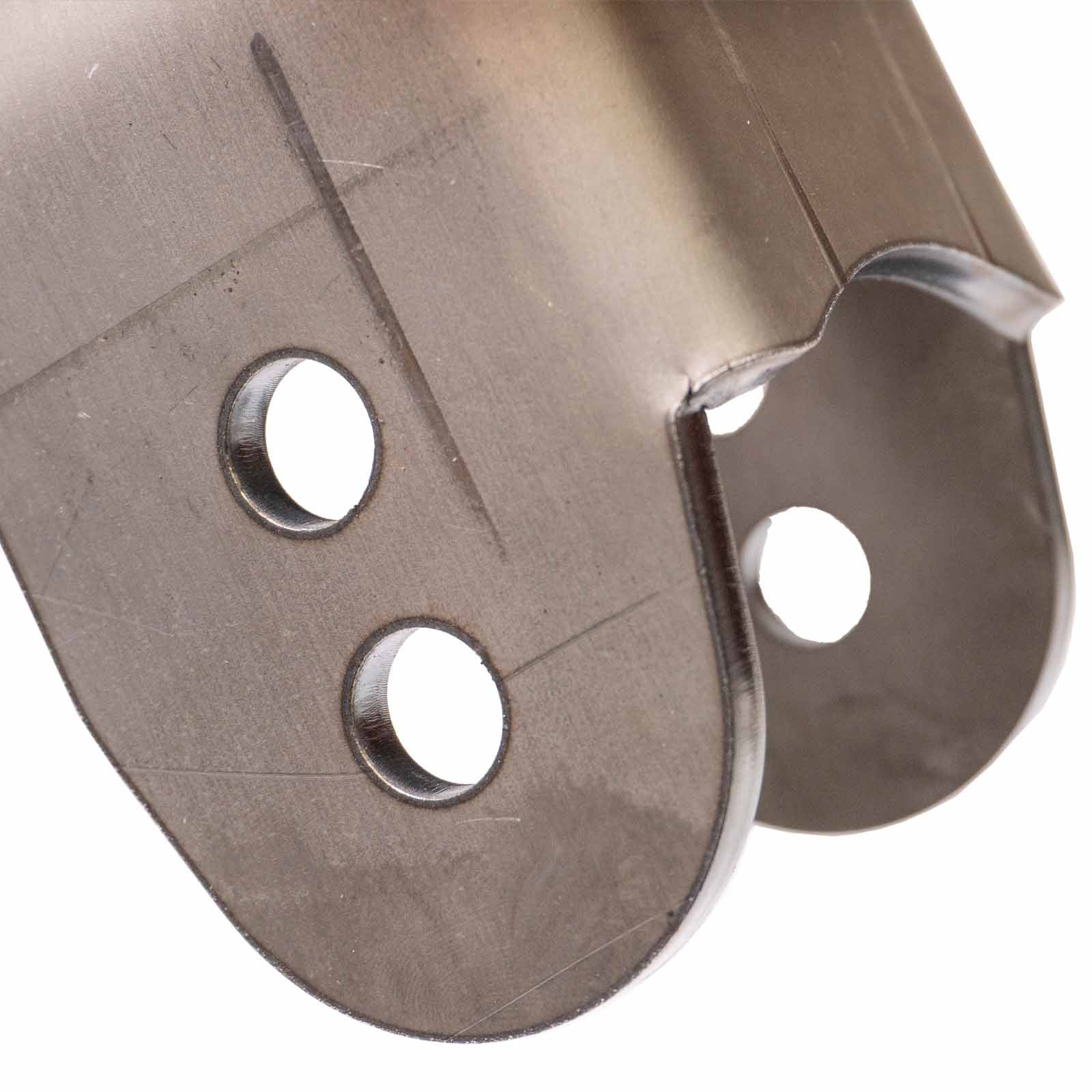

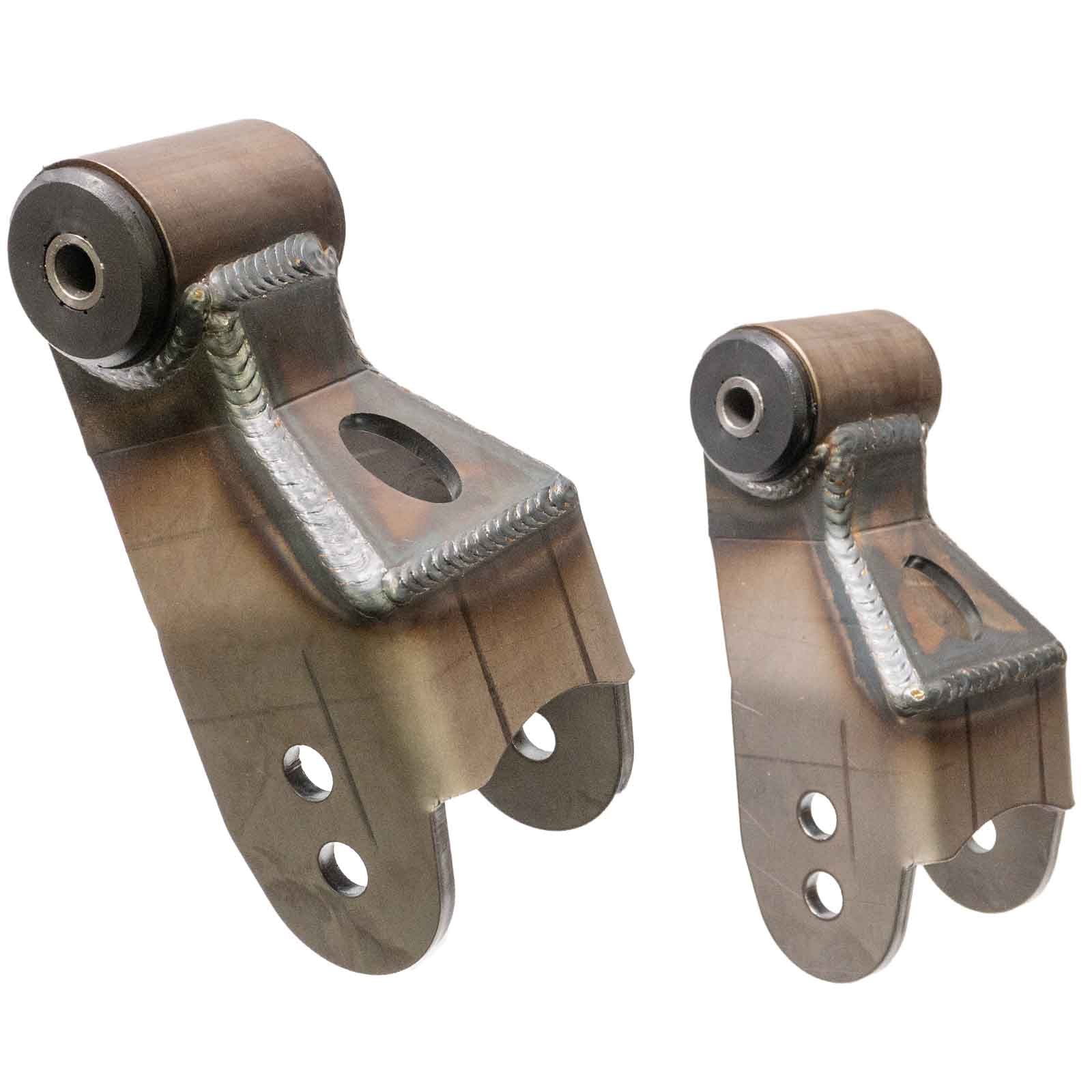

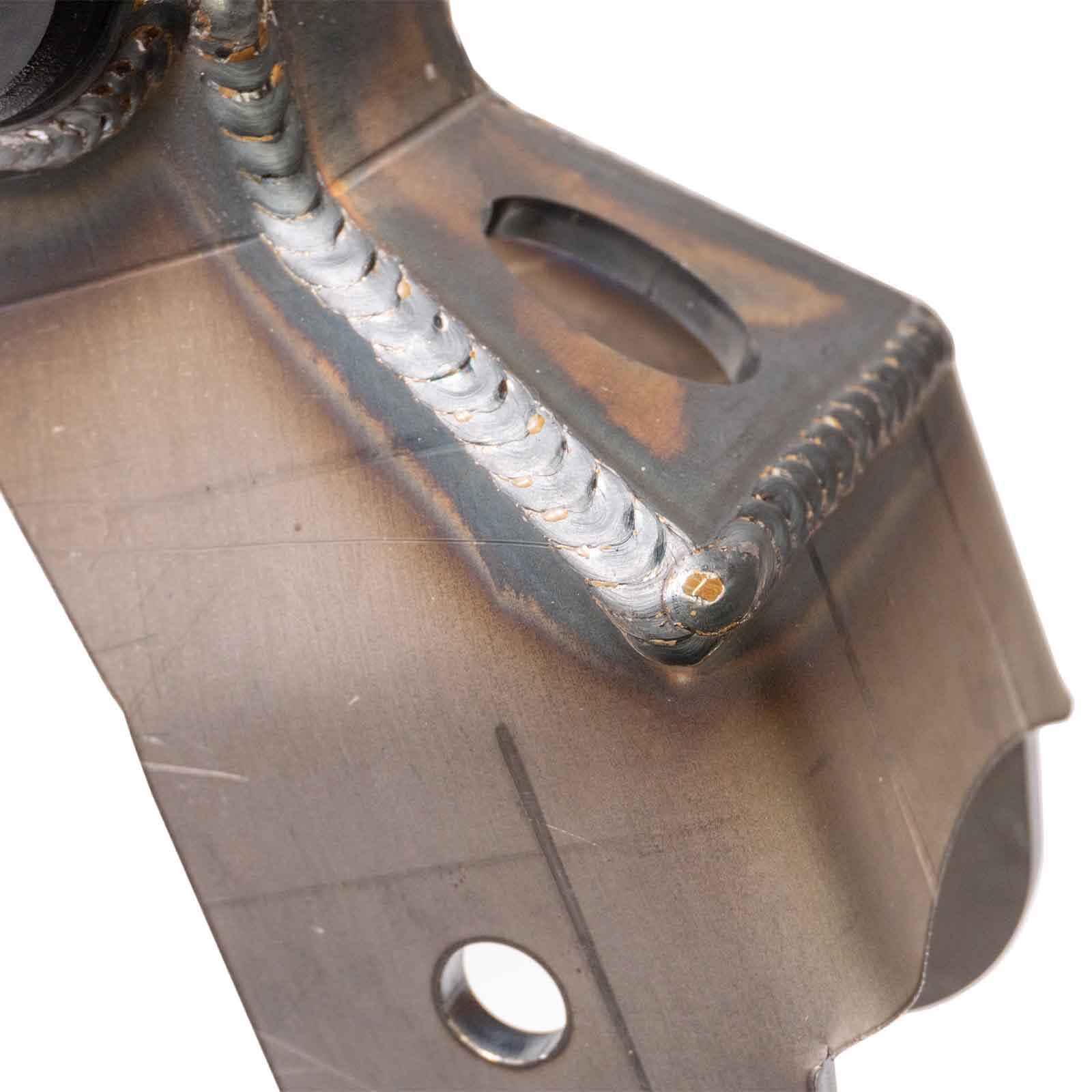

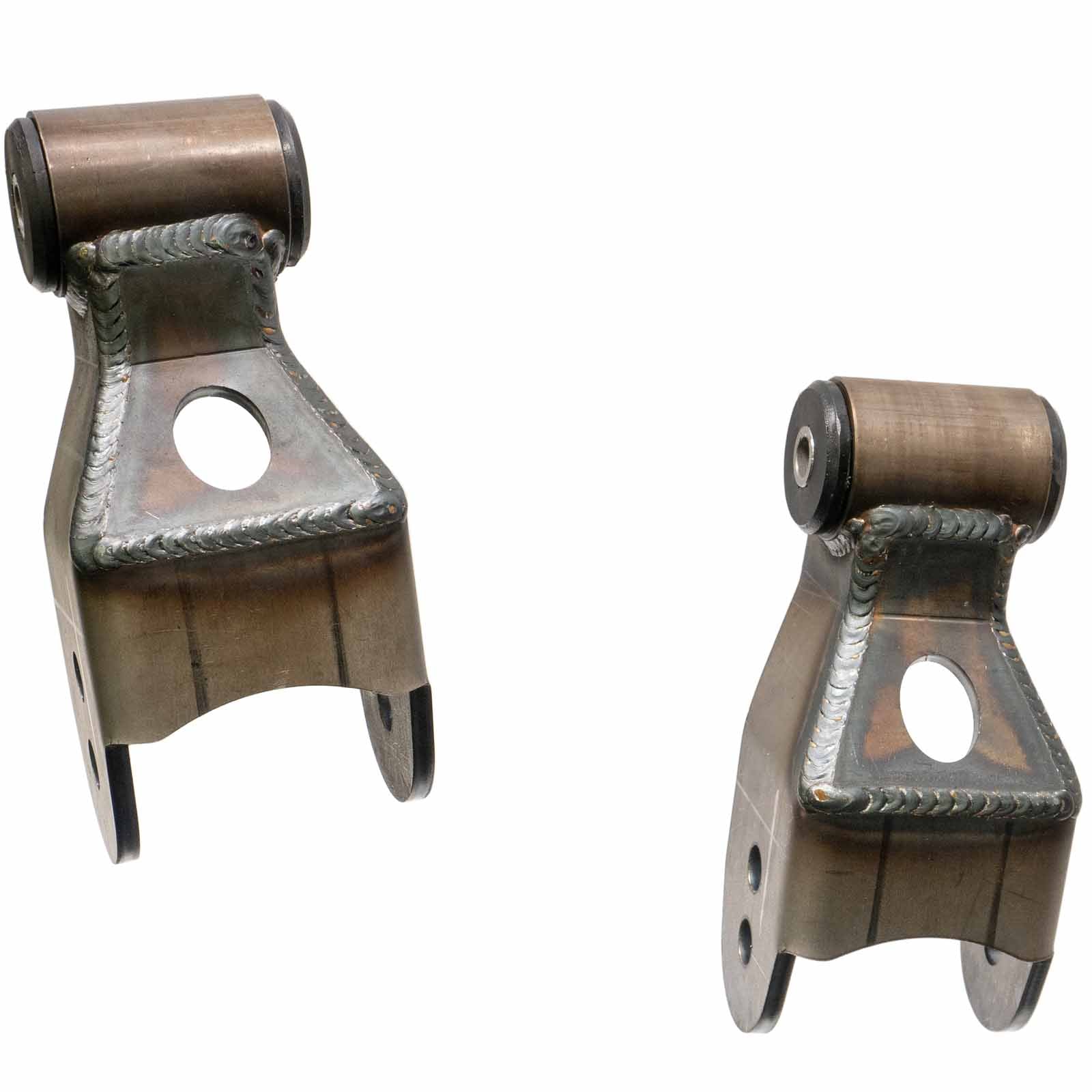

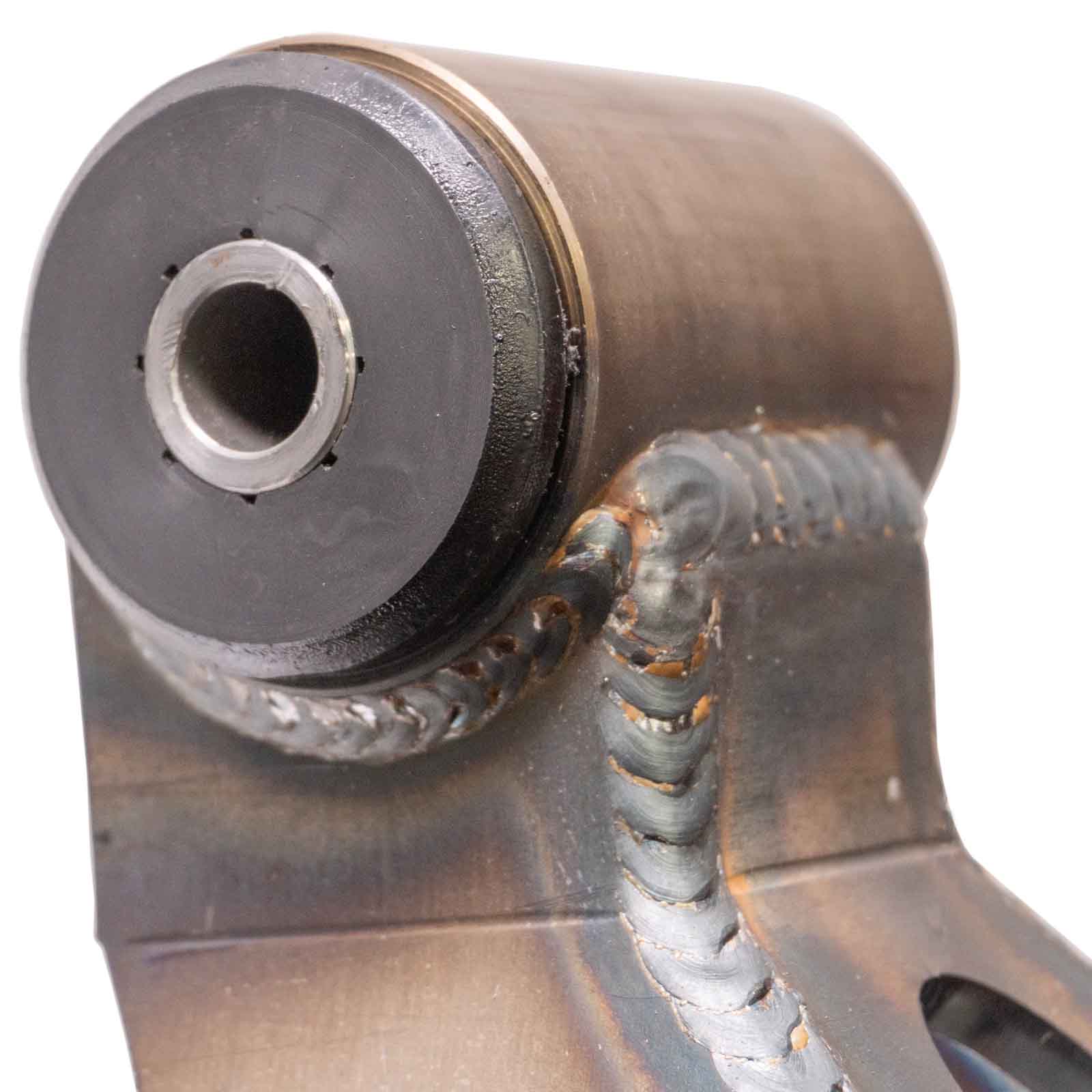

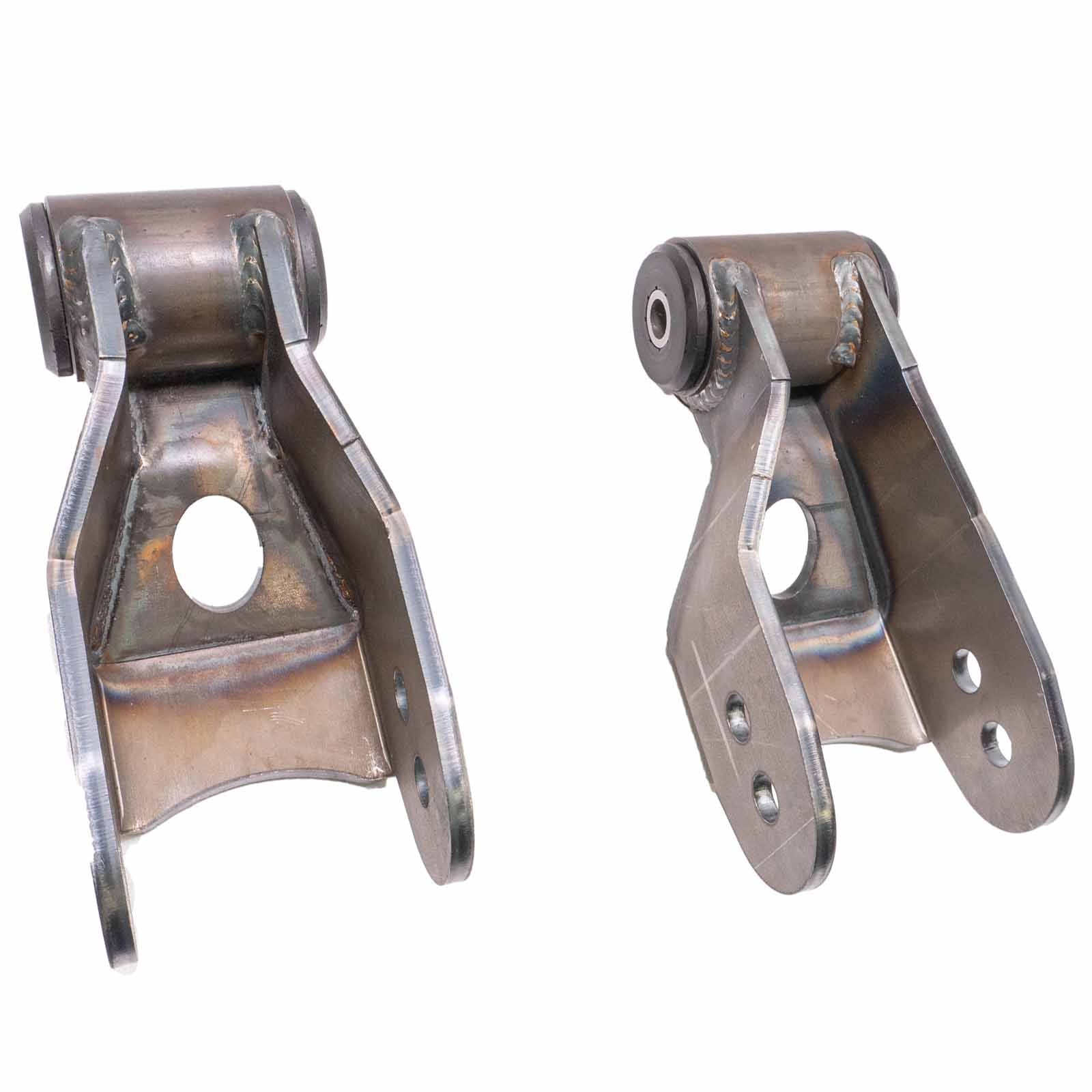

3" Wide Bushing Lift Shackles are built for serious use on rigs that see real terrain. Designed for off-roaders who need dependable articulation and strength, these shackles are laser-cut and precision bent from 3/16" mild steel. The hole centers are set at 5" and 6" to offer two levels of lift and tuning flexibility, while clearance cuts around the bushing provide uninhibited movement throughout suspension travel.

These are ideal for use with shackle flips or custom hangers, and they’re compatible with leaf springs that measure 3" wide at the mounting eyelet. Whether you're crawling, flexing, or loaded down on an expedition, these will hold up without deflection.

Key Features

• Part Number: PN2650-A
• Material: 3/16" mild steel – laser cut and formed
• Shackle Lengths: 5" and 6" hole-to-hole
• Mounting Holes: 9/16"
• Fitment: Designed for springs with 3" wide eyelet mount
• Application: Perfect for shackle flips or custom hanger setups

What's Included

• 1 Pair of 3" Wide Shackles (includes all necessary hardware)

Note: Use only silicone or lithium-based grease on polyurethane bushings. Petroleum-based products will break them down and void the warranty.
