5/8 Rod End Right Hand (18 TPI)

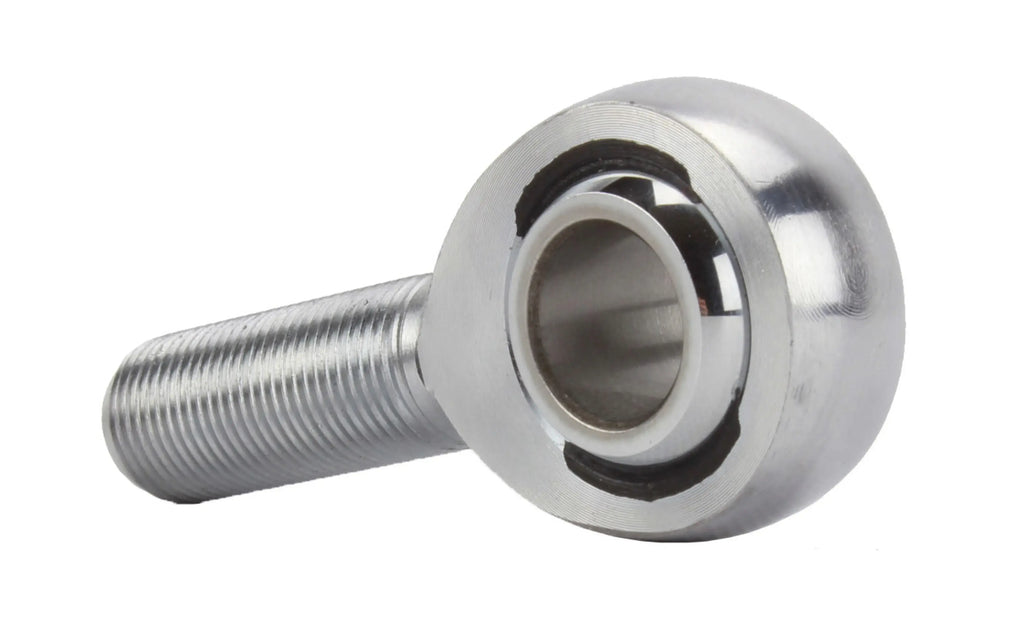

5/8" Rod End - Right Hand (18 TPI)

Strong, smooth, and built for real-world abuse

This 5/8" x 5/8" right-hand thread rod end is made the way we want heim joints to be—strong, affordable, and ready for serious use. The heat-treated 4130 chromoly housing pairs with a 52100 bearing steel ball and hard chrome finish for maximum strength and wear resistance. The Teflon-impregnated nylon race provides smooth articulation and long service life. Rated at 18,000 lbs ultimate radial static load (tested to deformation, not failure), this is a dependable choice for 4-link suspensions, steering, or custom fabrication.

• Part Number: PN1054
• 5/8"-18 Right Hand Thread
• 5/8" Bore
• 4130 Heat-Treated Chromoly Housing
• 52100 Bearing Steel Ball with Hard Chrome Finish
• Teflon-impregnated Nylon Race
• Ultimate Radial Static Load: 18,000 lbs
• Made in the USA

Rod End Maintenance Tip

Only use Tri-Flow to lubricate rod ends. Using WD-40, PB Blaster, or similar products will degrade the Teflon race and void the warranty.

Sold Individually
