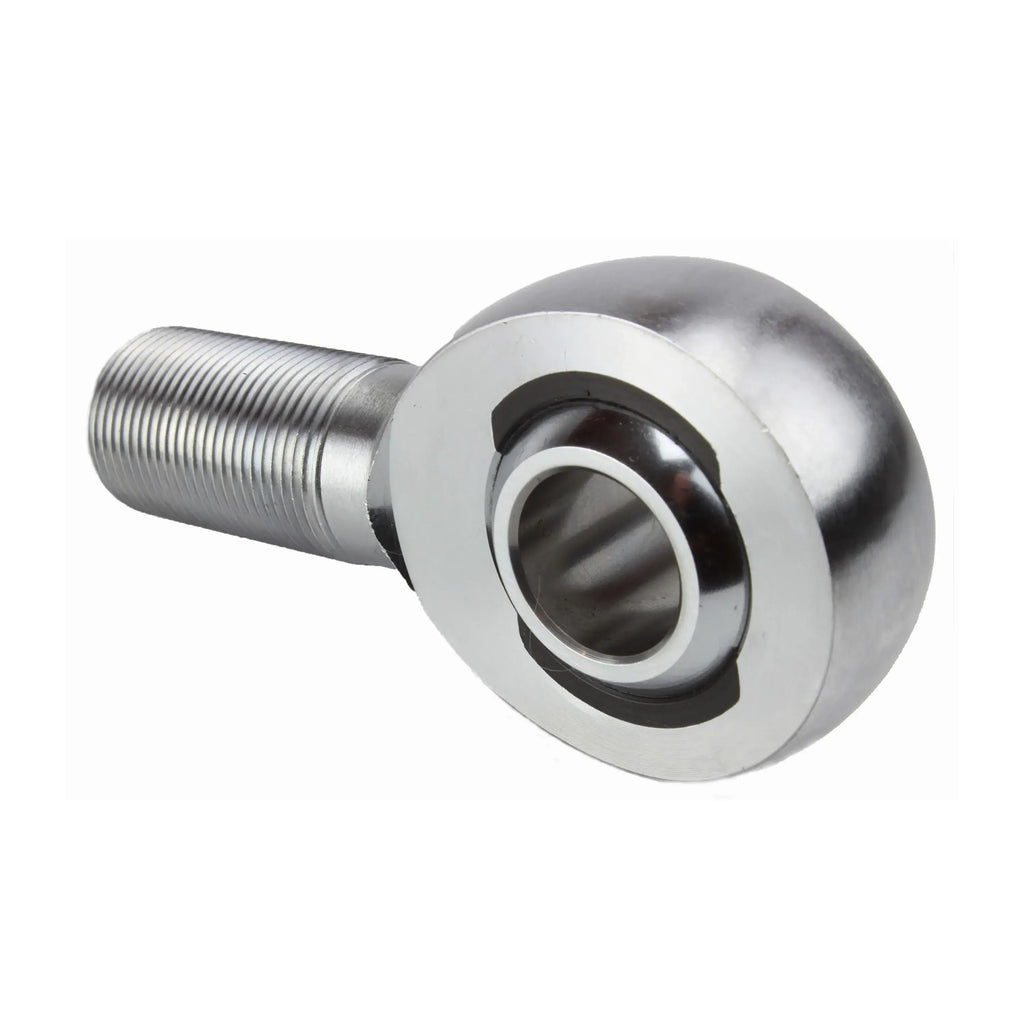

7/8" X 3/4" Rod End Left Hand (14 TPI)

7/8" X 3/4" Rod End Left Hand (14 TPI)

Heavy-Duty Chromoly Heim for Precision and Strength

This is a 7/8" shaft with a 3/4" bore (14 TPI). Sometimes smaller in the right places is better! These are high-quality heat-treated Chromoly rod ends—definitely not a cheap mild steel heim. The 4130 Chromoly housing has a hard chrome finish, and the ball is made from 51200 bearing steel, heat-treated, and finished in hard chrome. The race is injection-molded Teflon-impregnated nylon for smooth movement and wear resistance.

With an approximate ultimate radial static load of 55,600 lbs, these are tested to first deformation, not destruction—giving you a realistic idea of how they’ll perform in real-world conditions.

• Part Number: PN1059
• Thread: 14 TPI, Left Hand
• Shaft Diameter: 7/8"
• Bore Size: 3/4"
• Material: 4130 Chromoly Housing
• Ball: 51200 Bearing Steel
• Race: Teflon-impregnated Nylon
• Ultimate Radial Static Load: 55,600 lbs

Maintenance Tip: Tri Flow is the only product we recommend to service our rod ends. Use of other products such as WD-40 or Blaster is never recommended and will void any warranty.
