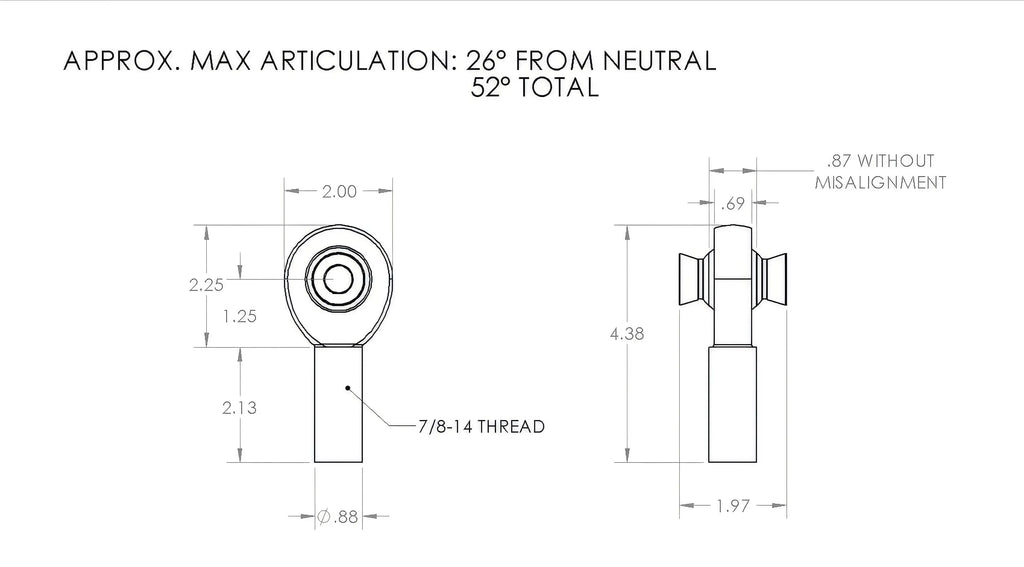

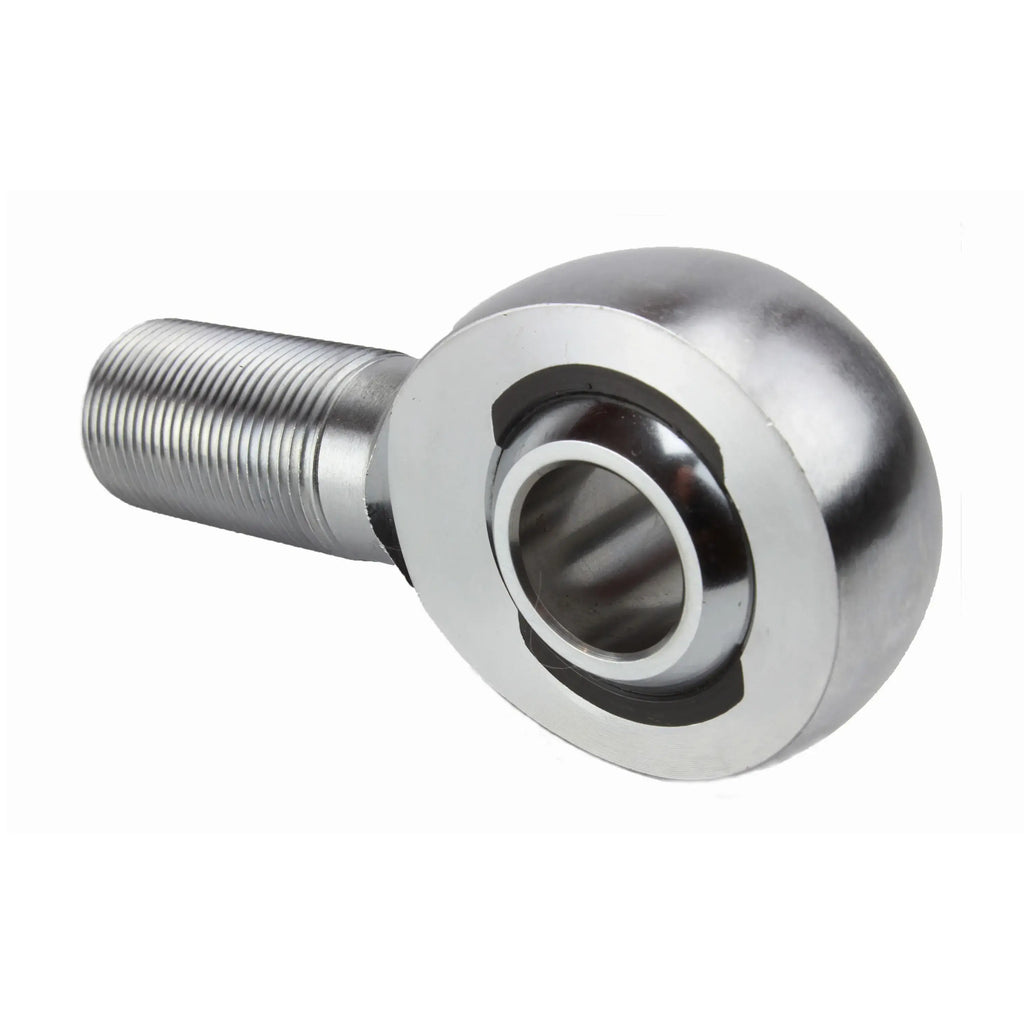

7/8" x 3/4" Rod End Right Hand (14 TPI)

7/8" x 3/4" Rod End Right Hand (14 TPI)

Durable Chromoly Heim Joint for High-Load Applications

This is a 7/8" shaft with a 3/4" bore (14 TPI). Sometimes smaller in the right places is better! These high-quality heat-treated Chromoly rod ends are far from cheap mild steel heims—they’re built for strength and reliability. The 4130 Chromoly housing has a hard chrome finish, while the ball is made from 51200 bearing steel, heat-treated, and finished in hard chrome. The race is injection-molded Teflon-impregnated nylon for smooth performance and durability.

With an approximate ultimate radial static load of 55,600 lbs, these are tested to first deformation rather than destruction, giving you a more accurate measure of real-world performance.

• Part Number: PN1067
• Thread: 14 TPI, Right Hand
• Shaft Diameter: 7/8"
• Bore Size: 3/4"
• Material: 4130 Chromoly Housing
• Ball: 51200 Bearing Steel
• Race: Teflon-impregnated Nylon
• Ultimate Radial Static Load: 55,600 lbs

Maintenance Tip: Tri Flow is the only product we recommend to service our rod ends. Using WD-40, Blaster, or other petroleum-based products can damage the Teflon and will void the warranty.
