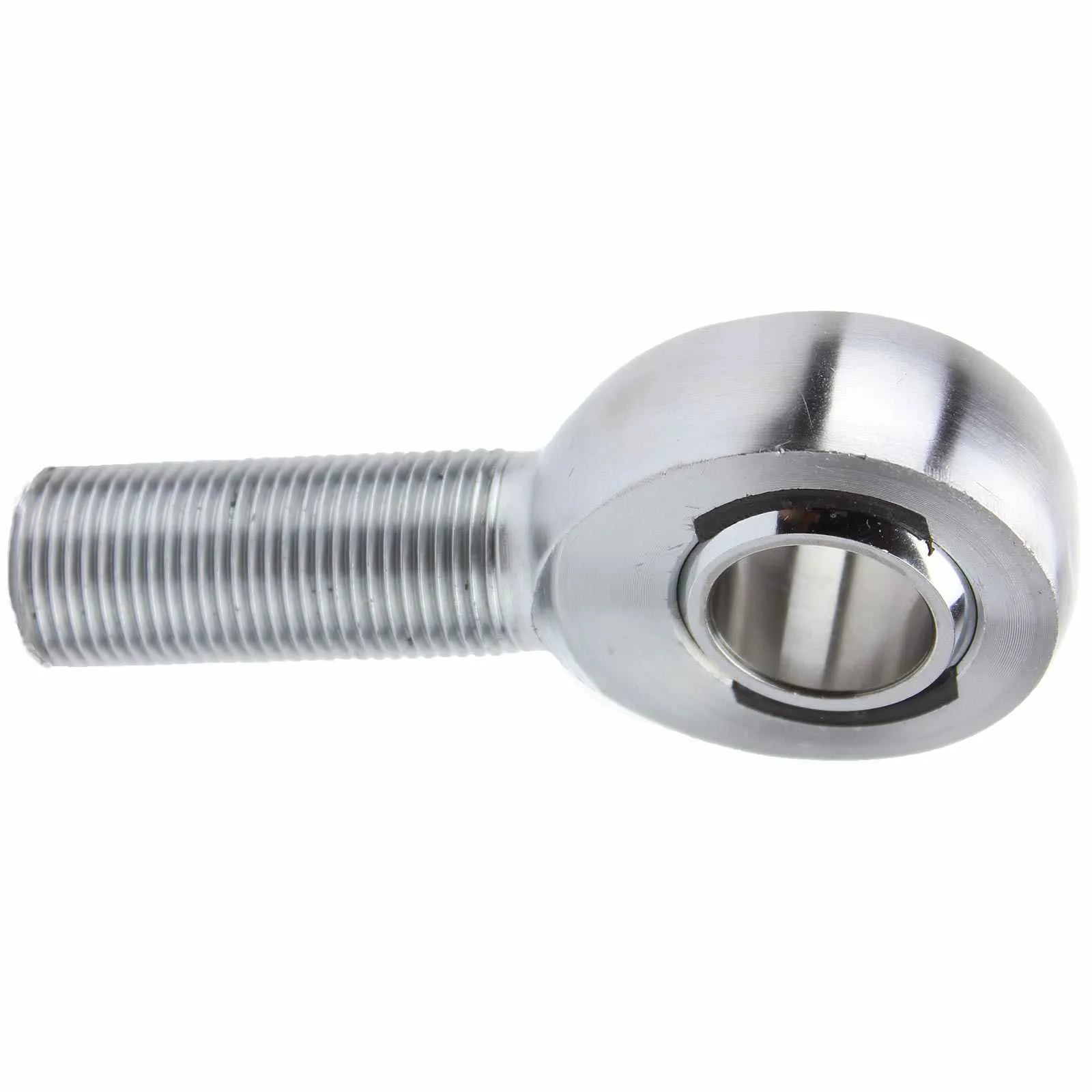

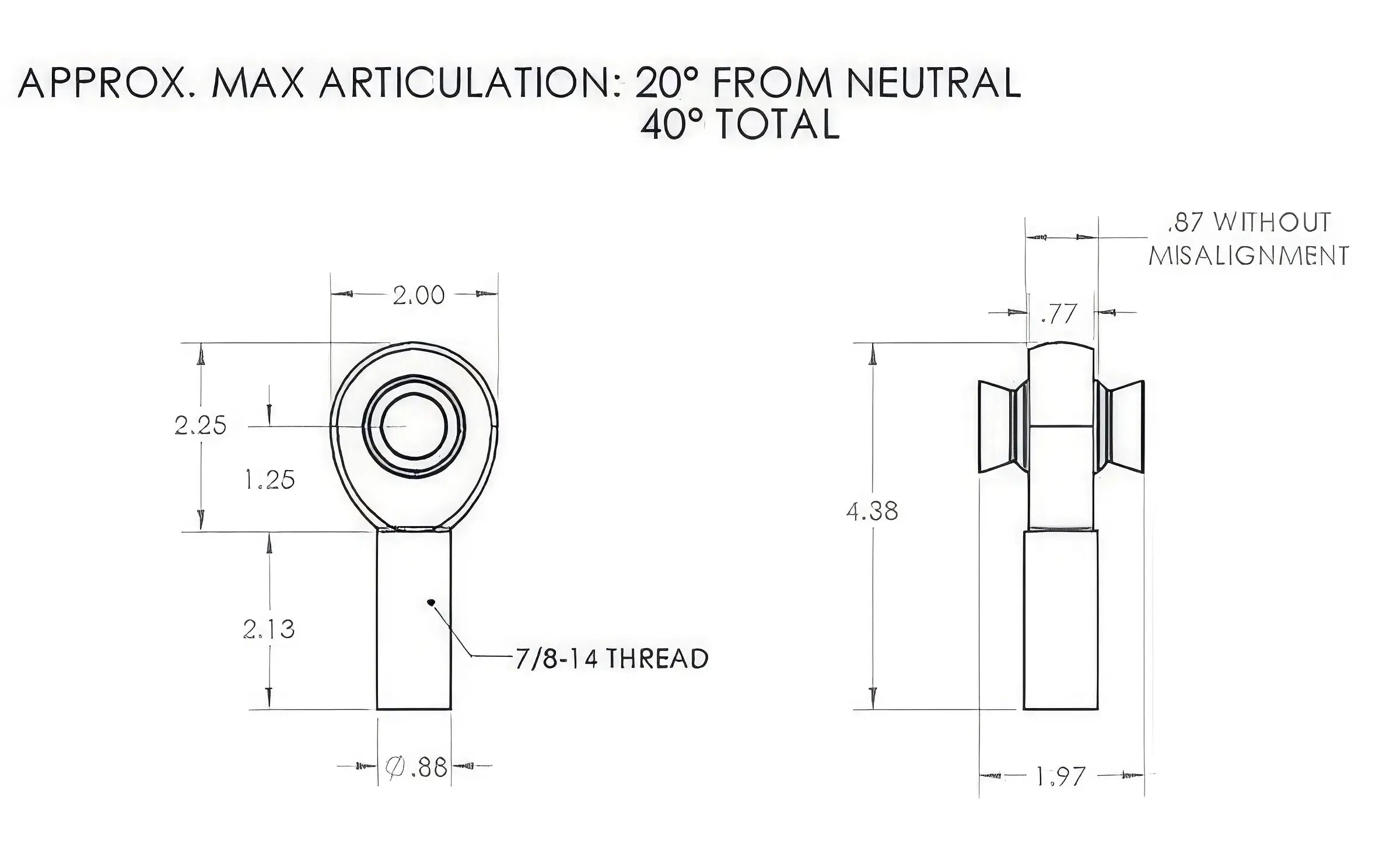

7/8" x 7/8" Rod End Right Hand (14 TPI)

7/8" x 7/8" Rod End Right Hand (14 TPI)

Heavy-Duty Chromoly Heim Joint for Steering & Track Bars

This 7/8" shaft with a 7/8" bore (14 TPI) is a premium heat-treated Chromoly rod end designed for strength and precision. Recommended for steering and track bar applications, it offers a balance of durability and smooth operation for off-road and custom builds.

• Part Number: R1303
• 4130 Chromoly housing with hard chrome finish
• 51200 bearing steel ball, heat treated and hard chrome finished
• Teflon-impregnated nylon race for reduced friction and long service life
• Approximate ultimate radial static load: 45,000 lbs
• Optimized for steering and track bar use

Maintenance Tip: Use Tri Flow only to lubricate our rod ends. Products like WD-40 or Blaster can damage the Teflon liner and void your warranty.
