Dana 60 High Steer Arms – Springless (Pair)

Dana 60 High Steer Arms – Springless

Springless High Steer Arms for Dana 60 – Pair

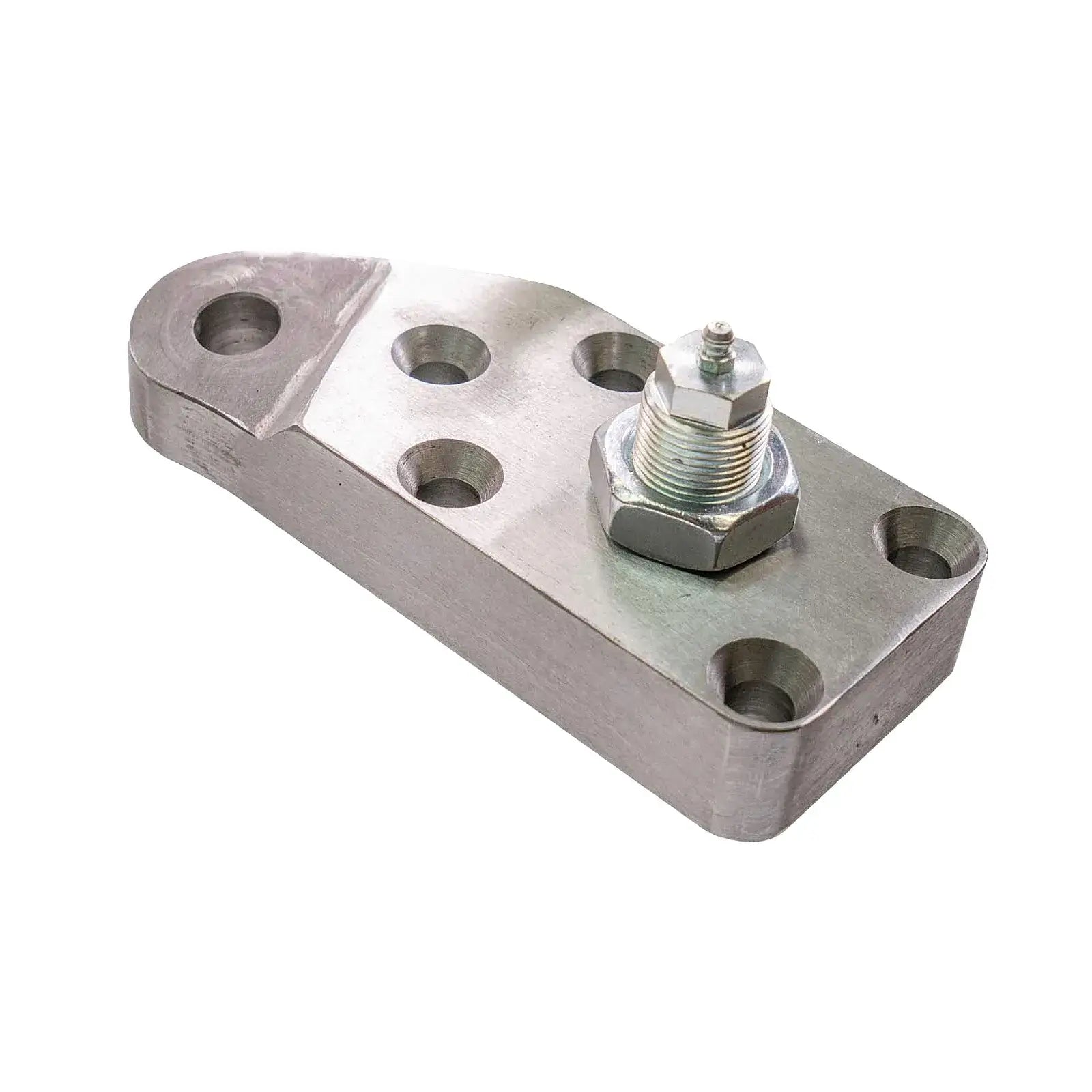

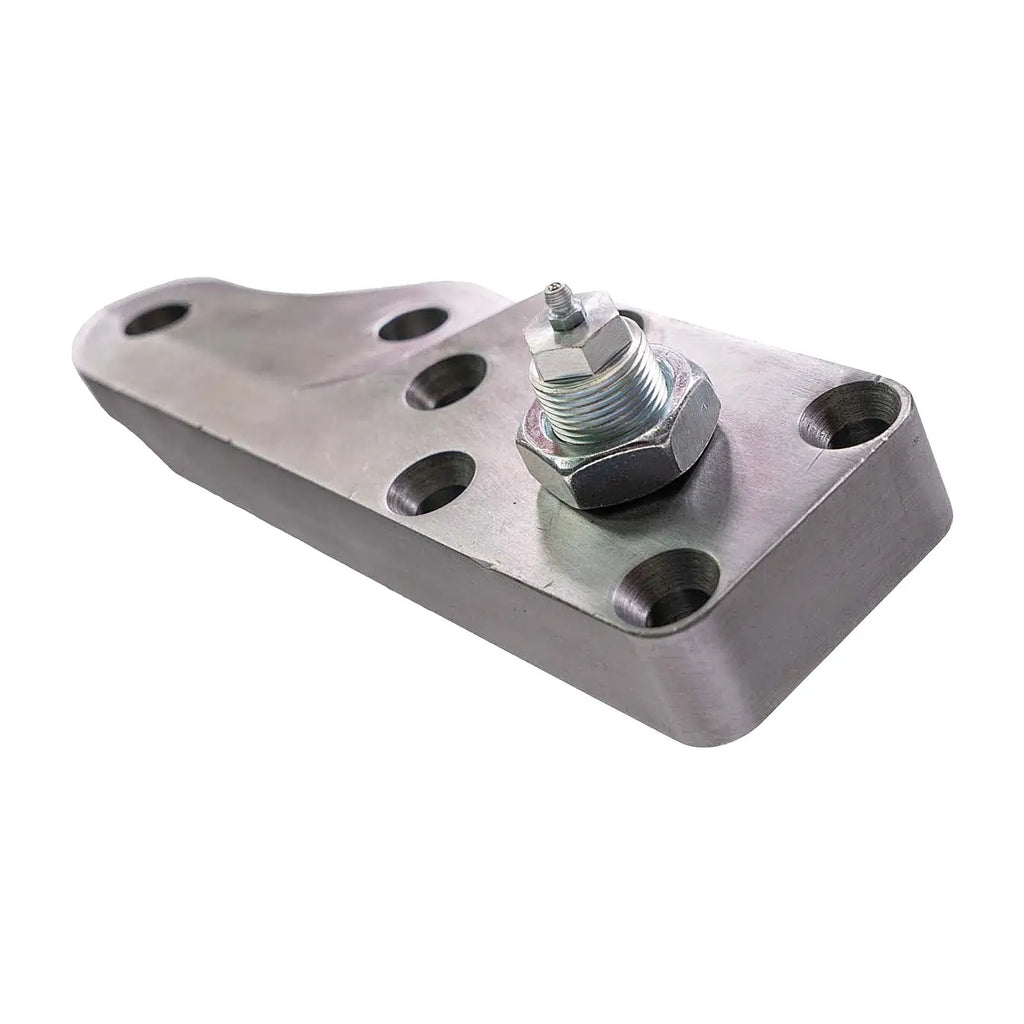

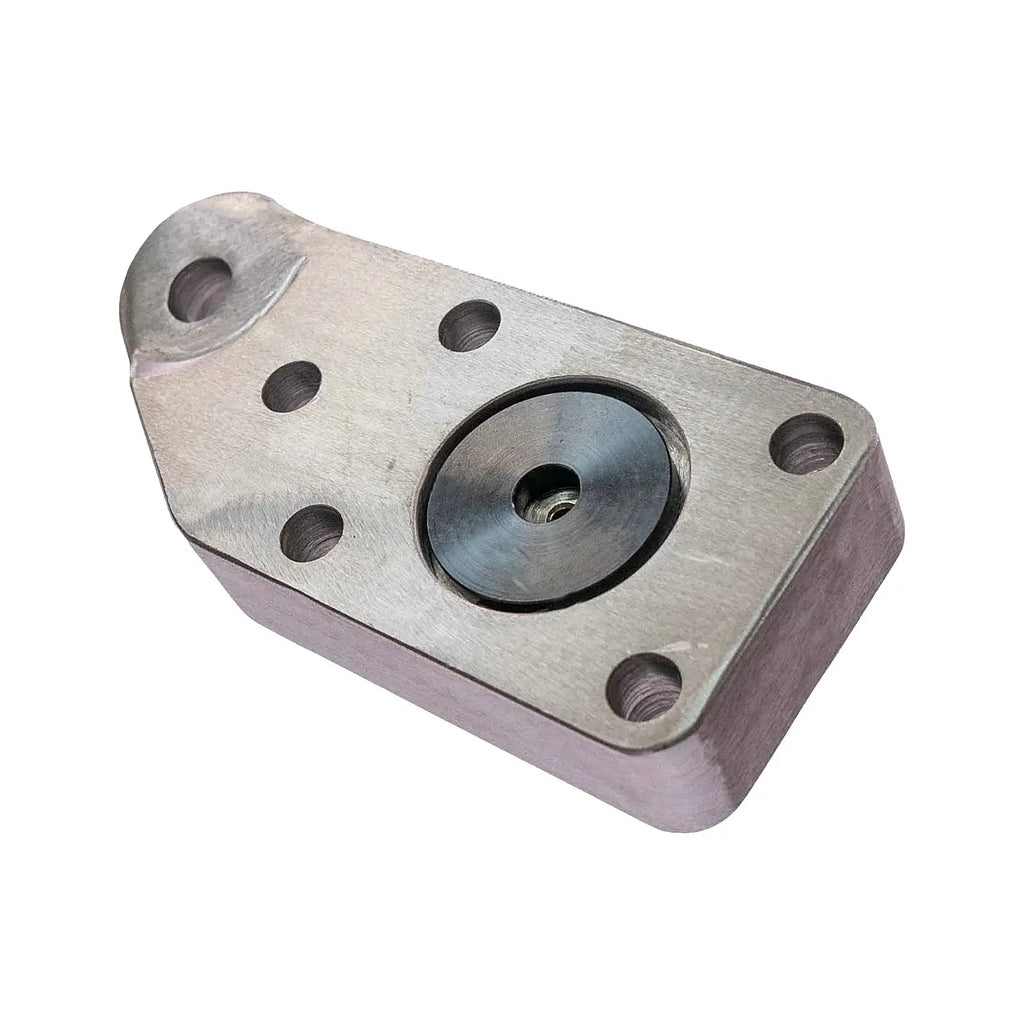

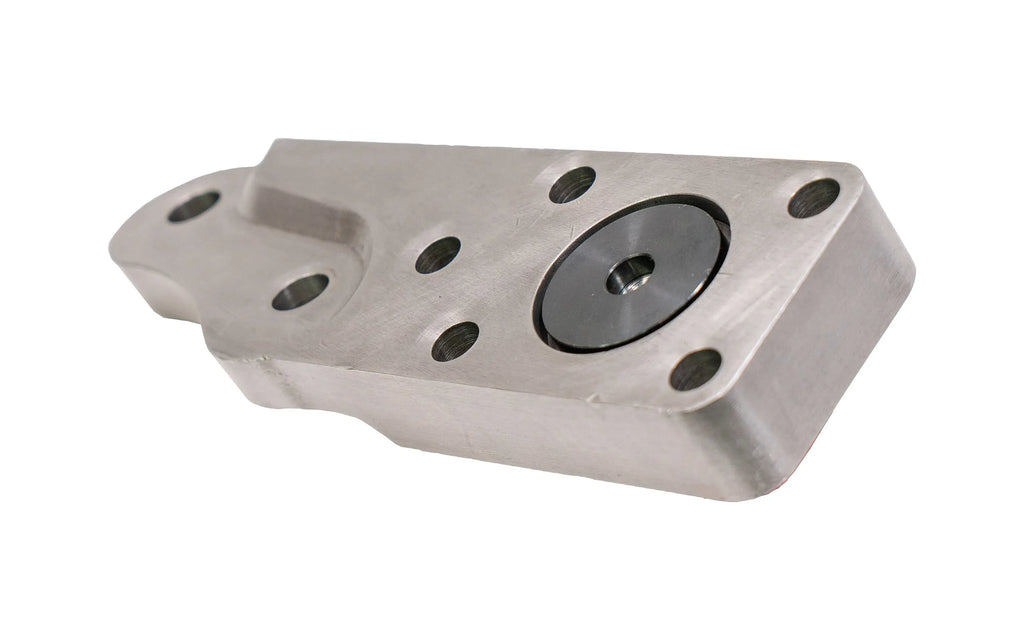

This pair of Dana 60 high steer arms is designed for use with factory 4-stud kingpin knuckles as well as aftermarket knuckles that include a 5th stud. These arms feature a springless preload system using a threaded stud and heavy-duty washer to preload the kingpin bushing, eliminating the stock retention spring. A grease fitting on top of each preload stud allows for easy servicing without disassembly.

Key Features

• Part Number: PN2148
• Fits Dana 60 kingpin front axles
• Compatible with 4-stud and 5-stud knuckles

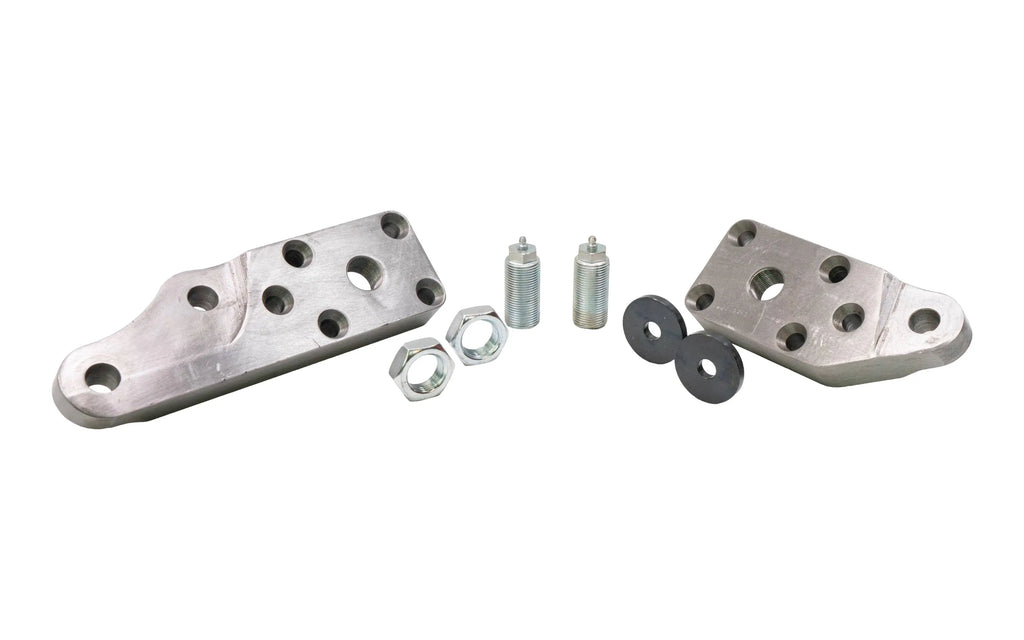

• Springless design with threaded preload studs
• Grease fittings for easy lubrication
• Tie-rod and drag link holes reamed for GM 1-ton TREs
• Can be drilled to 3/4" for heim joints
• Arms drilled to .502" – check stud shoulder diameter

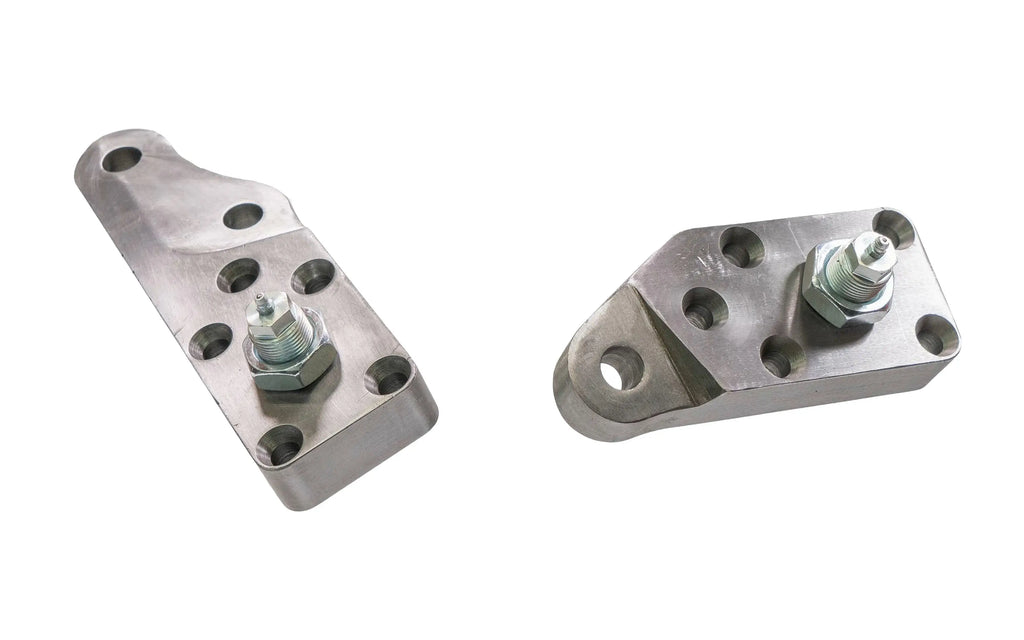

• Sold as a pair (driver and passenger sides)
• OFF ROAD USE ONLY

Note: Factory stud shoulders may be too large. Confirm dimensions before installation.
